Introduction

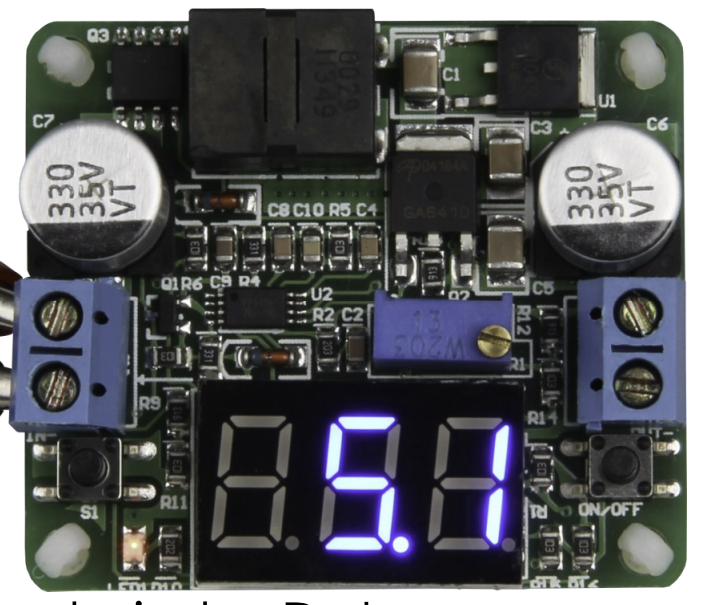

The SBC-BuckBoost01 is a versatile Buck-Boost converter module designed to regulate voltage levels efficiently. It can step up or step down input voltage to provide a stable and adjustable output voltage, making it ideal for applications where input voltage may fluctuate or fall below/above the desired output voltage. This module is widely used in battery-powered devices, portable electronics, and renewable energy systems.

Explore Projects Built with SBC-BuckBoost01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing SBC-BuckBoost01 in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Boost Converter with USB Type-C and BMS
Image of Weird Case: A project utilizing SBC-BuckBoost01 in a practical application
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-S3 Based Vibration Detection System with TFT Display and Power Backup
Image of IOT Thesis: A project utilizing SBC-BuckBoost01 in a practical application
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an ADXL355 accelerometer, an SW-420 vibration sensor, a buzzer module, and an ILI9341 TFT display. The ESP32-S3 manages sensor inputs and provides output to the display and buzzer. Power management is handled by a 12V to 5V step-down converter, and a UPS ensures uninterrupted power supply, with a rocker switch to control the power flow.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing SBC-BuckBoost01 in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SBC-BuckBoost01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Subramanyak_Power_Circuit: A project utilizing SBC-BuckBoost01 in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Weird Case: A project utilizing SBC-BuckBoost01 in a practical application
Battery-Powered Boost Converter with USB Type-C and BMS
This circuit is a power management and conversion system that includes a boost converter, battery management system (BMS), and various MOSFETs and passive components. It is designed to regulate and boost the voltage from a 2000mAh battery, providing stable power output through a USB Type C interface. The circuit also includes protection and switching mechanisms to ensure safe and efficient power delivery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of IOT Thesis: A project utilizing SBC-BuckBoost01 in a practical application
ESP32-S3 Based Vibration Detection System with TFT Display and Power Backup
This circuit features an ESP32-S3 microcontroller connected to various peripherals including an ADXL355 accelerometer, an SW-420 vibration sensor, a buzzer module, and an ILI9341 TFT display. The ESP32-S3 manages sensor inputs and provides output to the display and buzzer. Power management is handled by a 12V to 5V step-down converter, and a UPS ensures uninterrupted power supply, with a rocker switch to control the power flow.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing SBC-BuckBoost01 in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers and sensors from batteries
  • Voltage regulation in solar-powered systems
  • Stabilizing voltage for LED drivers
  • Powering devices with varying input voltage sources (e.g., USB, batteries)

Technical Specifications

The SBC-BuckBoost01 is designed to handle a wide range of input and output voltages, making it suitable for various applications. Below are the key technical details:

Electrical Specifications

Parameter Value
Input Voltage Range 3V to 30V
Output Voltage Range 5V to 35V (adjustable via potentiometer)
Maximum Output Current 4A (with proper heat dissipation)
Efficiency Up to 92%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C

Pin Configuration

The SBC-BuckBoost01 module has four main pins for input and output connections:

Pin Name Description
VIN+ Positive input voltage terminal
VIN- Negative input voltage terminal (GND)
VOUT+ Positive output voltage terminal
VOUT- Negative output voltage terminal (GND)

Usage Instructions

How to Use the SBC-BuckBoost01 in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of your power source to the VIN+ pin.
    • Connect the negative terminal of your power source to the VIN- pin.
  2. Connect the Output Load:

    • Connect the positive terminal of your load to the VOUT+ pin.
    • Connect the negative terminal of your load to the VOUT- pin.
  3. Adjust the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage while adjusting.
  4. Ensure Proper Heat Dissipation:

    • For high-current applications, attach a heatsink to the module to prevent overheating.

Important Considerations

  • Input Voltage Range: Ensure the input voltage is within the specified range (3V to 30V). Exceeding this range may damage the module.
  • Output Voltage Adjustment: Always measure the output voltage with a multimeter before connecting sensitive devices.
  • Current Limitation: Do not exceed the maximum output current of 4A. Use proper cooling for high-power applications.
  • Polarity: Double-check the polarity of your connections to avoid damaging the module.

Example: Using SBC-BuckBoost01 with Arduino UNO

The SBC-BuckBoost01 can be used to power an Arduino UNO from a battery. For example, if you have a 7.4V Li-ion battery, you can step up the voltage to 9V to power the Arduino UNO.

Circuit Diagram

  1. Connect the battery's positive terminal to VIN+ and negative terminal to VIN-.
  2. Adjust the output voltage to 9V using the potentiometer.
  3. Connect VOUT+ to the Arduino's VIN pin and VOUT- to the Arduino's GND pin.

Sample Arduino Code

Here’s a simple code to blink an LED connected to the Arduino UNO:

// Blink an LED connected to pin 13 of the Arduino UNO
// Ensure the SBC-BuckBoost01 is providing a stable 9V to the Arduino

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or polarity.
    • Solution: Double-check all connections and ensure the input voltage is within the specified range.
  2. Output Voltage Fluctuates:

    • Cause: Insufficient input power or unstable input voltage.
    • Solution: Use a stable power source and ensure the input voltage is not dropping under load.
  3. Module Overheats:

    • Cause: Excessive current draw or inadequate cooling.
    • Solution: Attach a heatsink to the module and ensure proper ventilation.
  4. Cannot Adjust Output Voltage:

    • Cause: Faulty potentiometer or incorrect input voltage.
    • Solution: Verify the input voltage and check if the potentiometer is functioning correctly.

FAQs

Q: Can I use the SBC-BuckBoost01 to power a Raspberry Pi?
A: Yes, you can use the module to provide a stable 5V output for the Raspberry Pi. Ensure the input voltage is within the module's range and the output is set to 5V before connecting the Raspberry Pi.

Q: What happens if I reverse the input polarity?
A: The module does not have reverse polarity protection. Reversing the input polarity may permanently damage the module. Always double-check your connections.

Q: Can I use this module with a solar panel?
A: Yes, the SBC-BuckBoost01 is suitable for solar-powered applications. Ensure the solar panel's output voltage is within the module's input range.

Q: How do I calculate the efficiency of the module?
A: Efficiency can be calculated using the formula:
[ \text{Efficiency} (%) = \left( \frac{\text{Output Power}}{\text{Input Power}} \right) \times 100 ]
Measure the input and output voltage and current to calculate power.

By following this documentation, you can effectively use the SBC-BuckBoost01 in your projects and troubleshoot common issues.
