How to Use 16x2 I2C LCD: Examples, Pinouts, and Specs

The 16x2 I2C LCD is a liquid crystal display capable of showing 16 characters per line across 2 lines. It features an integrated I2C (Inter-Integrated Circuit) communication interface, which significantly reduces the number of pins required for connection compared to standard parallel LCDs. This makes it an ideal choice for projects where pin availability is limited or simplicity is desired.

• Displaying sensor readings in real-time
• User interfaces for embedded systems
• Menu systems for microcontroller-based projects
• Educational and prototyping purposes
• Home automation systems

• Display Type: 16x2 character LCD
• Communication Protocol: I2C
• Operating Voltage: 5V DC (typical)
• Backlight: LED (usually white or blue)
• Contrast Adjustment: Via onboard potentiometer
• I2C Address: Typically 0x27 or 0x3F (configurable on some modules)
• Current Consumption: ~20mA (with backlight on)
• Dimensions: ~80mm x 36mm x 12mm

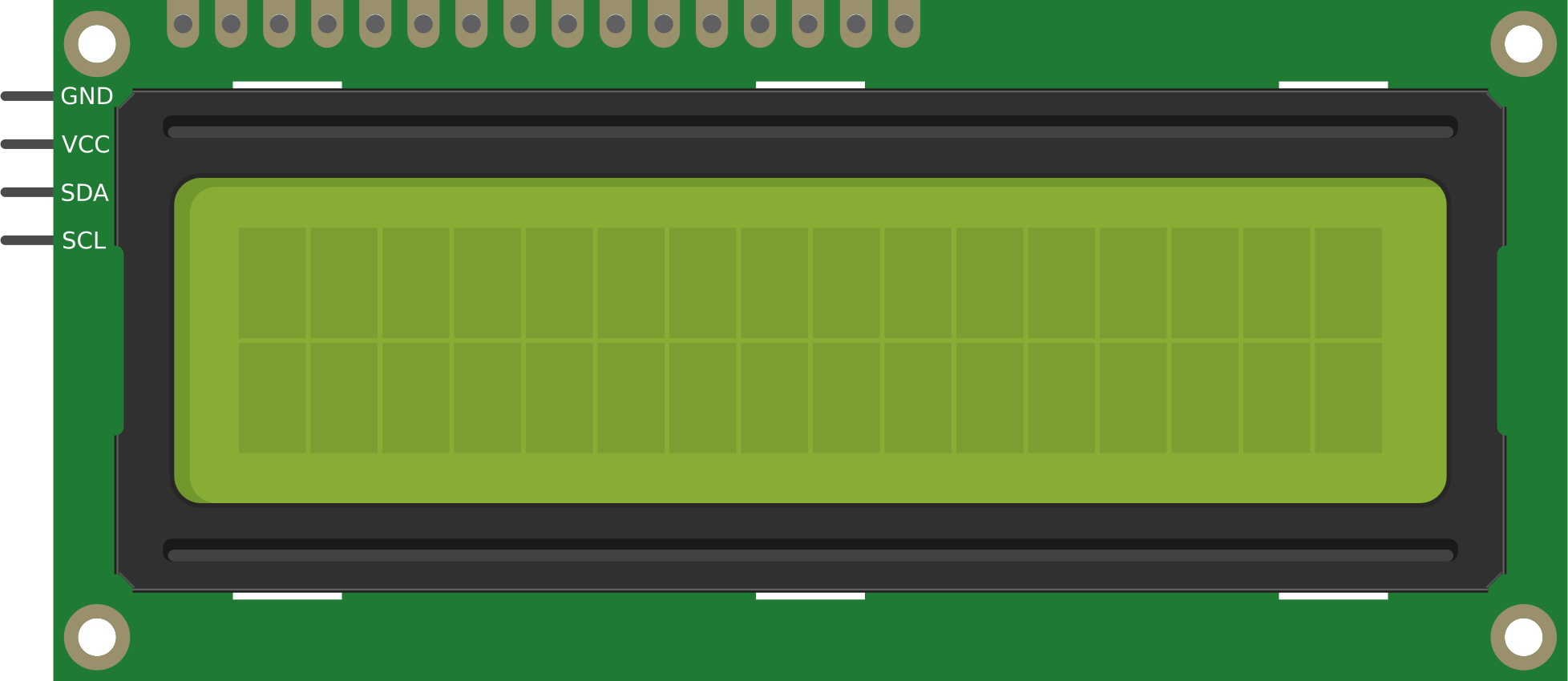

The 16x2 I2C LCD module typically has a 4-pin header for connection:

1. Wiring the LCD:

   • Connect the VCC pin of the LCD to the 5V pin of your microcontroller.
   • Connect the GND pin of the LCD to the ground (GND) of your microcontroller.
   • Connect the SDA pin of the LCD to the SDA pin of your microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin of the LCD to the SCL pin of your microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the Arduino IDE and install the LiquidCrystal_I2C library. To do this:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install the library by Frank de Brabander.

3. Write and Upload Code:

   • Use the example code below to test the LCD.

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Initialize the LCD with I2C address 0x27 and 16x2 dimensions
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.init(); // Initialize the LCD
  lcd.backlight(); // Turn on the backlight
  lcd.setCursor(0, 0); // Set cursor to the first column, first row
  lcd.print("Hello, World!"); // Print a message on the first row
  lcd.setCursor(0, 1); // Set cursor to the first column, second row
  lcd.print("16x2 I2C LCD"); // Print a message on the second row
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: Ensure the I2C address of your LCD matches the one in your code. If the LCD does not respond, use an I2C scanner sketch to detect the correct address.
• Power Supply: Use a stable 5V power source to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: If the text is not visible, adjust the contrast using the potentiometer on the back of the module.
• Backlight Control: Some modules allow you to control the backlight programmatically. Refer to the library documentation for details.

1. No Display or Backlight:

   • Verify all connections are secure and correct.
   • Ensure the power supply is 5V and stable.
   • Check if the backlight jumper or control pin is enabled.

2. Incorrect or No Text Displayed:

   • Confirm the I2C address in the code matches the module's address.
   • Use an I2C scanner sketch to detect the correct address.
   • Ensure the LiquidCrystal_I2C library is installed and properly included.

3. Flickering or Unstable Display:

   • Check for loose connections or poor solder joints.
   • Ensure the power supply can provide sufficient current.

4. Text Not Visible:

   • Adjust the contrast potentiometer on the back of the module.

Q: How do I find the I2C address of my LCD?
A: Use an I2C scanner sketch available online. It will detect and print the address of all connected I2C devices.

Q: Can I use this LCD with a 3.3V microcontroller?
A: Most 16x2 I2C LCD modules require 5V for operation. However, you can use a logic level shifter to interface with 3.3V microcontrollers.

Q: Can I control the backlight programmatically?
A: Some modules support backlight control via software. Check the library documentation or module datasheet for details.

Q: What is the maximum cable length for I2C communication?
A: The maximum length depends on the pull-up resistors and communication speed, but typically it is recommended to keep it under 1 meter for reliable operation.
