Introduction

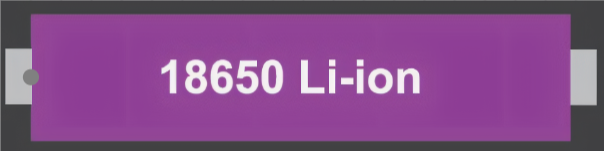

The 18650 Li-ion battery is a rechargeable lithium-ion battery cell with a cylindrical shape, measuring 18mm in diameter and 65mm in length. It is widely recognized for its high energy density, long cycle life, and reliability. These batteries are commonly used in portable electronics, power tools, flashlights, laptops, and electric vehicles. Their versatility and performance make them a popular choice for both consumer and industrial applications.
Technical Specifications
The following table outlines the key technical specifications of a standard 18650 Li-ion battery. Note that specific values may vary depending on the manufacturer and model.
Pin Configuration and Descriptions
The 18650 Li-ion battery has two terminals:
Usage Instructions
How to Use the 18650 Li-ion Battery in a Circuit
- Determine the Voltage and Current Requirements: Ensure the battery's voltage and current ratings match the requirements of your circuit or device.
- Use a Battery Holder: For safety and convenience, use a dedicated 18650 battery holder to secure the battery and provide proper connections.
- Connect the Terminals:
- Connect the positive terminal of the battery to the positive input of your circuit.
- Connect the negative terminal to the ground or negative input of your circuit.
- Include a Protection Circuit: Use a Battery Management System (BMS) or a protection circuit module to prevent overcharging, over-discharging, and short circuits.
- Charging the Battery: Use a dedicated Li-ion battery charger with a constant current/constant voltage (CC/CV) charging profile. Ensure the charger is compatible with the battery's voltage and current ratings.
Important Considerations and Best Practices
- Avoid Overcharging and Over-discharging: Always use a charger with overcharge protection and avoid discharging the battery below its cut-off voltage.
- Temperature Monitoring: Do not use or charge the battery in extreme temperatures, as this can damage the cell and reduce its lifespan.
- Storage: Store the battery in a cool, dry place at around 40%-60% charge for long-term storage.
- Avoid Physical Damage: Do not puncture, crush, or expose the battery to water or fire.
- Parallel and Series Connections: When connecting multiple 18650 batteries in series or parallel, ensure they are of the same capacity, voltage, and charge level to avoid imbalances.
Example: Using an 18650 Battery with an Arduino UNO
To power an Arduino UNO with an 18650 battery, you can use a DC-DC step-up converter to boost the battery's voltage to 5V. Below is an example circuit and code:
Circuit Setup
- Connect the positive terminal of the 18650 battery to the input of the DC-DC step-up converter.
- Connect the negative terminal of the battery to the ground of the converter.
- Adjust the converter's output to 5V using a multimeter.
- Connect the converter's output to the Arduino UNO's VIN and GND pins.
Arduino Code Example
// Example code to blink an LED using Arduino UNO powered by an 18650 battery
const int ledPin = 13; // Pin connected to the onboard LED
void setup() {
pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
Battery Not Charging:
- Ensure the charger is compatible with the 18650 battery.
- Check for loose connections or damaged wires.
- Verify that the battery is not over-discharged (below 2.5V). If so, use a recovery charger.
Battery Drains Quickly:
- Check for excessive current draw in the circuit.
- Ensure the battery is not nearing the end of its cycle life.
- Verify that the battery is fully charged before use.
Battery Overheats:
- Avoid using the battery beyond its maximum discharge current.
- Ensure proper ventilation and avoid charging in high-temperature environments.
Battery Voltage Drops Rapidly:
- This may indicate a damaged or degraded cell. Replace the battery if necessary.
FAQs
Q: Can I use an 18650 battery without a protection circuit?
A: It is not recommended. A protection circuit prevents overcharging, over-discharging, and short circuits, which can damage the battery or cause safety hazards.
Q: How do I know if my 18650 battery is fully charged?
A: A fully charged 18650 battery will have a voltage of approximately 4.2V. Use a multimeter to check the voltage.
Q: Can I connect multiple 18650 batteries together?
A: Yes, but ensure all batteries have the same capacity, voltage, and charge level. Use a Battery Management System (BMS) to balance the cells and ensure safe operation.
Q: How long does an 18650 battery last?
A: The lifespan depends on usage and care. Typically, an 18650 battery lasts for 300-500 charge cycles under normal conditions.
