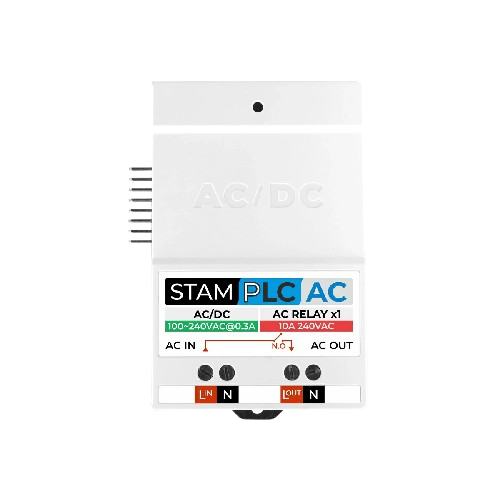

The StamPLC AC/DC Power Supply Module (M5Stack A160) is a compact and efficient power supply solution designed to convert AC voltage to DC voltage. Manufactured by M5Stack, this module provides a stable and reliable power source for a wide range of electronic devices and circuits. Its robust design ensures consistent performance, making it ideal for industrial automation, IoT applications, and prototyping projects.
Explore Projects Built with StamPLC AC/DC Power Supply Module
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
This circuit is a regulated power supply that converts 220V AC to a lower, stable DC voltage. It includes a step-down transformer, bridge rectifier, voltage regulator, and filtering capacitors. A 7-segment display indicates the output voltage, which can be adjusted using a potentiometer.
This circuit is designed to control an AC load using a 5V relay module, which is driven by a RTL8720DN microcontroller. The AC-DC PSU board converts 220V AC to 5V DC to power the microcontroller and the relay module. The microcontroller can switch the relay to turn the connected AC load on or off.
Powering microcontrollers, sensors, and actuators in IoT systems
Industrial automation and control systems
Prototyping and development of electronic circuits
Providing a stable DC power source for embedded systems
Technical Specifications
The StamPLC AC/DC Power Supply Module is designed to meet the needs of modern electronic systems. Below are its key technical details:
General Specifications
Parameter
Value
Manufacturer
M5Stack
Part ID
A160
Input Voltage Range
100-240V AC
Output Voltage
5V DC
Output Current
2A (maximum)
Power Output
10W
Efficiency
≥85%
Operating Temperature
-20°C to 70°C
Dimensions
54mm x 54mm x 20mm
Weight
50g
Pin Configuration and Descriptions
The module features a simple interface for input and output connections:
Pin/Terminal
Description
AC IN (L)
Live wire input for AC voltage
AC IN (N)
Neutral wire input for AC voltage
DC OUT (+)
Positive terminal for DC output
DC OUT (-)
Negative terminal for DC output
GND
Ground connection for safety
Usage Instructions
How to Use the StamPLC AC/DC Power Supply Module
Safety First: Ensure the module is powered off and disconnected from any power source before wiring.
Connect AC Input:
Connect the live wire (L) and neutral wire (N) from the AC power source to the respective terminals on the module.
Ensure proper insulation and secure connections to avoid short circuits.
Connect DC Output:
Connect the positive (+) and negative (-) terminals to the load or circuit requiring 5V DC power.
Verify the polarity to prevent damage to connected devices.
Power On:
Once all connections are secure, supply AC power to the module.
The module will convert the AC input to a stable 5V DC output.
Important Considerations and Best Practices
Voltage Compatibility: Ensure the input voltage is within the specified range (100-240V AC).
Load Requirements: Do not exceed the maximum output current of 2A to prevent overheating or damage.
Heat Dissipation: Install the module in a well-ventilated area to allow proper heat dissipation.
Safety Compliance: Follow local electrical safety standards when wiring the module.
Example: Using with an Arduino UNO
The StamPLC module can be used to power an Arduino UNO. Below is an example setup:
Connect the DC OUT (+) terminal to the Arduino's VIN pin.
Connect the DC OUT (-) terminal to the Arduino's GND pin.
Ensure the AC input is properly connected and insulated.
Here is a simple Arduino sketch to blink an LED while powered by the StamPLC module:
// Blink an LED connected to pin 13 of the Arduino UNO
// Ensure the StamPLC module is providing stable 5V DC to the Arduino
void setup() {
pinMode(13, OUTPUT); // Set pin 13 as an output pin
}
void loop() {
digitalWrite(13, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(13, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Troubleshooting and FAQs
Common Issues and Solutions
No DC Output:
Cause: Incorrect AC input wiring or no AC power supply.
Solution: Verify the AC input connections and ensure the power source is active.
Overheating:
Cause: Exceeding the maximum output current or poor ventilation.
Solution: Reduce the load to within the 2A limit and ensure proper airflow around the module.
Fluctuating Output Voltage:
Cause: Unstable AC input or a faulty module.
Solution: Check the AC input voltage stability and replace the module if necessary.
Arduino Not Powering On:
Cause: Incorrect wiring or insufficient current.
Solution: Verify the connections to the VIN and GND pins and ensure the load does not exceed 2A.
FAQs
Q1: Can the StamPLC module power devices other than Arduino?
A1: Yes, the module can power any device or circuit that requires a stable 5V DC supply and draws less than 2A.
Q2: Is the module suitable for outdoor use?
A2: The module is not weatherproof. Use it in a dry, indoor environment or within a protective enclosure.
Q3: Can I use the module with a 12V DC output?
A3: No, the module is designed to provide a fixed 5V DC output. For 12V applications, consider a different power supply module.
Q4: Does the module have built-in overcurrent protection?
A4: Yes, the module includes basic overcurrent and short-circuit protection, but it is recommended to avoid exceeding the specified limits.
By following this documentation, users can safely and effectively integrate the StamPLC AC/DC Power Supply Module into their projects.
