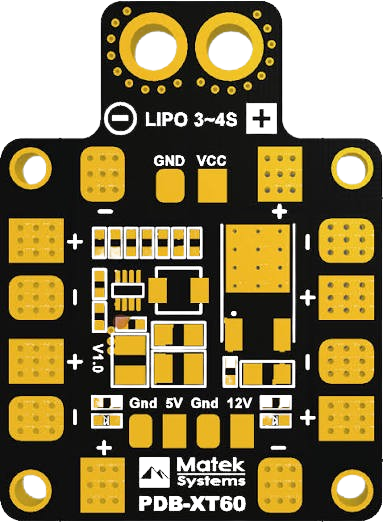

Image of PDB XT60
Cirkit Designer LogoDesign with PDB XT60 in Cirkit Designer

Introduction

The PDB XT60 is a Power Distribution Board designed to efficiently distribute power from a single battery source to multiple electronic components in a circuit. It features an integrated XT60 connector for easy and secure battery connection, making it a popular choice for drones, RC vehicles, and other multi-component electronic systems. The PDB XT60 simplifies wiring, reduces clutter, and ensures reliable power delivery to motors, ESCs (Electronic Speed Controllers), and other peripherals.

Explore Projects Built with PDB XT60

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered FPV Drone with Telemetry and Dual Motor Control
Image of Krul': A project utilizing PDB XT60 in a practical application
This circuit appears to be a power distribution and control system for a vehicle with two motorized wheels, possibly a drone or a robot. It includes a lipo battery connected to a Power Distribution Board (PDB) that distributes power to two Electronic Speed Controllers (ESCs) which in turn control the speed and direction of the motors. The system also integrates a flight controller (H743-SLIM V3) for managing various peripherals including GPS, FPV camera system, and a telemetry link (ExpressLRS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Pixhawk Power Module with Rocker Switch Control
Image of power: A project utilizing PDB XT60 in a practical application
This circuit is designed to power a Pixhawk module using a LiPo battery. The circuit includes a rocker switch to control the power flow from the battery to a power distribution board (PDB), which then supplies 12V to the Pixhawk module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered USB-C PD Trigger with MP1584EN Power Regulation
Image of BatteriLading: A project utilizing PDB XT60 in a practical application
This circuit is a power management system that uses multiple 18650 Li-ion batteries connected in series to provide a stable power output. The batteries are regulated by MP1584EN power regulator boards, which step down the voltage to a suitable level for the connected USB-C PD trigger board and a power jack. The system ensures a consistent power supply for devices connected to the USB-C port and the power jack.
Cirkit Designer LogoOpen Project in Cirkit Designer
Aircraft Tow Release Control System with Dual Battery Backup
Image of Queen Air Tow Release Wiring: A project utilizing PDB XT60 in a practical application
This circuit is designed for a tow release control system in an aircraft, featuring a P68 Tow Control Panel and a Tow Release With Switches assembly. The control panel receives power from two separate aircraft batteries, with one providing main power and the other serving as a backup. The Tow Release With Switches assembly is connected to the control panel, allowing for the actuation of the tow mechanism and providing feedback via an LED indicator.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with PDB XT60

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Krul': A project utilizing PDB XT60 in a practical application
Battery-Powered FPV Drone with Telemetry and Dual Motor Control
This circuit appears to be a power distribution and control system for a vehicle with two motorized wheels, possibly a drone or a robot. It includes a lipo battery connected to a Power Distribution Board (PDB) that distributes power to two Electronic Speed Controllers (ESCs) which in turn control the speed and direction of the motors. The system also integrates a flight controller (H743-SLIM V3) for managing various peripherals including GPS, FPV camera system, and a telemetry link (ExpressLRS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of power: A project utilizing PDB XT60 in a practical application
Battery-Powered Pixhawk Power Module with Rocker Switch Control
This circuit is designed to power a Pixhawk module using a LiPo battery. The circuit includes a rocker switch to control the power flow from the battery to a power distribution board (PDB), which then supplies 12V to the Pixhawk module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BatteriLading: A project utilizing PDB XT60 in a practical application
Battery-Powered USB-C PD Trigger with MP1584EN Power Regulation
This circuit is a power management system that uses multiple 18650 Li-ion batteries connected in series to provide a stable power output. The batteries are regulated by MP1584EN power regulator boards, which step down the voltage to a suitable level for the connected USB-C PD trigger board and a power jack. The system ensures a consistent power supply for devices connected to the USB-C port and the power jack.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Queen Air Tow Release Wiring: A project utilizing PDB XT60 in a practical application
Aircraft Tow Release Control System with Dual Battery Backup
This circuit is designed for a tow release control system in an aircraft, featuring a P68 Tow Control Panel and a Tow Release With Switches assembly. The control panel receives power from two separate aircraft batteries, with one providing main power and the other serving as a backup. The Tow Release With Switches assembly is connected to the control panel, allowing for the actuation of the tow mechanism and providing feedback via an LED indicator.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Multirotor drones (quadcopters, hexacopters, etc.)
  • RC cars, boats, and planes
  • Robotics projects requiring centralized power distribution
  • DIY electronics projects with multiple power-hungry components

Technical Specifications

Key Technical Details

Parameter Specification
Input Voltage Range 7V - 26V (2S to 6S LiPo batteries)
Maximum Current 90A (continuous), 120A (peak)
XT60 Connector Rating 60A continuous, 100A peak
Output Ports 4-8 power output pads
PCB Material 2oz copper, FR4 substrate
Dimensions 36mm x 50mm
Weight ~15g

Pin Configuration and Descriptions

The PDB XT60 typically features the following connections:

Pin/Pad Label Description
XT60 Input Main power input from the battery (XT60 female)
+ (Positive) Positive power output pads for components
- (Negative) Negative (ground) power output pads
ESC Pads Dedicated pads for connecting ESCs
AUX Pads Auxiliary power pads for additional devices

Usage Instructions

How to Use the PDB XT60 in a Circuit

  1. Connect the Battery: Plug the battery into the XT60 connector on the PDB. Ensure the polarity matches (positive to positive, negative to negative).
  2. Connect Components: Solder the power leads of your components (e.g., ESCs, motors, or other devices) to the corresponding output pads on the PDB. Use the labeled positive (+) and negative (-) pads to maintain correct polarity.
  3. Secure the PDB: Mount the PDB securely in your project using screws, standoffs, or double-sided tape to prevent movement during operation.
  4. Test the Connections: Before powering on, double-check all connections for proper soldering and polarity. Use a multimeter to verify continuity and voltage levels.

Important Considerations and Best Practices

  • Heat Management: Ensure proper ventilation or cooling, as the PDB may heat up under high current loads.
  • Soldering Tips: Use a high-quality soldering iron and lead-free solder for reliable connections. Avoid cold solder joints.
  • Short Circuit Protection: Double-check for solder bridges or exposed wires that could cause a short circuit.
  • Battery Compatibility: Use a battery within the specified voltage range (7V-26V). Exceeding this range may damage the PDB or connected components.
  • Fuse or Circuit Breaker: Consider adding a fuse or circuit breaker between the battery and PDB for additional protection.

Example: Connecting the PDB XT60 to an Arduino UNO

While the PDB XT60 is not directly connected to an Arduino UNO, it can power peripherals like motors or sensors that the Arduino controls. Below is an example of how to use the PDB XT60 in a drone project with an Arduino UNO controlling the ESCs.

// Example Arduino code to control an ESC connected to a motor
// Ensure the ESC is powered via the PDB XT60 and connected to the Arduino PWM pin

#include <Servo.h> // Include the Servo library for ESC control

Servo esc; // Create a Servo object to control the ESC

void setup() {
  esc.attach(9); // Attach the ESC signal wire to pin 9 on the Arduino
  esc.writeMicroseconds(1000); // Send minimum throttle signal to arm the ESC
  delay(2000); // Wait for the ESC to initialize
}

void loop() {
  esc.writeMicroseconds(1500); // Set throttle to 50% (adjust as needed)
  delay(5000); // Run the motor for 5 seconds
  esc.writeMicroseconds(1000); // Stop the motor
  delay(2000); // Wait before restarting
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. PDB Overheating

    • Cause: Excessive current draw or poor ventilation.
    • Solution: Ensure the total current draw of connected components does not exceed the PDB's maximum rating. Improve airflow or add a heatsink if necessary.
  2. No Power to Components

    • Cause: Loose or incorrect connections.
    • Solution: Verify all solder joints and connections. Check the battery voltage and ensure it is within the specified range.
  3. Short Circuit Detected

    • Cause: Solder bridges or exposed wires touching each other.
    • Solution: Inspect the PDB for solder bridges or stray wires. Use a multimeter to check for continuity between positive and negative pads.
  4. ESCs Not Responding

    • Cause: Incorrect signal wiring or unarmed ESCs.
    • Solution: Ensure the ESC signal wires are connected to the correct Arduino pins. Follow the ESC's arming procedure.

FAQs

Q: Can I use the PDB XT60 with a 4S LiPo battery?
A: Yes, the PDB XT60 supports 2S to 6S LiPo batteries, including 4S (14.8V nominal).

Q: How many ESCs can I connect to the PDB XT60?
A: The PDB XT60 typically has 4-8 output pads, allowing you to connect up to 4-8 ESCs, depending on the board design.

Q: Is the PDB XT60 compatible with non-XT60 batteries?
A: Yes, but you will need an adapter or solder the battery leads directly to the PDB input pads.

Q: Can I power an Arduino UNO directly from the PDB XT60?
A: No, the PDB XT60 outputs the full battery voltage, which may exceed the Arduino's input voltage range. Use a voltage regulator or a step-down converter to safely power the Arduino.

By following this documentation, you can effectively integrate the PDB XT60 into your projects for reliable and efficient power distribution.
