How to Use Adafruit_LIS331: Examples, Pinouts, and Specs

The Adafruit LIS331 (Manufacturer Part ID: 4626) is a high-performance 3-axis accelerometer designed to measure acceleration in three dimensions. It is capable of detecting both static acceleration (e.g., gravity) and dynamic acceleration (e.g., motion or vibration). The LIS331 is ideal for applications requiring precise motion sensing, such as robotics, wearable devices, gaming peripherals, and industrial equipment. Its compact size and digital output via I2C or SPI interfaces make it versatile and easy to integrate into a variety of projects.

The Adafruit LIS331 offers a range of features and specifications that make it suitable for a wide array of applications. Below are the key technical details:

• Measurement Range: ±2g, ±4g, ±8g (selectable)
• Output Data Rate (ODR): Up to 1 kHz
• Interface: I2C (up to 400 kHz) and SPI (up to 10 MHz)
• Supply Voltage: 2.16V to 3.6V
• Current Consumption: 300 µA (typical in normal mode)
• Operating Temperature: -40°C to +85°C
• Resolution: 12-bit digital output
• Interrupts: Configurable interrupt pins for motion detection

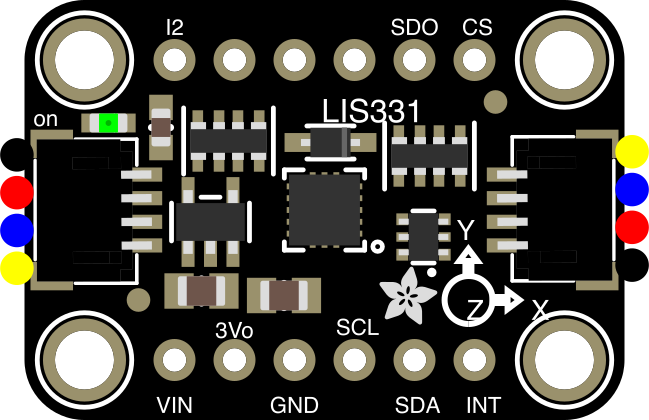

The LIS331 is typically provided in a breakout board format by Adafruit, with the following pinout:

1. Power the Sensor: Connect the VIN pin to a 3.3V or 5V power source and GND to ground.
2. Choose Communication Protocol:
   • For I2C: Connect SDA and SCL to the corresponding pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) if not already present on the breakout board.
   • For SPI: Connect CS, SDO, and other SPI pins to your microcontroller's SPI interface.
3. Set the I2C Address: Use the SDO/SA0 pin to select the I2C address (0x18 or 0x19).
4. Configure the Sensor: Use the appropriate library or write custom code to initialize the sensor, set the measurement range, and configure the output data rate.
5. Read Data: Continuously read acceleration data from the sensor's registers via I2C or SPI.

• Voltage Compatibility: Ensure your microcontroller's logic levels are compatible with the LIS331 (3.3V logic). Use level shifters if necessary.
• Interrupts: Configure the INT1 and INT2 pins for specific events, such as free-fall detection or motion thresholds, to reduce the need for constant polling.
• Mounting: Secure the sensor to minimize vibrations or noise that could affect measurements.
• Filtering: Use software filtering to smooth out noisy data if required.

Below is an example of how to use the Adafruit LIS331 with an Arduino UNO via I2C:

#include <Wire.h>
#include <Adafruit_LIS331.h>

// Create an instance of the LIS331 class
Adafruit_LIS331 lis = Adafruit_LIS331();

void setup() {
  Serial.begin(9600); // Initialize serial communication for debugging
  while (!Serial) delay(10); // Wait for Serial to initialize (for boards like Leonardo)

  // Initialize the LIS331 sensor
  if (!lis.begin()) {
    Serial.println("Failed to find LIS331 sensor! Check connections.");
    while (1); // Halt execution if sensor is not found
  }

  Serial.println("LIS331 sensor initialized!");

  // Set measurement range to ±4g
  lis.setRange(LIS331_RANGE_4_G);

  // Set output data rate to 100 Hz
  lis.setDataRate(LIS331_DATARATE_100_HZ);
}

void loop() {
  // Read acceleration data
  sensors_event_t event;
  lis.getEvent(&event);

  // Print acceleration values
  Serial.print("X: "); Serial.print(event.acceleration.x); Serial.print(" m/s^2 ");
  Serial.print("Y: "); Serial.print(event.acceleration.y); Serial.print(" m/s^2 ");
  Serial.print("Z: "); Serial.print(event.acceleration.z); Serial.println(" m/s^2");

  delay(100); // Delay for readability
}

1. Sensor Not Detected:

   • Ensure the I2C or SPI connections are correct.
   • Verify the I2C address (0x18 or 0x19) matches your configuration.
   • Check for loose wires or poor solder joints.

2. No Data or Incorrect Readings:

   • Confirm the sensor is properly powered (check VIN and GND connections).
   • Verify the measurement range and data rate settings.
   • Ensure the sensor is mounted securely to avoid excessive vibrations.

3. Interrupts Not Triggering:

   • Double-check the interrupt configuration in your code.
   • Verify the INT1/INT2 pins are connected to the correct microcontroller pins.

• Q: Can the LIS331 operate at 5V logic levels?
  A: The LIS331 operates at 3.3V logic levels. Use level shifters if your microcontroller uses 5V logic.

• Q: How do I select between I2C and SPI?
  A: The LIS331 automatically detects the communication protocol based on the connections. For I2C, connect SDA and SCL. For SPI, connect CS, SDO, and other SPI pins.

• Q: What is the default I2C address of the LIS331?
  A: The default I2C address is 0x18. You can change it to 0x19 by connecting the SDO/SA0 pin to VCC.

By following this documentation, you should be able to successfully integrate and use the Adafruit LIS331 in your projects.
