How to Use 18650 Holder 2P: Examples, Pinouts, and Specs

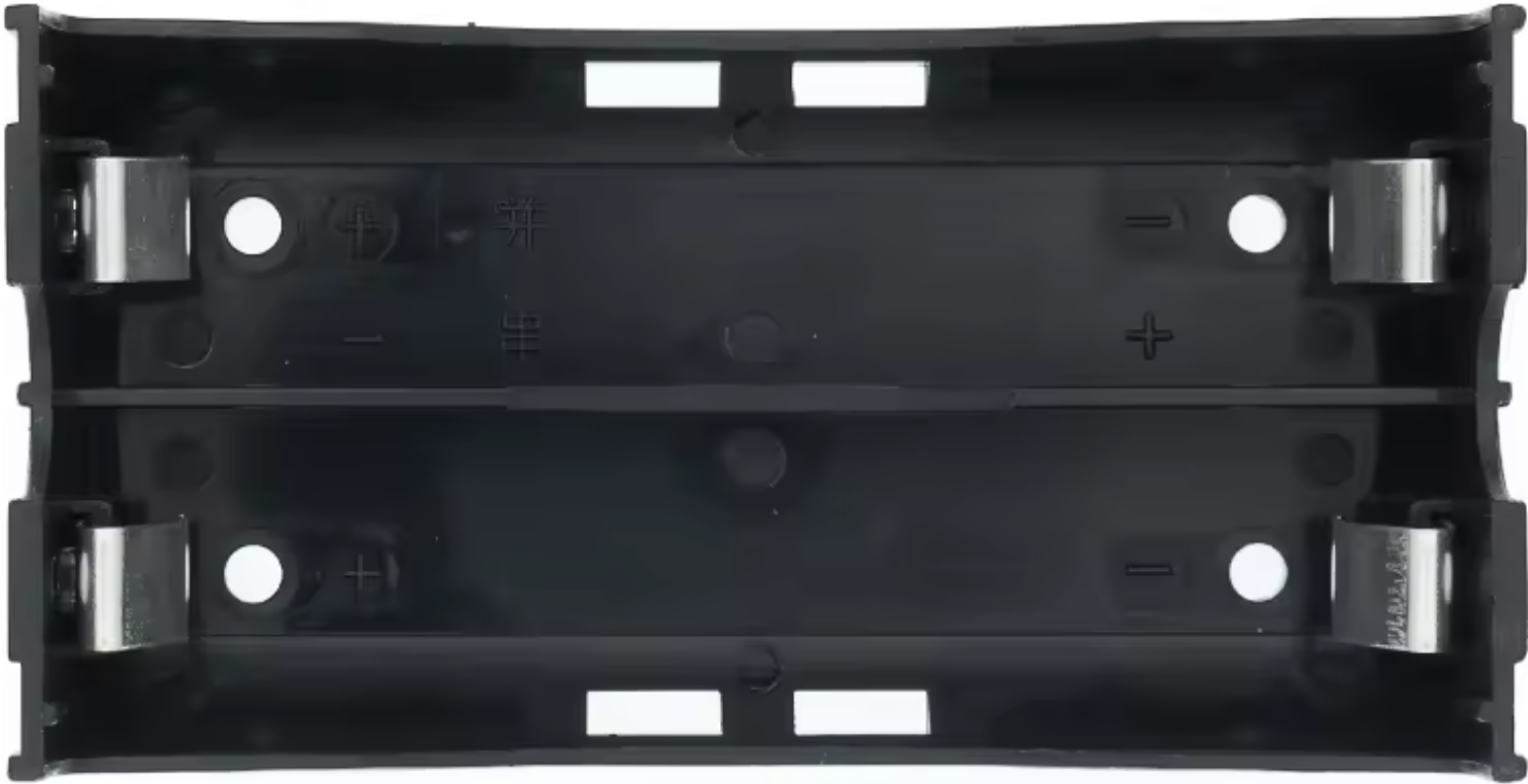

The 18650 Holder 2P is a battery holder designed to securely house two 18650 lithium-ion batteries in a parallel configuration. Manufactured by Generic (Part ID: 2P 18650), this holder provides a convenient and reliable way to integrate 18650 batteries into electronic circuits. It ensures stable power delivery and simplifies battery management in projects requiring a robust power source.

• DIY electronics and prototyping
• Power supply for Arduino, Raspberry Pi, and other microcontrollers
• Portable devices and gadgets
• Robotics and motorized systems
• Emergency lighting and backup power systems

The following table outlines the key technical details of the 18650 Holder 2P:

The 18650 Holder 2P has two wire leads for electrical connections:

1. Insert Batteries: Place two 18650 lithium-ion batteries into the holder, ensuring correct polarity. The positive and negative terminals of the batteries should align with the markings on the holder.
2. Connect to Circuit: Use the pre-soldered wire leads to connect the holder to your circuit:
   • Connect the red wire to the positive input of your circuit.
   • Connect the black wire to the ground or negative input of your circuit.
3. Secure the Holder: Mount the holder using screws or adhesive backing to prevent movement during operation.

• Battery Compatibility: Ensure the 18650 batteries used are unprotected cells or cells that fit snugly in the holder. Protected cells may be too large for some holders.
• Parallel Configuration: Since the batteries are connected in parallel, the voltage remains the same as a single cell (typically 3.7V nominal), but the current capacity is doubled.
• Avoid Overloading: Do not exceed the current rating of the wire leads or the batteries.
• Safety Precautions: Use only high-quality, undamaged batteries. Avoid short circuits, overcharging, or deep discharging of the batteries.

The 18650 Holder 2P can be used to power an Arduino UNO. Below is an example circuit and code to blink an LED using the holder as the power source.

1. Connect the red wire of the holder to the VIN pin of the Arduino UNO.
2. Connect the black wire of the holder to the GND pin of the Arduino UNO.
3. Connect an LED and a 220-ohm resistor to pin 13 of the Arduino UNO.

// Simple LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the 18650 Holder 2P is securely connected to the Arduino's VIN and GND pins.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Power Output

   • Cause: Batteries may be inserted incorrectly or are depleted.
   • Solution: Check the polarity of the batteries and ensure they are fully charged.

2. Loose Connections

   • Cause: Wire leads may not be securely connected to the circuit.
   • Solution: Verify all connections and solder joints for stability.

3. Overheating

   • Cause: Excessive current draw or damaged batteries.
   • Solution: Ensure the circuit does not exceed the current rating of the batteries. Replace damaged batteries immediately.

4. Holder Does Not Fit Batteries

   • Cause: Using protected 18650 cells that are larger than standard dimensions.
   • Solution: Use unprotected cells or verify the holder's compatibility with your batteries.

Q: Can I use this holder for series connections?
A: No, the 18650 Holder 2P is designed for parallel connections only. For series connections, use a holder specifically designed for that purpose.

Q: What is the maximum current this holder can handle?
A: The maximum current depends on the wire gauge (typically 26 AWG) and the batteries used. Ensure the total current draw does not exceed the wire's capacity or the batteries' discharge rating.

Q: Can I charge the batteries while they are in the holder?
A: Yes, but only if you use a proper lithium-ion battery charger designed for parallel charging. Ensure the charger matches the voltage and current requirements of the batteries.

Q: Is the holder waterproof?
A: No, the 18650 Holder 2P is not waterproof. Use it in dry environments or enclose it in a waterproof casing if necessary.

This concludes the documentation for the 18650 Holder 2P.
