How to Use Li-Po Battery 3S 11.1V: Examples, Pinouts, and Specs

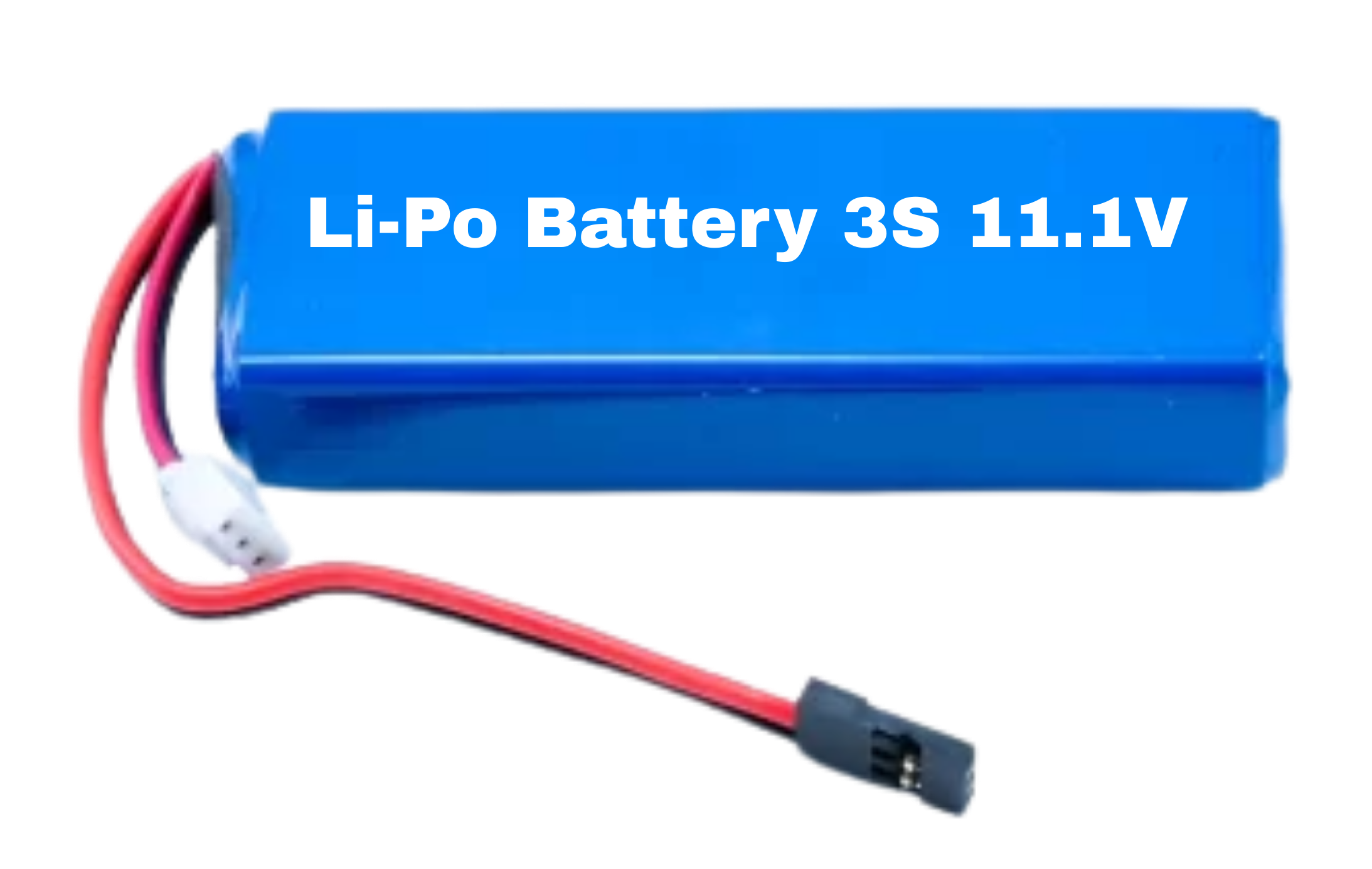

Image of Li-Po Battery 3S 11.1VDesign with Li-Po Battery 3S 11.1V in Cirkit Designer

Introduction

The Li-Po Battery 3S 11.1V (Manufacturer: Arduino, Part ID: UNO) is a lithium polymer battery consisting of three cells connected in series. It provides a nominal voltage of 11.1V and is widely recognized for its high energy density, lightweight design, and compact form factor. This battery is commonly used in applications requiring reliable and portable power, such as RC vehicles, drones, and portable electronics.

Explore Projects Built with Li-Po Battery 3S 11.1V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator: A project utilizing Li-Po Battery 3S 11.1V in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator

This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.

Open Project in Cirkit Designer

Common Applications:

Technical Specifications

The following table outlines the key technical details of the Li-Po Battery 3S 11.1V:

Parameter Specification
Nominal Voltage 11.1V (3.7V per cell, 3 cells in series)
Maximum Voltage 12.6V (4.2V per cell, fully charged)
Minimum Voltage 9.0V (3.0V per cell, discharged)
Capacity Varies (e.g., 1000mAh, 2200mAh, etc.)
Discharge Rate (C-Rating) Typically 20C to 50C
Connector Type XT60, JST, or similar
Weight Varies based on capacity
Dimensions Varies based on capacity
Chemistry Lithium Polymer (Li-Po)

Pin Configuration and Descriptions

The Li-Po Battery 3S 11.1V typically includes two connectors: a main power connector and a balance connector. The pin configuration is as follows:

Main Power Connector (e.g., XT60):

Pin Description
+ Positive terminal
- Negative terminal

Balance Connector (e.g., JST-XH):

Pin Description
1 Cell 1 positive terminal (3.7V)
2 Cell 2 positive terminal (7.4V)
3 Cell 3 positive terminal (11.1V)
4 Common ground (0V)

Usage Instructions

How to Use the Li-Po Battery in a Circuit

  1. Connect the Main Power Connector:

    • Use the main power connector (e.g., XT60) to supply power to your circuit or device.
    • Ensure the polarity matches the input terminals of your device to avoid damage.
  2. Balance Charging:

    • Always use a Li-Po balance charger to charge the battery. This ensures all cells are charged evenly, preventing overcharging or undercharging.
    • Connect the balance connector to the charger’s balance port.
  3. Voltage Monitoring:

    • Use a voltage alarm or a battery management system (BMS) to monitor the voltage of each cell. This prevents over-discharge, which can damage the battery.
  4. Mounting:

    • Secure the battery in your device using a battery strap or holder to prevent movement during operation.

Important Considerations and Best Practices

Example: Using the Li-Po Battery with an Arduino UNO

The Li-Po Battery 3S 11.1V can be used to power an Arduino UNO via its VIN pin. Below is an example circuit and code to read the battery voltage using an analog pin:

Circuit:

  1. Connect the battery’s positive terminal to the VIN pin of the Arduino UNO.
  2. Connect the battery’s negative terminal to the GND pin of the Arduino UNO.
  3. Use a voltage divider circuit to step down the battery voltage to a safe level (below 5V) for the Arduino’s analog input.

Code:

// Define analog pin for voltage measurement
const int voltagePin = A0;

// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive
const float R2 = 10000.0; // Resistor connected to ground

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the voltage divider
  int analogValue = analogRead(voltagePin);

  // Convert the analog value to voltage
  float voltage = (analogValue * 5.0 / 1023.0) * ((R1 + R2) / R2);

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Battery Not Charging:

    • Cause: Faulty charger or damaged balance connector.
    • Solution: Check the charger and connectors for damage. Ensure the charger is set to the correct Li-Po mode.
  2. Battery Swelling:

    • Cause: Overcharging, over-discharging, or physical damage.
    • Solution: Stop using the battery immediately. Dispose of it safely following local regulations.
  3. Device Not Powering On:

    • Cause: Low battery voltage or incorrect wiring.
    • Solution: Check the battery voltage with a multimeter. Ensure proper polarity and secure connections.
  4. Uneven Cell Voltages:

    • Cause: Imbalanced charging or aging cells.
    • Solution: Use a balance charger to equalize the cell voltages.

FAQs

Q1: Can I use the Li-Po Battery 3S 11.1V with a 12V device?
A1: Yes, but ensure the device can handle the voltage range (9.0V to 12.6V). Use a voltage regulator if necessary.

Q2: How long does the battery last?
A2: Battery life depends on the capacity (mAh) and the load. For example, a 2200mAh battery can supply 2.2A for approximately 1 hour.

Q3: Is it safe to leave the battery connected to the charger?
A3: No, always disconnect the battery once charging is complete to prevent overcharging.

Q4: Can I use this battery in parallel with another Li-Po battery?
A4: Yes, but ensure both batteries have the same voltage and capacity. Use a parallel connector for safe operation.
