How to Use Relay 5v 1 channel: Examples, Pinouts, and Specs

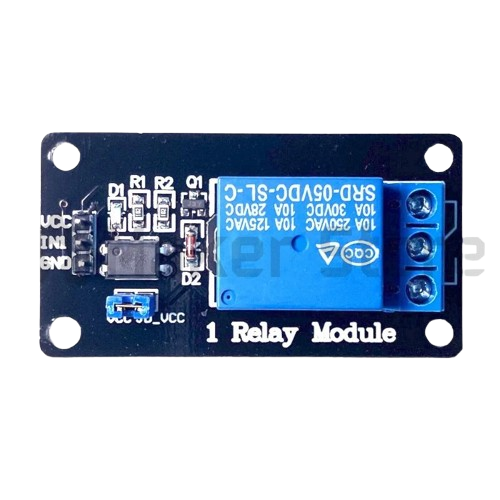

Image of Relay 5v 1 channelDesign with Relay 5v 1 channel in Cirkit Designer

Introduction

The Relay 5V 1 Channel is an electromechanical switch that operates at a 5V input signal, enabling the control of high-voltage devices using a low-voltage signal. This relay module is widely used in automation, home appliances, and DIY electronics projects. It is particularly suitable for applications requiring simple on/off control, such as controlling lights, fans, or other high-power devices.

Explore Projects Built with Relay 5v 1 channel

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications and Use Cases

Technical Specifications

The following table outlines the key technical details of the Relay 5V 1 Channel module:

Parameter Specification
Operating Voltage 5V DC
Trigger Voltage 3.3V to 5V DC
Maximum Load Voltage 250V AC / 30V DC
Maximum Load Current 10A
Channels 1
Relay Type SPDT (Single Pole Double Throw)
Isolation Optocoupler isolation for safety
Dimensions ~50mm x 26mm x 18mm
Indicator LED Yes (indicates relay activation)

Pin Configuration and Descriptions

The Relay 5V 1 Channel module has the following pin configuration:

Input Pins (Low Voltage Side)

Pin Name Description
1 VCC Connect to 5V DC power supply.
2 GND Connect to ground.
3 IN Control signal input. A HIGH signal activates the relay, and a LOW signal deactivates it.

Output Terminals (High Voltage Side)

Terminal Name Description
1 COM Common terminal. Connect to the load or power source.
2 NO Normally Open terminal. Connect to the load for default OFF state.
3 NC Normally Closed terminal. Connect to the load for default ON state.

Usage Instructions

How to Use the Relay in a Circuit

  1. Power the Relay Module:

    • Connect the VCC pin to a 5V DC power supply.
    • Connect the GND pin to the ground of your circuit.
  2. Control Signal:

    • Connect the IN pin to a microcontroller (e.g., Arduino UNO) or any other control circuit.
    • A HIGH signal (3.3V to 5V) on the IN pin will activate the relay, switching the connected load.
  3. Connect the Load:

    • Identify whether you want the load to be normally ON or OFF.
    • For a normally OFF state, connect the load between COM and NO.
    • For a normally ON state, connect the load between COM and NC.
  4. Safety Precautions:

    • Ensure the load voltage and current do not exceed the relay's maximum ratings (250V AC / 30V DC, 10A).
    • Use proper insulation and avoid touching the high-voltage side while the relay is powered.

Example: Connecting to an Arduino UNO

Below is an example of how to control the Relay 5V 1 Channel using an Arduino UNO:

Circuit Connections

Arduino Code

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off at startup
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

Important Considerations and Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. Relay Not Activating:

    • Cause: Insufficient control signal voltage.
    • Solution: Ensure the IN pin receives a signal between 3.3V and 5V.
  2. Load Not Switching:

    • Cause: Incorrect wiring of the load to the relay terminals.
    • Solution: Verify the load is connected to the correct terminals (COM, NO, or NC).
  3. Relay Stuck in ON/OFF State:

    • Cause: Faulty relay or excessive load current.
    • Solution: Check the load current and replace the relay if necessary.
  4. Indicator LED Not Lighting Up:

    • Cause: No power to the relay module.
    • Solution: Ensure the VCC and GND pins are properly connected to a 5V power source.

FAQs

This concludes the documentation for the Relay 5V 1 Channel. Follow the guidelines and best practices to ensure safe and effective operation!
