How to Use DB25: Examples, Pinouts, and Specs

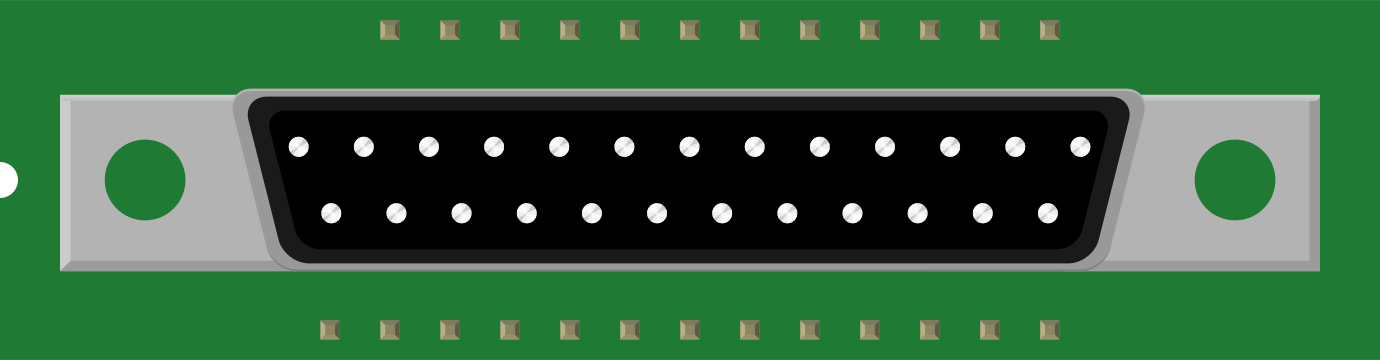

Image of DB25
Cirkit Designer LogoDesign with DB25 in Cirkit Designer

Introduction

The DB25 is a 25-pin D-subminiature connector widely used for parallel and serial communication. It is part of the D-sub connector family, characterized by its D-shaped metal shield that provides mechanical support and electromagnetic interference (EMI) protection. The DB25 connector was historically used in computer interfaces, such as parallel ports for printers and serial ports for communication devices. While its usage has declined with the advent of USB and other modern interfaces, it remains relevant in legacy systems, industrial equipment, and specialized applications.

Explore Projects Built with DB25

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
FTDI to UART Adapter with J26 Connector
Image of J26 CLOSEUP: A project utilizing DB25 in a practical application
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Industrial Control System with RS485 Communication and I2C Interface
Image of DRIVER TESTER : A project utilizing DB25 in a practical application
This circuit integrates a microcontroller with a display, digital potentiometer, IO expander, and opto-isolator board for signal interfacing and isolation. It includes a UART to RS485 converter for serial communication and a power converter to step down voltage for the system. The circuit is designed for control and communication in an isolated and protected environment.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
Image of Load Cell Circuit: A project utilizing DB25 in a practical application
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Dual Relay Module
Image of ESP32 bluethooth with relay: A project utilizing DB25 in a practical application
This circuit features an ESP32 microcontroller connected to a two-channel relay module. The ESP32's digital pins D25 and D26 are used to control the relay channels IN1 and IN2, respectively, allowing the microcontroller to switch external circuits on and off. The ESP32 and the relay module share a common ground and the ESP32's Vin pin supplies power to the relay's VCC, indicating that both operate at compatible voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DB25

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of J26 CLOSEUP: A project utilizing DB25 in a practical application
FTDI to UART Adapter with J26 Connector
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of DRIVER TESTER : A project utilizing DB25 in a practical application
ESP32-Based Industrial Control System with RS485 Communication and I2C Interface
This circuit integrates a microcontroller with a display, digital potentiometer, IO expander, and opto-isolator board for signal interfacing and isolation. It includes a UART to RS485 converter for serial communication and a power converter to step down voltage for the system. The circuit is designed for control and communication in an isolated and protected environment.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Load Cell Circuit: A project utilizing DB25 in a practical application
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 bluethooth with relay: A project utilizing DB25 in a practical application
ESP32-Controlled Dual Relay Module
This circuit features an ESP32 microcontroller connected to a two-channel relay module. The ESP32's digital pins D25 and D26 are used to control the relay channels IN1 and IN2, respectively, allowing the microcontroller to switch external circuits on and off. The ESP32 and the relay module share a common ground and the ESP32's Vin pin supplies power to the relay's VCC, indicating that both operate at compatible voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Parallel communication (e.g., printer connections)
  • Serial communication (RS-232 standard)
  • Industrial control systems
  • Test and measurement equipment
  • Audio and video equipment (in some cases)

Technical Specifications

Key Technical Details

  • Connector Type: D-subminiature, 25-pin
  • Pin Count: 25
  • Gender: Male or Female (depending on the application)
  • Mounting Style: Panel mount or cable mount
  • Contact Material: Gold or tin-plated contacts for durability and conductivity
  • Current Rating: Typically 5A per pin (varies by manufacturer)
  • Voltage Rating: Up to 300V (varies by manufacturer)
  • Operating Temperature: -55°C to +105°C (typical range)

Pin Configuration and Descriptions

The DB25 connector can be used for both parallel and serial communication. Below are the pin configurations for each use case:

Parallel Communication (IEEE 1284 Standard)

Pin Number Signal Name Description
1 Strobe Data strobe signal
2-9 Data 0-7 8-bit parallel data lines
10 Acknowledge Acknowledgment from the peripheral
11 Busy Indicates the peripheral is busy
12 Paper End Indicates paper is out (printers)
13 Select Peripheral is selected
14 Auto Feed Auto-feed signal
15 Error Indicates an error condition
16 Initialize Initializes the peripheral
17 Select In Select input signal
18-25 Ground Signal ground

Serial Communication (RS-232 Standard)

Pin Number Signal Name Description
1 Shield Ground Shield connection for EMI protection
2 Transmit Data (TX) Data sent from the device
3 Receive Data (RX) Data received by the device
4 Data Terminal Ready (DTR) Indicates device is ready
5 Signal Ground Common ground for signals
6 Data Set Ready (DSR) Indicates readiness of the other end
7 Request to Send (RTS) Flow control signal
8 Clear to Send (CTS) Flow control acknowledgment
9 Ring Indicator (RI) Indicates incoming call (modems)
10-25 Reserved or Ground Varies by implementation

Usage Instructions

How to Use the DB25 in a Circuit

  1. Identify the Application: Determine whether the DB25 will be used for parallel or serial communication.
  2. Select the Correct Cable: Use a DB25 cable with the appropriate pinout for your application (straight-through or crossover).
  3. Connect to the Device: Securely connect the DB25 connector to the corresponding port on your device. Ensure the connector is properly aligned to avoid damaging the pins.
  4. Wiring: If using a panel-mount DB25, solder or crimp the wires to the appropriate pins based on the pinout table above.
  5. Test the Connection: Verify the connection using a multimeter or communication test software.

Important Considerations

  • Pinout Verification: Always double-check the pinout for your specific application to avoid miswiring.
  • Shielding: Use shielded cables to minimize EMI in noisy environments.
  • Legacy Systems: Ensure compatibility with legacy devices, as modern systems may not natively support DB25 connectors.
  • Adapters: If connecting to modern equipment, consider using DB25-to-USB or DB25-to-RJ45 adapters.

Example: Connecting DB25 to Arduino UNO

While the DB25 is not directly compatible with Arduino, it can be used for communication with legacy devices. Below is an example of using an Arduino UNO to send data through a DB25 connector configured for RS-232 communication:

// Example: Sending data through DB25 (RS-232) using Arduino UNO
// Note: Use a MAX232 IC for voltage level conversion between Arduino and RS-232

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
const int rxPin = 10; // Connect to DB25 pin 3 (RX)
const int txPin = 11; // Connect to DB25 pin 2 (TX)

// Initialize SoftwareSerial
SoftwareSerial db25Serial(rxPin, txPin);

void setup() {
  // Start serial communication with DB25 device
  db25Serial.begin(9600); // Set baud rate to 9600
  Serial.begin(9600);     // For debugging via Serial Monitor

  Serial.println("DB25 Communication Initialized");
}

void loop() {
  // Send data to DB25 device
  db25Serial.println("Hello, DB25!");

  // Check for incoming data from DB25 device
  if (db25Serial.available()) {
    String receivedData = db25Serial.readString();
    Serial.print("Received: ");
    Serial.println(receivedData);
  }

  delay(1000); // Wait 1 second before sending again
}

Note: The MAX232 IC is required to convert Arduino's TTL voltage levels (0-5V) to RS-232 voltage levels (-12V to +12V).

Troubleshooting and FAQs

Common Issues

  1. No Communication:

    • Cause: Incorrect pinout or wiring.
    • Solution: Verify the pinout and ensure proper connections.
  2. Data Corruption:

    • Cause: Mismatched baud rate or EMI interference.
    • Solution: Ensure both devices use the same baud rate and use shielded cables.
  3. Loose Connection:

    • Cause: Poorly seated connector or damaged pins.
    • Solution: Inspect the connector and ensure it is securely fastened.
  4. Incompatible Devices:

    • Cause: Modern devices may not support DB25 natively.
    • Solution: Use appropriate adapters or converters.

FAQs

  • Q: Can I use a DB25 connector for modern devices?

    • A: Yes, but you may need adapters (e.g., DB25-to-USB) for compatibility.
  • Q: What is the difference between male and female DB25 connectors?

    • A: Male connectors have pins, while female connectors have sockets. Ensure you use the correct type for your application.
  • Q: How do I identify the pin numbers on a DB25 connector?

    • A: Pin numbers are typically labeled on the connector or can be identified using a pinout diagram.
  • Q: Can I use a DB25 connector for power transmission?

    • A: While possible, it is not recommended due to the connector's primary design for signal transmission. Always check the current and voltage ratings.
