How to Use Red LED - 5mm: Examples, Pinouts, and Specs

The 5mm Red LED (Light-Emitting Diode) is a widely used electronic component that emits red light when an electric current flows through it. It is a compact, energy-efficient, and durable light source, making it ideal for a variety of applications. This LED is commonly used as an indicator in electronic devices, status displays, and decorative lighting.

• Power and status indicators in electronic devices
• Signal and warning lights
• DIY electronics and hobby projects
• Decorative and ambient lighting
• Educational projects for learning basic electronics

Below are the key technical details of the 5mm Red LED:

The 5mm Red LED has two pins, as described below:

1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with it. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

   • ( V_{supply} ) is the supply voltage.
   • ( V_f ) is the forward voltage of the LED (1.8V to 2.2V).
   • ( I_f ) is the desired forward current (typically 20mA).

   For example, if ( V_{supply} = 5V ), ( V_f = 2V ), and ( I_f = 20mA ): [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (+) to the positive voltage through the resistor.
   • Connect the cathode (-) to ground.

3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit red light when current flows through it.

• Polarity: Ensure the correct orientation of the LED. Reversing the polarity may damage the component.
• Current Limiting: Always use a resistor to limit the current and prevent overheating or damage.
• Brightness Control: To adjust brightness, vary the resistor value or use pulse-width modulation (PWM).

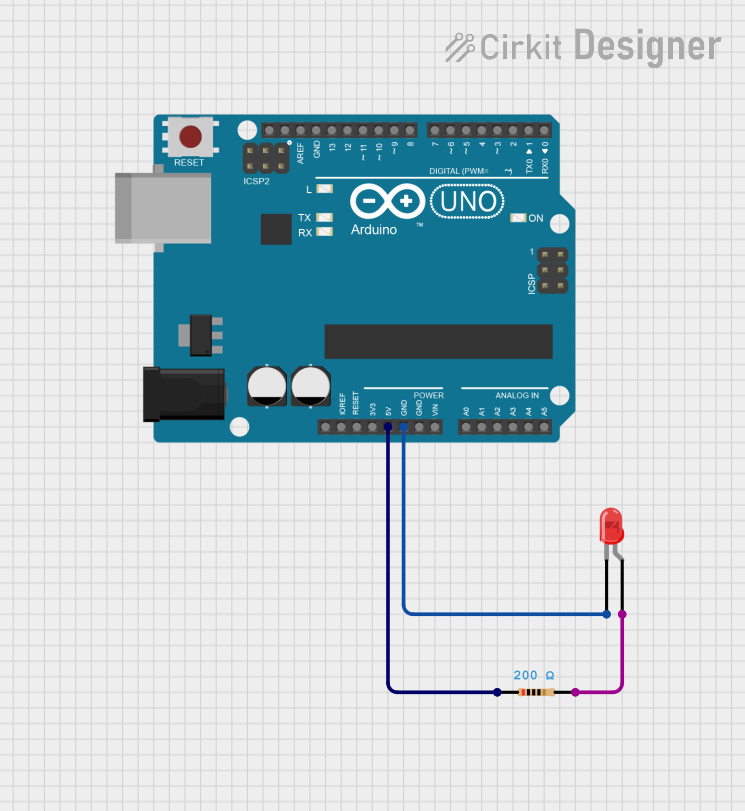

The 5mm Red LED can be easily interfaced with an Arduino UNO for various projects. Below is an example of how to blink the LED:

• Connect the anode (+) of the LED to Arduino digital pin 13 through a 220Ω resistor.
• Connect the cathode (-) to the Arduino GND pin.

// Blink a 5mm Red LED using Arduino UNO
// Connect the LED anode (+) to pin 13 through a 220Ω resistor
// Connect the LED cathode (-) to GND

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.

   • Solution: Ensure the anode (+) is connected to the positive voltage and the cathode (-) to ground.

   • Cause: No current-limiting resistor or incorrect resistor value.

   • Solution: Use a resistor with the correct value (e.g., 150Ω for a 5V supply).

2. LED is Dim:

   • Cause: Resistor value too high.
   • Solution: Use a lower resistor value, but ensure the current does not exceed 20mA.

3. LED Burns Out:

   • Cause: Excessive current due to no resistor or incorrect resistor value.
   • Solution: Always use a resistor to limit the current.

4. Flickering LED:

   • Cause: Unstable power supply or loose connections.
   • Solution: Check the power source and ensure all connections are secure.

Q1: Can I connect the LED directly to a 5V power supply?
A1: No, you must use a current-limiting resistor to prevent excessive current, which can damage the LED.

Q2: What happens if I reverse the polarity of the LED?
A2: The LED will not light up. Prolonged reverse voltage may damage the LED.

Q3: Can I use the LED with a 3.3V power supply?
A3: Yes, but you still need a current-limiting resistor. Calculate the resistor value based on the supply voltage and forward voltage.

Q4: How do I control the brightness of the LED?
A4: You can adjust the brightness by changing the resistor value or using PWM with a microcontroller like Arduino.

This concludes the documentation for the 5mm Red LED.
