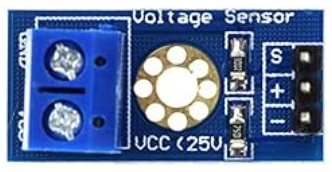

Image of 3.3V VOLTAGE DETECTOR
Cirkit Designer LogoDesign with 3.3V VOLTAGE DETECTOR in Cirkit Designer

Introduction

The 3.3V Voltage Detector is a compact and reliable device designed to monitor the voltage level of a circuit. It triggers an alert or action when the voltage drops below or exceeds the 3.3V threshold, ensuring the proper operation of sensitive electronic components. This component is widely used in power management systems, battery-operated devices, and microcontroller-based circuits to prevent undervoltage or overvoltage conditions.
