How to Use sd card module: Examples, Pinouts, and Specs

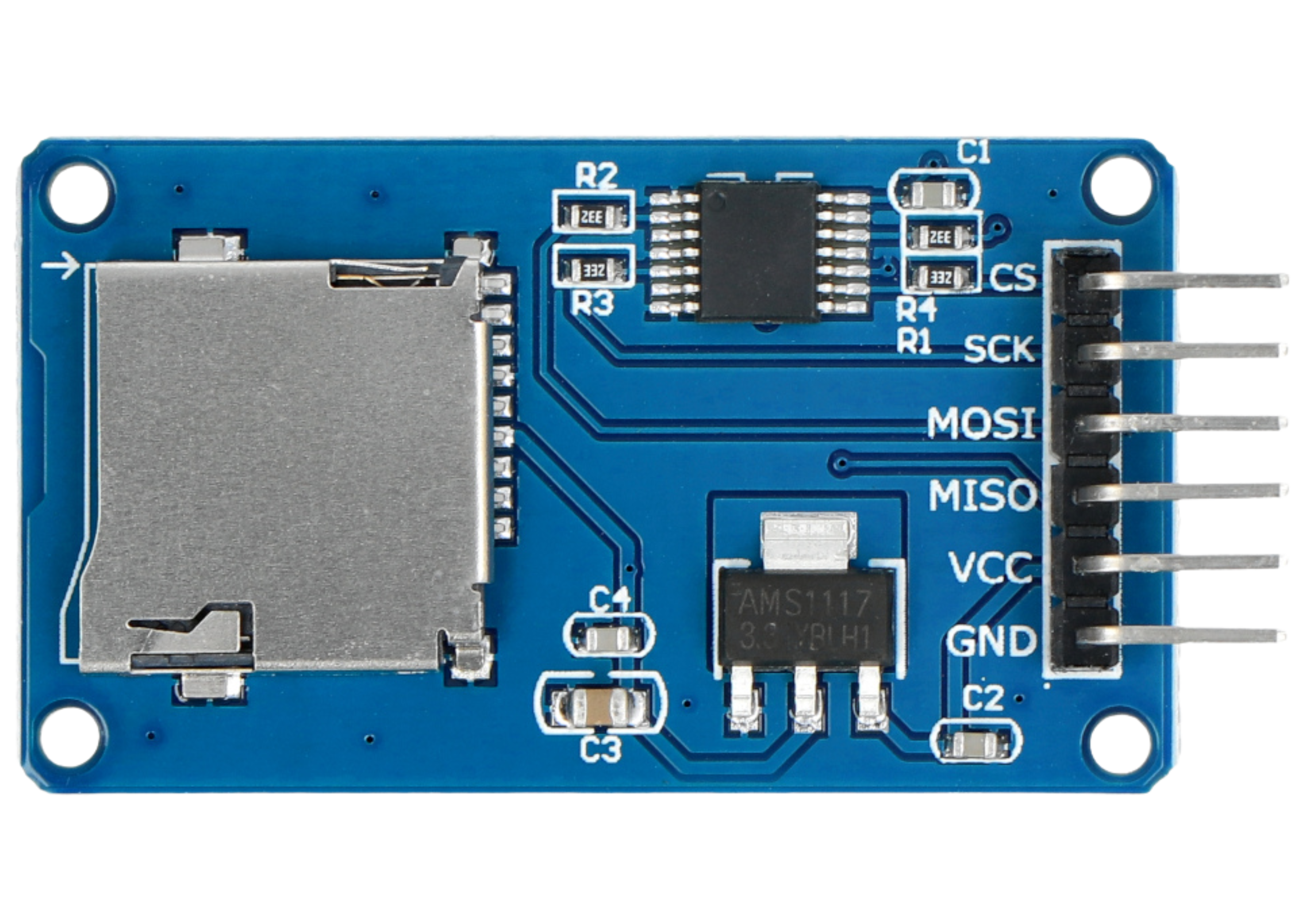

The SD Card Module is a compact and versatile component designed to interface SD cards with microcontrollers. It enables the storage and retrieval of data, making it ideal for applications requiring large amounts of non-volatile memory. This module is commonly used in data logging, multimedia storage, and file management systems. Its ease of use and compatibility with popular microcontrollers like Arduino make it a staple in many electronics projects.

• Data logging (e.g., temperature, humidity, or sensor data)
• Multimedia storage (e.g., audio, video, or image files)
• File management systems
• Portable devices requiring expandable memory
• IoT projects requiring local data storage

Below are the key technical details of the SD Card Module:

The SD Card Module typically has six pins. Below is the pinout and its description:

To use the SD Card Module with an Arduino UNO, follow these steps:

1. Connect the module's VCC pin to the Arduino's 5V pin.
2. Connect the GND pin to the Arduino's GND pin.
3. Connect the MISO pin to the Arduino's D12 pin.
4. Connect the MOSI pin to the Arduino's D11 pin.
5. Connect the SCK pin to the Arduino's D13 pin.
6. Connect the CS pin to the Arduino's D10 pin (or any other digital pin, but update the code accordingly).

Below is an example of how to initialize and use the SD Card Module with an Arduino UNO:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the SD card module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Check if the SD card is present and can be initialized
  if (!SD.begin(chipSelect)) {
    Serial.println("SD card initialization failed!");
    return; // Stop further execution if initialization fails
  }
  Serial.println("SD card initialized successfully.");

  // Create or open a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, SD card!"); // Write data to the file
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to example.txt");
  } else {
    Serial.println("Error opening example.txt");
  }
}

void loop() {
  // Nothing to do here
}

• Ensure the SD card is formatted as FAT16 or FAT32 before use.
• Use a level shifter if your microcontroller operates at 3.3V logic levels.
• Avoid removing the SD card while the module is powered to prevent data corruption.
• Use decoupling capacitors near the module to stabilize the power supply.

1. SD card initialization failed

   • Ensure the SD card is properly inserted into the module.
   • Verify that the SD card is formatted as FAT16 or FAT32.
   • Check the wiring between the module and the microcontroller.

2. Error opening a file

   • Confirm that the file name follows the 8.3 filename convention (e.g., example.txt).
   • Ensure the SD card has sufficient free space.

3. Data corruption or loss

   • Avoid removing the SD card while the module is powered.
   • Use a reliable power source to prevent voltage fluctuations.

4. Module not responding

   • Double-check the SPI connections (MISO, MOSI, SCK, CS).
   • Ensure the correct Chip Select (CS) pin is defined in the code.

Q: Can I use a microSD card with this module?
A: Yes, most SD Card Modules support both standard SD and microSD cards using an adapter.

Q: What is the maximum storage capacity supported?
A: This depends on the module and library used, but most modules support up to 32GB SD cards formatted as FAT32.

Q: Can I use multiple SD Card Modules with one microcontroller?
A: Yes, but each module must have a unique Chip Select (CS) pin, and the code must handle multiple SPI devices.

Q: Is the module compatible with 3.3V microcontrollers?
A: Yes, but ensure the module supports 3.3V operation or use a level shifter for safe communication.

By following this documentation, you can effectively integrate the SD Card Module into your projects for reliable data storage and retrieval.
