How to Use DC DC converter: Examples, Pinouts, and Specs

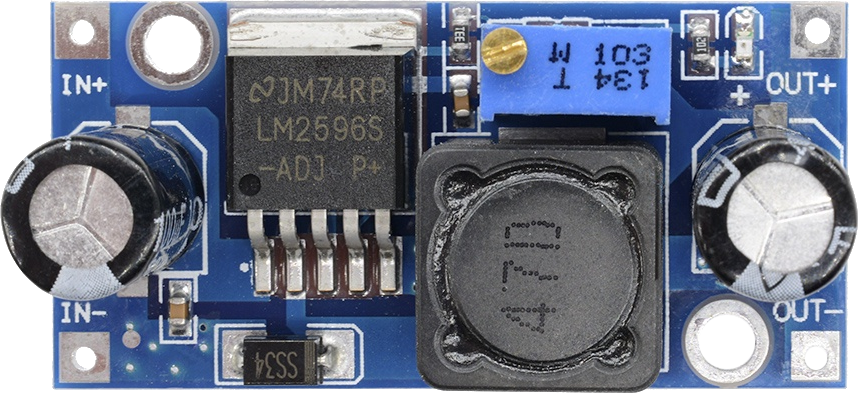

Image of DC DC converter
Cirkit Designer LogoDesign with DC DC converter in Cirkit Designer

Introduction

The DC DC Converter by Arceli (Part ID: DC DC Converter) is an electronic circuit designed to convert a direct current (DC) voltage from one level to another. This component is essential for voltage regulation and power management in a wide range of applications, including portable electronics, automotive systems, renewable energy systems, and industrial equipment. It ensures efficient power delivery by stepping up (boost), stepping down (buck), or both (buck-boost) the input voltage to meet the requirements of connected devices.

Explore Projects Built with DC DC converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
DC-DC Converter and Relay Module Power Distribution System
Image of relay: A project utilizing DC DC converter in a practical application
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Micro USB Power Supply with Buck Converter
Image of ac: A project utilizing DC DC converter in a practical application
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing DC DC converter in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing DC DC converter in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DC DC converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of relay: A project utilizing DC DC converter in a practical application
DC-DC Converter and Relay Module Power Distribution System
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ac: A project utilizing DC DC converter in a practical application
AC to DC Micro USB Power Supply with Buck Converter
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing DC DC converter in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing DC DC converter in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers and sensors in embedded systems
  • Voltage regulation in battery-powered devices
  • Renewable energy systems (e.g., solar panels)
  • Automotive electronics (e.g., powering 12V devices from a 24V battery)
  • Industrial automation and robotics

Technical Specifications

The following table outlines the key technical details of the Arceli DC DC Converter:

Parameter Value
Input Voltage Range 3V to 40V
Output Voltage Range 1.5V to 35V (adjustable)
Maximum Output Current 3A (with heat sink)
Efficiency Up to 92%
Switching Frequency 150 kHz
Operating Temperature -40°C to +85°C
Dimensions 43mm x 21mm x 14mm

Pin Configuration and Descriptions

The DC DC Converter has the following pin configuration:

Pin Name Description
VIN Input voltage terminal (connect to DC power source)
GND Ground terminal (common ground for input and output)
VOUT Output voltage terminal (connect to load)
ADJ Voltage adjustment (use a potentiometer to set output voltage)

Usage Instructions

How to Use the DC DC Converter in a Circuit

  1. Connect the Input Voltage:

    • Connect the positive terminal of your DC power source to the VIN pin.
    • Connect the negative terminal of your DC power source to the GND pin.
  2. Set the Output Voltage:

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the output voltage and counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage at the VOUT pin to ensure it matches your desired value.
  3. Connect the Load:

    • Connect the positive terminal of your load to the VOUT pin.
    • Connect the negative terminal of your load to the GND pin.
  4. Power On:

    • Turn on the DC power source. The converter will regulate the input voltage to the desired output voltage.

Important Considerations and Best Practices

  • Ensure the input voltage is within the specified range (3V to 40V).
  • Do not exceed the maximum output current of 3A. Use a heat sink if operating near the maximum current.
  • Avoid short circuits between the VIN, VOUT, and GND pins.
  • Use appropriate capacitors at the input and output terminals to reduce voltage ripple and improve stability.
  • If using the converter with sensitive electronics, test the output voltage with a multimeter before connecting the load.

Example: Using the DC DC Converter with an Arduino UNO

The DC DC Converter can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example circuit and Arduino code:

Circuit Connections

  • Connect a 12V DC power source to the VIN and GND pins of the converter.
  • Adjust the potentiometer to set the output voltage to 5V.
  • Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the converter to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the DC DC Converter is providing a stable 5V to the Arduino

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input voltage is not connected or is below the minimum required voltage.
    • Solution: Verify the input voltage is within the 3V to 40V range and properly connected.
  2. Output Voltage is Unstable:

    • Cause: Insufficient input or output capacitors.
    • Solution: Add capacitors (e.g., 100µF electrolytic) at the input and output terminals.
  3. Output Voltage Does Not Match the Desired Value:

    • Cause: Potentiometer is not adjusted correctly.
    • Solution: Use a multimeter to measure the output voltage and adjust the potentiometer.
  4. Overheating:

    • Cause: Excessive current draw or insufficient cooling.
    • Solution: Ensure the load does not exceed 3A and attach a heat sink if necessary.

FAQs

Q: Can the DC DC Converter step up and step down voltage?
A: No, this specific model is a buck converter, meaning it can only step down the input voltage.

Q: Can I use this converter with a lithium-ion battery?
A: Yes, as long as the battery voltage is within the input range (3V to 40V).

Q: How do I know if the converter is working correctly?
A: Use a multimeter to measure the output voltage and ensure it matches the desired value.

Q: Is the converter protected against reverse polarity?
A: No, reverse polarity can damage the converter. Always double-check your connections.
