Introduction

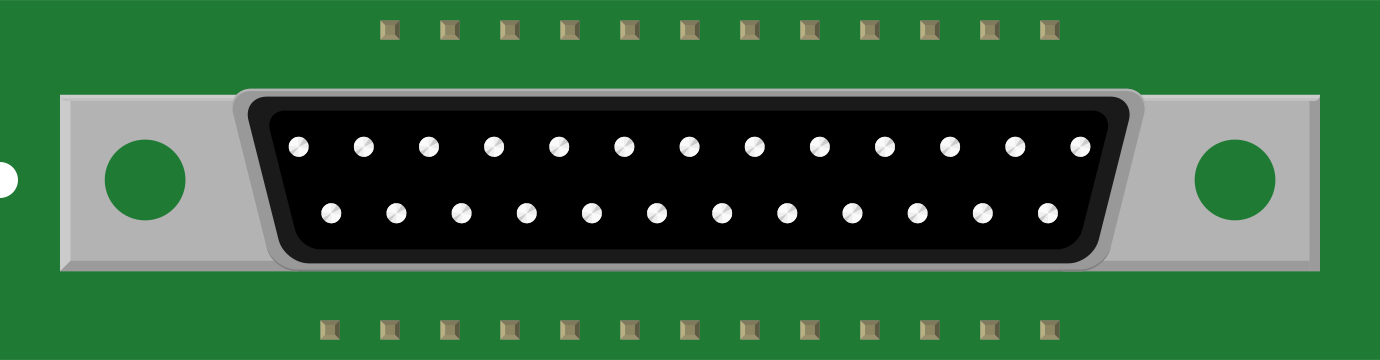

The DB25 is a 25-pin D-subminiature connector widely used for parallel and serial communication. It is part of the D-sub connector family, characterized by its D-shaped metal shield that provides mechanical support and electromagnetic interference (EMI) protection. The DB25 connector was historically used in computer interfaces, such as parallel ports for printers and serial ports for communication devices. While its usage has declined with the advent of USB and other modern interfaces, it remains relevant in legacy systems, industrial equipment, and specialized applications.

Explore Projects Built with DB25

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
FTDI to UART Adapter with J26 Connector
Image of J26 CLOSEUP: A project utilizing DB25 in a practical application
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Industrial Control System with RS485 Communication and I2C Interface
Image of DRIVER TESTER : A project utilizing DB25 in a practical application
This circuit integrates a microcontroller with a display, digital potentiometer, IO expander, and opto-isolator board for signal interfacing and isolation. It includes a UART to RS485 converter for serial communication and a power converter to step down voltage for the system. The circuit is designed for control and communication in an isolated and protected environment.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
Image of Load Cell Circuit: A project utilizing DB25 in a practical application
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Dual Relay Module
Image of ESP32 bluethooth with relay: A project utilizing DB25 in a practical application
This circuit features an ESP32 microcontroller connected to a two-channel relay module. The ESP32's digital pins D25 and D26 are used to control the relay channels IN1 and IN2, respectively, allowing the microcontroller to switch external circuits on and off. The ESP32 and the relay module share a common ground and the ESP32's Vin pin supplies power to the relay's VCC, indicating that both operate at compatible voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with DB25

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of J26 CLOSEUP: A project utilizing DB25 in a practical application
FTDI to UART Adapter with J26 Connector
This circuit connects an FTDI USB-to-serial converter to a standard serial interface via a J26 connector. It facilitates serial communication by linking the ground, transmit, receive, data terminal ready, and request to send signals between the FTDI chip and the J26 connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of DRIVER TESTER : A project utilizing DB25 in a practical application
ESP32-Based Industrial Control System with RS485 Communication and I2C Interface
This circuit integrates a microcontroller with a display, digital potentiometer, IO expander, and opto-isolator board for signal interfacing and isolation. It includes a UART to RS485 converter for serial communication and a power converter to step down voltage for the system. The circuit is designed for control and communication in an isolated and protected environment.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Load Cell Circuit: A project utilizing DB25 in a practical application
Multi-Channel Load Cell Measurement System with JYS60 Amplifiers and DAQ Integration
This is a multi-channel load cell measurement system with several JYS60 amplifiers connected to load cells for weight or force sensing. The amplified signals are directed to a DAQ system for data capture, and power is supplied through a barrel jack. Grounding is achieved via an AdaGator Side Black component.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 bluethooth with relay: A project utilizing DB25 in a practical application
ESP32-Controlled Dual Relay Module
This circuit features an ESP32 microcontroller connected to a two-channel relay module. The ESP32's digital pins D25 and D26 are used to control the relay channels IN1 and IN2, respectively, allowing the microcontroller to switch external circuits on and off. The ESP32 and the relay module share a common ground and the ESP32's Vin pin supplies power to the relay's VCC, indicating that both operate at compatible voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Parallel communication (e.g., printer connections)
  • Serial communication (RS-232 standard)
  • Industrial control systems
  • Test and measurement equipment
  • Audio and video signal transmission in some setups

Technical Specifications

Key Technical Details

  • Connector Type: D-subminiature, 25-pin
  • Pin Count: 25
  • Gender: Male or Female (depending on the application)
  • Mounting Style: Panel mount or cable mount
  • Contact Material: Gold or tin-plated contacts for reliable conductivity
  • Current Rating: Typically 5A per pin (varies by manufacturer)
  • Voltage Rating: Up to 300V (varies by manufacturer)
  • Operating Temperature: -55°C to +105°C (typical range)

Pin Configuration and Descriptions

The DB25 connector can be used for both parallel and serial communication. Below are the pin configurations for each use case:

Parallel Communication (IEEE 1284 Standard)

Pin Number Signal Name Description
1 Strobe Data strobe signal
2-9 Data 0-7 8-bit parallel data lines
10 Acknowledge Acknowledgment from the peripheral
11 Busy Indicates the peripheral is busy
12 Paper End Paper-out signal from the printer
13 Select Peripheral is selected
14 Auto Feed Auto-feed signal
15 Error Indicates an error condition
16 Initialize Initializes the peripheral
17 Select In Select input signal
18-25 Ground Signal ground

Serial Communication (RS-232 Standard)

Pin Number Signal Name Description
1 Shield Ground Shield connection for EMI protection
2 Transmit Data (TD) Data transmitted from the DTE
3 Receive Data (RD) Data received by the DTE
4 Request to Send Flow control signal
5 Clear to Send Flow control signal
6 Data Set Ready Indicates the DCE is ready
7 Signal Ground Common ground for signals
8 Carrier Detect Indicates carrier signal presence
9 Reserved Reserved for future use
10-25 Not Used Unused in standard RS-232 setups

Usage Instructions

How to Use the DB25 in a Circuit

  1. Identify the Application: Determine whether the DB25 will be used for parallel or serial communication.
  2. Select the Correct Cable: Use a DB25 cable with the appropriate pinout for your application. Ensure the cable matches the gender of the connector (male or female).
  3. Connect to the Device: Securely attach the DB25 connector to the corresponding port on your device. Use the screws on the connector to ensure a firm connection.
  4. Wiring: For custom applications, solder wires to the appropriate pins based on the pinout tables provided above. Use heat shrink tubing to insulate connections.
  5. Test the Connection: Verify the connection using a multimeter or communication test software.

Important Considerations

  • Signal Integrity: Use shielded cables to minimize EMI, especially in noisy environments.
  • Voltage and Current Ratings: Ensure the connected devices do not exceed the voltage and current ratings of the DB25 connector.
  • Pinout Verification: Double-check the pinout configuration to avoid miswiring, which could damage connected devices.
  • Legacy Systems: When interfacing with modern systems, consider using adapters or converters (e.g., DB25-to-USB).

Example: Connecting DB25 to Arduino UNO

While the DB25 is not directly compatible with Arduino UNO, it can be used for communication with legacy devices. Below is an example of using the DB25 for RS-232 communication with an Arduino UNO via a MAX232 level shifter.

Circuit Diagram

  • Connect the DB25 pins for RS-232 (e.g., Pin 2 for TX, Pin 3 for RX, and Pin 7 for Ground) to the MAX232 module.
  • Connect the MAX232 module to the Arduino UNO's TX (Pin 1) and RX (Pin 0) pins.

Arduino Code

// Example code for serial communication with a DB25 connector
// via a MAX232 module connected to an Arduino UNO

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("DB25 Communication Initialized");
}

void loop() {
  if (Serial.available() > 0) {
    // Read data received from the DB25-connected device
    char receivedData = Serial.read();
    Serial.print("Received: ");
    Serial.println(receivedData);

    // Echo the received data back to the device
    Serial.write(receivedData);
  }
}

Troubleshooting and FAQs

Common Issues

  1. No Communication Between Devices

    • Cause: Incorrect pinout or wiring.
    • Solution: Verify the pinout configuration and ensure proper connections.
  2. Signal Interference

    • Cause: Unshielded cables or noisy environment.
    • Solution: Use shielded cables and ensure proper grounding.
  3. Loose Connection

    • Cause: Connector not securely fastened.
    • Solution: Tighten the screws on the DB25 connector.
  4. Device Not Responding

    • Cause: Incorrect baud rate or protocol mismatch.
    • Solution: Check the communication settings (e.g., baud rate, parity, stop bits).

FAQs

Q: Can I use a DB25 connector for modern devices?
A: Yes, but you may need adapters or converters (e.g., DB25-to-USB) to interface with modern systems.

Q: How do I identify the pin numbers on a DB25 connector?
A: Pin numbers are typically labeled on the connector housing. For male connectors, pins are numbered from left to right, top to bottom when viewed from the front.

Q: Is the DB25 connector still in use today?
A: While less common, the DB25 is still used in legacy systems, industrial equipment, and specialized applications.
