How to Use esp32 38p typec cp2102: Examples, Pinouts, and Specs

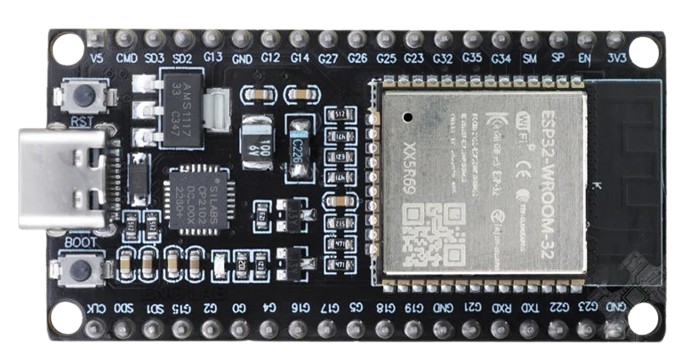

The ESP32 38P Type-C CP2102 is a versatile and powerful microcontroller module developed by Espressif Systems. It is based on the ESP32 dual-core processor, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications. This module features a USB Type-C interface for easy programming and power supply, along with the CP2102 USB-to-UART bridge for seamless communication with a computer.

Common applications of the ESP32 38P Type-C CP2102 include:

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Robotics and drones
• Prototyping and development of connected devices

The ESP32 38P Type-C CP2102 module offers the following key technical details:

The ESP32 38P Type-C CP2102 module has 38 pins, each with specific functions. Below is a table summarizing the key pins:

1. Powering the Module:

   • Connect the module to a computer or power source using a USB Type-C cable.
   • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your circuit.

2. Programming the Module:

   • Install the CP2102 USB-to-UART driver on your computer (if not already installed).
   • Use the Arduino IDE or Espressif's ESP-IDF to write and upload code to the module.
   • For flashing, ensure GPIO0 is connected to GND during the upload process.

3. Connecting Peripherals:

   • Use the GPIO pins to interface with sensors, actuators, and other peripherals.
   • For analog inputs, connect sensors to ADC pins (e.g., IO32, IO33).
   • For communication protocols, use the dedicated pins for I2C, SPI, or UART.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the module.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
• Boot Mode: For flashing firmware, connect GPIO0 to GND and reset the module.
• External Antenna: If using an external antenna, ensure proper placement for optimal signal strength.

Below is an example of using the ESP32 38P Type-C CP2102 to blink an LED connected to GPIO2:

// Blink an LED connected to GPIO2 on the ESP32 module

#define LED_PIN 2  // GPIO2 is connected to the LED

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                  // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                  // Wait for 1 second
}

1. Module Not Detected by Computer:

   • Ensure the CP2102 driver is installed correctly.
   • Check the USB Type-C cable for proper connection and functionality.

2. Failed to Upload Code:

   • Verify that GPIO0 is connected to GND during the upload process.
   • Check the selected COM port and board settings in the Arduino IDE.

3. Wi-Fi Connection Issues:

   • Ensure the correct SSID and password are used in the code.
   • Check for interference or weak signal strength.

4. Overheating:

   • Avoid overloading the GPIO pins with excessive current.
   • Ensure proper ventilation around the module.

Q: Can the ESP32 38P Type-C CP2102 operate on battery power?
A: Yes, the module can be powered using a 3.7V LiPo battery connected to the VIN pin, but ensure proper voltage regulation.

Q: How do I reset the module?
A: Press the onboard reset button or momentarily connect the EN pin to GND.

Q: Can I use the ESP32 with other IDEs besides Arduino?
A: Yes, the ESP32 is compatible with Espressif's ESP-IDF, PlatformIO, and other development environments.

Q: What is the maximum number of GPIO pins I can use?
A: The module provides 38 GPIO pins, but some are reserved for specific functions like boot mode or communication protocols.
