How to Use L298P: Examples, Pinouts, and Specs

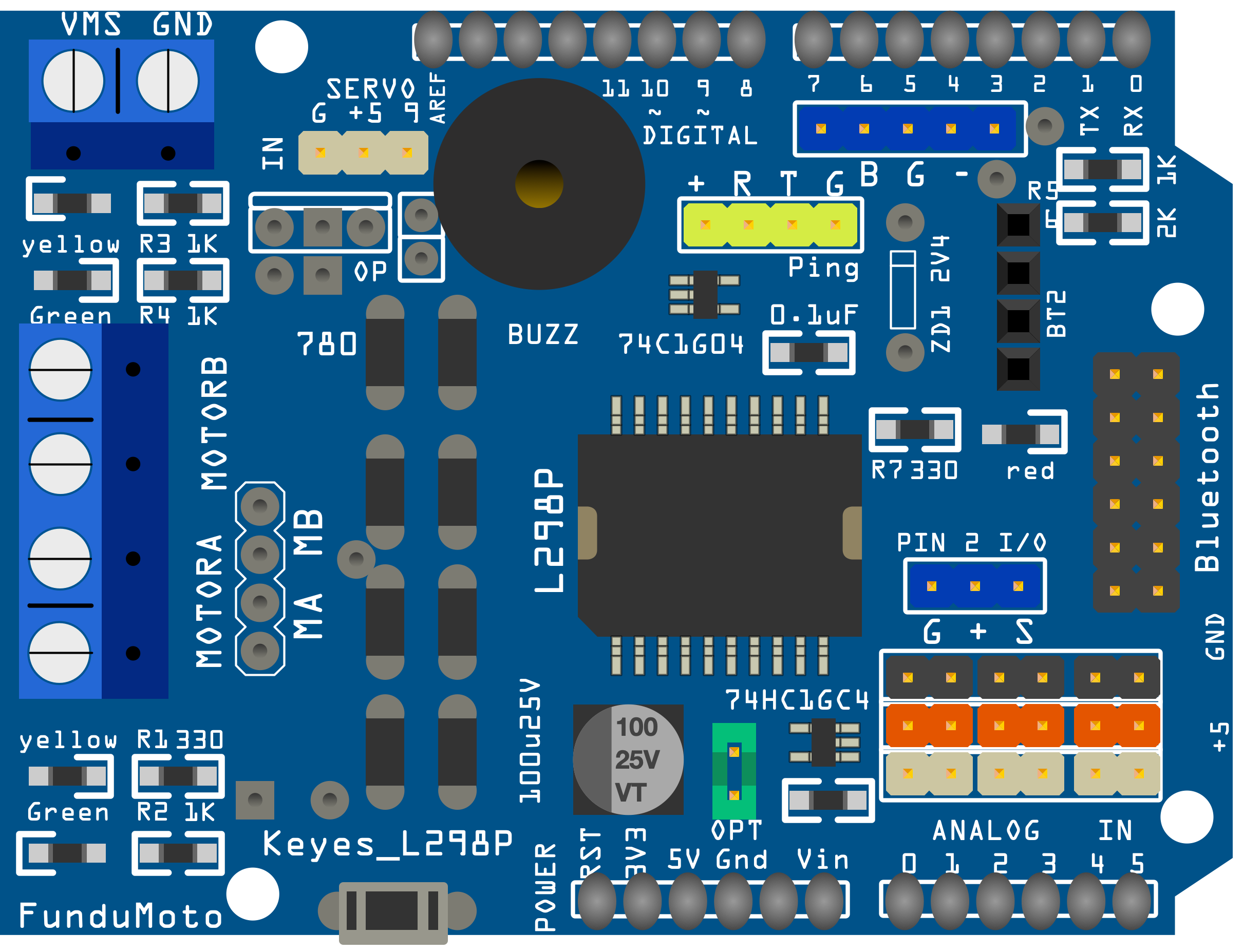

The L298P is a dual H-bridge motor driver IC manufactured by Arduino, designed to control the direction and speed of DC motors and stepper motors. It is capable of driving two motors simultaneously, with each channel supporting up to 2A of current. This makes the L298P an ideal choice for robotics, automation, and other motor control applications.

• Robotics: Driving wheels or actuators in robotic systems.
• Automation: Controlling conveyor belts, fans, or other motorized systems.
• DIY Projects: Building motorized vehicles, robotic arms, or automated systems.
• Stepper Motor Control: Driving stepper motors for precise positioning.

The L298P is a robust and versatile motor driver IC with the following key specifications:

The L298P IC has the following pin configuration:

1. Power Supply: Connect the motor power supply to the VS pin (Pin 8). Ensure the voltage is within the operating range of the motors and the L298P (5V to 46V). Connect the logic voltage (5V) to the VSS pin (Pin 7).
2. Motor Connections: Connect the motor terminals to the output pins (Output 1 and Output 2 for motor A, Output 3 and Output 4 for motor B).
3. Control Inputs: Use the Input pins (Pins 2, 3 for motor A; Pins 10, 11 for motor B) to control the direction of the motors. Apply a HIGH or LOW signal to these pins based on the desired direction.
4. Enable Pins: Set the Enable pins (Pins 1 and 9) HIGH to enable the respective motors. If the enable pin is LOW, the motor will not operate.
5. Ground Connections: Connect all ground pins (Pins 6 and 14) to the common ground of the circuit.

• Heat Dissipation: The L298P can dissipate significant heat during operation. Use a heat sink or cooling mechanism to prevent overheating.
• Current Limitation: Ensure the motor current does not exceed 2A per channel to avoid damaging the IC.
• Flyback Diodes: Although the L298P has internal diodes for protection, external flyback diodes can be added for additional safety when driving inductive loads.
• Logic Level Compatibility: Ensure the control signals are TTL-compatible (0V for LOW, 5V for HIGH).

Below is an example of controlling a DC motor using the L298P and Arduino UNO:

// Define L298P control pins
const int enableA = 9;  // Enable pin for motor A
const int input1 = 8;   // Input 1 for motor A
const int input2 = 7;   // Input 2 for motor A

void setup() {
  // Set control pins as outputs
  pinMode(enableA, OUTPUT);
  pinMode(input1, OUTPUT);
  pinMode(input2, OUTPUT);

  // Initialize motor A
  digitalWrite(enableA, HIGH); // Enable motor A
  digitalWrite(input1, HIGH);  // Set motor A direction
  digitalWrite(input2, LOW);   // Set motor A direction
}

void loop() {
  // Run motor A for 5 seconds
  analogWrite(enableA, 200); // Set motor speed (0-255)
  delay(5000);

  // Stop motor A for 2 seconds
  analogWrite(enableA, 0);   // Stop motor
  delay(2000);
}

1. Motor Not Running:

   • Ensure the Enable pin is set HIGH.
   • Verify the power supply connections to VS and VSS.
   • Check the motor connections to the output pins.

2. Overheating:

   • Use a heat sink or cooling fan to dissipate heat.
   • Ensure the motor current does not exceed 2A per channel.

3. Erratic Motor Behavior:

   • Check the control signal connections to the Input pins.
   • Verify the ground connections are properly connected.

4. Low Motor Speed:

   • Increase the PWM duty cycle on the Enable pin.
   • Ensure the motor power supply voltage is sufficient.

Q: Can the L298P drive stepper motors?
A: Yes, the L298P can drive stepper motors by controlling the sequence of the Input pins. Ensure the stepper motor current is within the IC's limits.

Q: Do I need external diodes for protection?
A: The L298P has internal diodes for protection, but external flyback diodes can be added for additional safety when driving inductive loads.

Q: What is the maximum voltage the L298P can handle?
A: The L298P can handle up to 46V on the VS pin for motor power supply.

Q: Can I control motor speed with the L298P?
A: Yes, motor speed can be controlled using PWM signals on the Enable pins.
