How to Use STA540: Examples, Pinouts, and Specs

The STA540, manufactured by STMicroelectronics, is a high-performance audio amplifier integrated circuit (IC) designed for driving speakers in consumer electronics. It is a dual-channel amplifier capable of delivering high-quality audio output with low distortion and high efficiency. The STA540 is equipped with integrated protection mechanisms, including thermal shutdown and short-circuit protection, ensuring reliable operation in demanding environments.

• Home audio systems
• Car audio amplifiers
• Active speaker systems
• Audio signal processing equipment
• Consumer electronics requiring high-quality audio output

The STA540 is designed to meet the needs of modern audio applications with the following key specifications:

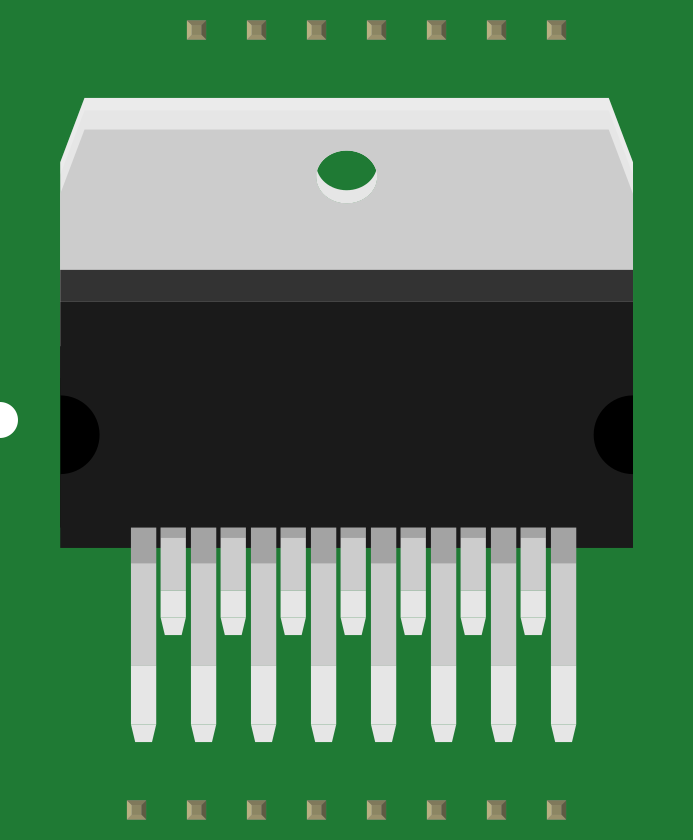

The STA540 is available in a Multiwatt15 package. Below is the pin configuration and description:

1. Power Supply: Connect a regulated DC power supply within the range of 8V to 22V to the VCC pin. Ensure proper decoupling capacitors are placed near the IC to minimize noise.
2. Input Signal: Feed the audio input signals to the IN1+ and IN2+ pins for channels 1 and 2, respectively. Use appropriate coupling capacitors to block DC components.
3. Output Load: Connect the speaker load (4Ω or 8Ω) to the OUT1 and OUT2 pins. Ensure the load impedance matches the IC's specifications.
4. Grounding: Connect all GND pins to a common ground plane to minimize noise and ensure stable operation.
5. SVR Pin: Connect a capacitor (typically 100µF) to the SVR pin to stabilize the internal biasing circuitry.

• Use heat sinks or proper thermal management to dissipate heat generated during operation, especially at high output power levels.
• Avoid exceeding the maximum supply voltage (22V) to prevent damage to the IC.
• Use proper PCB layout techniques to minimize noise and interference, such as keeping input and output traces separate.
• Ensure adequate decoupling capacitors are placed close to the VCC pin to reduce power supply noise.

The STA540 can be used with an Arduino UNO to amplify audio signals. Below is an example of how to generate a simple audio tone using the Arduino and feed it to the STA540:

// Example code to generate a tone using Arduino UNO and feed it to STA540
// Connect Arduino pin 9 (PWM output) to the IN1+ pin of STA540
// Use a coupling capacitor (e.g., 10µF) between Arduino and STA540 input

const int audioPin = 9; // PWM pin connected to STA540 IN1+

void setup() {
  pinMode(audioPin, OUTPUT); // Set the audio pin as output
}

void loop() {
  // Generate a 1kHz tone on the audio pin
  tone(audioPin, 1000); // Frequency = 1000Hz
  delay(1000);          // Play tone for 1 second
  noTone(audioPin);     // Stop tone
  delay(1000);          // Wait for 1 second
}

1. No Output Signal

   • Cause: Incorrect power supply connection or insufficient voltage.
   • Solution: Verify the power supply voltage is within the specified range (8V to 22V) and properly connected to the VCC pin.

2. Distorted Audio Output

   • Cause: Overdriving the input signal or mismatched load impedance.
   • Solution: Reduce the input signal amplitude and ensure the speaker impedance matches the IC's specifications (4Ω to 8Ω).

3. Overheating

   • Cause: Insufficient heat dissipation or excessive output power.
   • Solution: Use a heat sink or improve ventilation around the IC. Ensure the output power does not exceed the IC's limits.

4. Humming or Noise in Output

   • Cause: Poor grounding or inadequate decoupling.
   • Solution: Ensure all GND pins are connected to a common ground plane. Add decoupling capacitors near the VCC pin.

Q1: Can the STA540 drive a single speaker in bridge mode?
A1: Yes, the STA540 supports bridge mode operation for higher output power. Refer to the datasheet for the specific configuration.

Q2: What is the recommended capacitor value for the SVR pin?
A2: A 100µF capacitor is typically recommended for the SVR pin to stabilize the internal biasing.

Q3: Can the STA540 be used with a 3.3V microcontroller?
A3: Yes, but you may need a level shifter or coupling capacitor to ensure proper signal levels for the STA540 inputs.

Q4: Is the STA540 suitable for battery-powered applications?
A4: Yes, as long as the battery voltage is within the 8V to 22V range and can supply sufficient current for the desired output power.
