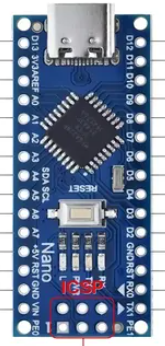

Image of arduino nano
Cirkit Designer LogoDesign with arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, based on the ATmega328P microcontroller. It is designed for easy integration into a wide range of projects, offering a small form factor without compromising functionality. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming, and a robust set of features that make it ideal for both beginners and experienced developers.

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
Image of gps1: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps1: A project utilizing arduino nano in a practical application
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable electronics
  • Sensor-based systems
  • Educational tools for learning microcontroller programming

Technical Specifications

The Arduino Nano is a versatile board with the following key specifications:

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm
Weight 7 g

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V recommended).
2 5V Regulated 5V output from the board. Can be used to power external components.
3 3.3V Regulated 3.3V output for low-power components.
4 GND Ground pins (multiple GND pins available).
5 RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Name Description
D0-D13 Digital I/O General-purpose digital input/output pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Name Description
A0-A7 Analog Input Used for reading analog signals (0-5V). Can also be used as digital I/O pins.

Communication Pins

Pin Name Description
D0, D1 RX, TX Serial communication pins for UART.
D10-D13 SPI SPI communication pins (SS, MOSI, MISO, SCK).
A4, A5 I2C I2C communication pins (SDA, SCL).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the Mini-B USB port to power and program the board.
    • Alternatively, supply 7-12V to the VIN pin or 5V to the 5V pin.
  2. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals or as additional digital I/O pins.
    • Connect sensors, actuators, and other peripherals as needed.
  3. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type and "ATmega328P" as the processor in the IDE.
    • Connect the board to your computer via a Mini-B USB cable.
    • Write your code in the Arduino IDE and upload it to the board.

Important Considerations and Best Practices

  • Ensure the input voltage does not exceed the recommended range (7-12V) to avoid damaging the board.
  • Use appropriate resistors when connecting LEDs or other components to prevent excessive current draw.
  • Avoid drawing more than 40 mA from any single I/O pin.
  • Use decoupling capacitors when connecting sensors or modules to reduce noise.

Example Code for Arduino Nano

Below is an example code to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// This example demonstrates basic digital output functionality.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and properly connected.
    • Install the necessary drivers for the Arduino Nano.
    • Check if the correct COM port is selected in the Arduino IDE.
  2. Code upload fails:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Press the RESET button on the Nano before uploading the code.
    • Ensure no other application is using the COM port.
  3. The board is overheating:

    • Check for short circuits in your circuit connections.
    • Ensure the input voltage does not exceed the recommended range.
  4. Analog readings are unstable:

    • Use decoupling capacitors near the analog input pins.
    • Ensure proper grounding of all components in the circuit.

FAQs

Q: Can the Arduino Nano be powered by batteries?
A: Yes, you can power the Nano using batteries by connecting them to the VIN pin (7-12V) or the 5V pin (regulated 5V).

Q: How do I reset the Arduino Nano?
A: Press the RESET button on the board, or connect the RESET pin to GND momentarily.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266) to the Nano via its UART or SPI/I2C pins.

Q: What is the difference between the Arduino Nano and Arduino Uno?
A: The Nano is smaller and more compact, making it ideal for space-constrained projects. It also uses a Mini-B USB port instead of the Uno's Type-B USB port. Both boards share the same ATmega328P microcontroller.
