How to Use MQ-135: Examples, Pinouts, and Specs

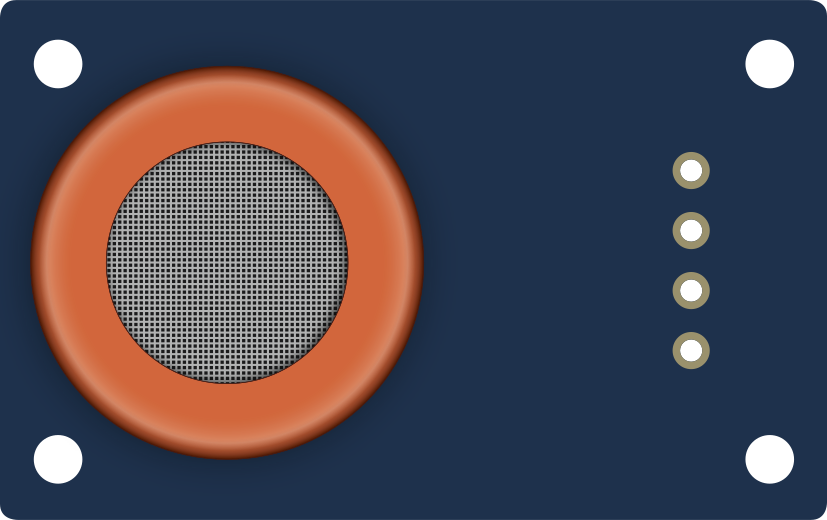

Image of MQ-135Design with MQ-135 in Cirkit Designer

Introduction

The MQ-135 is a versatile gas sensor designed to detect a wide range of gases, including ammonia (NH₃), benzene (C₆H₆), alcohol, smoke, and other harmful gases. It operates on the principle of resistive change, where the sensor's resistance varies in response to the concentration of target gases in the air. This makes the MQ-135 an excellent choice for air quality monitoring and environmental safety applications.

Explore Projects Built with MQ-135

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino UNO Based Air Quality Monitoring and GSM Notification System: A project utilizing MQ-135 in a practical application
Arduino UNO Based Air Quality Monitoring and GSM Notification System

This circuit features an Arduino UNO microcontroller interfaced with an MQ135 air quality sensor, an MPU-6050 accelerometer/gyroscope, a SIM900A GSM communication module, and a buzzer. The Arduino reads analog data from the MQ135 sensor and communicates with the MPU-6050 via I2C, while also controlling the buzzer and handling serial communication with the SIM900A module. The purpose of this circuit is likely to monitor air quality and motion, provide alerts through the buzzer, and enable remote communication via GSM.

Open Project in Cirkit Designer
Image of Arduino UNO Based Gas Detection and GSM Alert System: A project utilizing MQ-135 in a practical application
Arduino UNO Based Gas Detection and GSM Alert System

This circuit is designed to monitor air quality using an MQ135 sensor and provide visual and audible alerts. It features an Arduino UNO microcontroller interfaced with a GSM module for communication, an I2C LCD for display, and LEDs and a buzzer for local alerts. The Arduino runs embedded code to read the MQ135 sensor data, display air quality index (AQI) on the LCD, and trigger SMS and call alerts via the GSM module when gas is detected above a certain threshold.

Open Project in Cirkit Designer

Common Applications

Technical Specifications

The MQ-135 sensor is designed for ease of use and integration into various electronic systems. Below are its key technical details:

Parameter Value
Operating Voltage 5V DC
Load Resistance (RL) 10 kΩ (typical)
Heating Voltage (VH) 5V ± 0.2V
Heating Current (IH) ≤ 120 mA
Detection Range 10 ppm to 1000 ppm (varies by gas)
Preheat Time ≥ 24 hours for stable operation
Sensitivity Adjustable via external circuit
Operating Temperature -20°C to 50°C
Humidity Range ≤ 95% RH
Dimensions 32mm x 20mm x 22mm (approx.)

Pin Configuration and Descriptions

The MQ-135 sensor module typically has four pins. Below is the pinout description:

Pin Name Description
1 VCC Power supply pin. Connect to 5V DC.
2 GND Ground pin. Connect to the ground of the circuit.
3 AOUT Analog output pin. Provides a voltage proportional to the gas concentration.
4 DOUT Digital output pin. Outputs HIGH or LOW based on a preset threshold.

Usage Instructions

How to Use the MQ-135 in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 5V DC power source and the GND pin to the ground.
  2. Choose Output Type:
    • Use the AOUT pin for analog readings to measure gas concentration levels.
    • Use the DOUT pin for digital readings, which indicate whether the gas concentration exceeds a preset threshold.
  3. Preheat the Sensor: Allow the sensor to preheat for at least 24 hours for accurate and stable readings.
  4. Connect to a Microcontroller: For example, connect the AOUT pin to an analog input pin on an Arduino UNO for real-time monitoring.

Important Considerations

Example Code for Arduino UNO

Below is an example of how to use the MQ-135 sensor with an Arduino UNO to read analog values:

// MQ-135 Gas Sensor Example Code
// Connect AOUT to Arduino analog pin A0
// Connect VCC to 5V and GND to ground

const int mq135Pin = A0; // Analog pin connected to AOUT
int sensorValue = 0;     // Variable to store sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("MQ-135 Gas Sensor Test");
}

void loop() {
  sensorValue = analogRead(mq135Pin); // Read analog value from sensor
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor

  delay(1000); // Wait for 1 second before the next reading
}

Notes:

Troubleshooting and FAQs

Common Issues and Solutions

  1. Inaccurate Readings:

    • Cause: Insufficient preheating time.
    • Solution: Ensure the sensor is preheated for at least 24 hours before use.
  2. No Output from DOUT:

    • Cause: Threshold not properly set.
    • Solution: Adjust the potentiometer on the module to set the desired threshold.
  3. Fluctuating Analog Values:

    • Cause: Unstable power supply or environmental interference.
    • Solution: Use a regulated 5V power supply and avoid placing the sensor near strong electromagnetic sources.
  4. Sensor Not Responding:

    • Cause: Incorrect wiring or damaged sensor.
    • Solution: Double-check the wiring and ensure the sensor is not physically damaged.

FAQs

Q1: Can the MQ-135 detect specific gases?
A1: Yes, the MQ-135 can detect gases like ammonia, benzene, alcohol, and smoke. However, it is not selective and may respond to multiple gases simultaneously.

Q2: How do I calibrate the MQ-135 sensor?
A2: Place the sensor in clean air and record the baseline analog value. Use this value as a reference for detecting gas concentrations.

Q3: Can I use the MQ-135 with a 3.3V microcontroller?
A3: The MQ-135 is designed for 5V operation. Use a level shifter or voltage regulator to interface with 3.3V systems.

Q4: How long does the sensor last?
A4: The MQ-135 has a typical lifespan of 2-3 years under normal operating conditions.
