Introduction

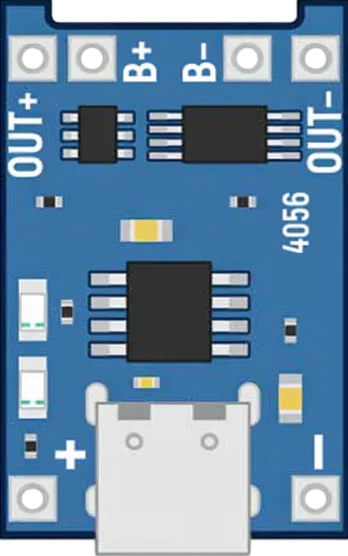

The TP4056 Type-C is a lithium battery charger IC designed for charging single-cell lithium-ion batteries. It provides a constant current/constant voltage (CC/CV) charging profile, ensuring safe and efficient charging. The inclusion of a Type-C interface allows for modern and convenient connectivity. With built-in thermal regulation, over-voltage protection, and automatic charge termination, the TP4056 Type-C is ideal for portable electronics, power banks, and DIY battery-powered projects.
Common Applications
- Charging single-cell lithium-ion or lithium-polymer batteries
- Power banks and portable chargers
- DIY electronics and IoT devices
- Battery-powered gadgets and wearables
Technical Specifications
Key Technical Details
Pin Configuration and Descriptions
Usage Instructions
How to Use the TP4056 Type-C in a Circuit
- Power Supply: Connect the VCC pin to a 5V power source, such as a USB Type-C cable.
- Battery Connection: Connect the BAT pin to the positive terminal of the lithium-ion battery. The negative terminal of the battery should be connected to GND.
- Set Charging Current: Use a resistor between the PROG pin and GND to set the desired charging current. The formula to calculate the resistor value is:
[
I_{CHG} = \frac{1200}{R_{PROG}}
]
where ( I_{CHG} ) is the charging current in mA and ( R_{PROG} ) is the resistor value in kΩ.
- Status LEDs: Connect LEDs to the STAT1 and STAT2 pins with appropriate current-limiting resistors to indicate charging status.
- STAT1: Charging in progress (LED ON when active).
- STAT2: Charging complete (LED ON when active).
- Thermal Regulation: Optionally, connect an NTC thermistor to the TEMP pin for temperature monitoring and protection.
- Enable/Disable Charging: Use the CE pin to enable or disable charging. Pull the pin high to enable charging or low to disable it.
Important Considerations
- Ensure the input voltage does not exceed 6V to avoid damaging the IC.
- Use a properly rated lithium-ion battery to prevent overcharging or overheating.
- Place decoupling capacitors (e.g., 1µF and 10µF) near the VCC pin to stabilize the input voltage.
- Avoid shorting the BAT pin to GND, as this may damage the IC.
Example Code for Arduino UNO
If you want to monitor the charging status using an Arduino UNO, you can connect the STAT1 and STAT2 pins to digital input pins on the Arduino. Below is an example code snippet:
// Define the pins connected to STAT1 and STAT2
const int stat1Pin = 2; // STAT1 connected to digital pin 2
const int stat2Pin = 3; // STAT2 connected to digital pin 3
void setup() {
pinMode(stat1Pin, INPUT); // Set STAT1 as input
pinMode(stat2Pin, INPUT); // Set STAT2 as input
Serial.begin(9600); // Initialize serial communication
}
void loop() {
int stat1 = digitalRead(stat1Pin); // Read STAT1 pin
int stat2 = digitalRead(stat2Pin); // Read STAT2 pin
if (stat1 == LOW) {
Serial.println("Charging in progress...");
} else if (stat2 == LOW) {
Serial.println("Charging complete!");
} else {
Serial.println("No battery connected or idle state.");
}
delay(1000); // Wait for 1 second before checking again
}
Troubleshooting and FAQs
Common Issues and Solutions
The battery is not charging.
- Ensure the input voltage is within the 4.5V to 6V range.
- Check the connections to the BAT and GND pins.
- Verify that the CE pin is pulled high to enable charging.
The IC is overheating.
- Reduce the charging current by increasing the resistor value on the PROG pin.
- Ensure proper ventilation or add a heatsink if necessary.
The status LEDs are not lighting up.
- Check the connections and polarity of the LEDs.
- Verify that the STAT1 and STAT2 pins are functioning correctly.
The charging current is too high or too low.
- Recalculate the resistor value for the PROG pin using the formula provided.
- Ensure the resistor is properly connected and has the correct value.
FAQs
Q: Can I use the TP4056 Type-C to charge multiple batteries in series?
A: No, the TP4056 Type-C is designed for single-cell lithium-ion batteries only. Charging multiple batteries in series requires a specialized charging circuit.
Q: What happens if the input voltage exceeds 6V?
A: Exceeding 6V can damage the IC. Always ensure the input voltage is within the specified range.
Q: Can I use the TP4056 Type-C without the TEMP pin?
A: Yes, the TEMP pin can be left unconnected if temperature monitoring is not required. However, this disables thermal regulation.
Q: How do I adjust the charging voltage?
A: The charging voltage is fixed at 4.2V and cannot be adjusted. For other voltages, consider using a different charger IC.
This concludes the documentation for the TP4056 Type-C.
