Introduction

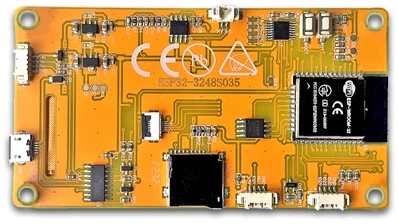

The ESP32 TFT 3.5 CYD is a versatile 3.5-inch TFT display module integrated with an ESP32 microcontroller. This component combines a high-resolution graphical display with the powerful wireless communication capabilities of the ESP32, making it ideal for IoT projects, smart devices, and interactive user interfaces. Its built-in Wi-Fi and Bluetooth functionality, along with the vibrant TFT display, allow developers to create visually appealing and connected applications.

Explore Projects Built with ESP32 TFT 3.5 CYD

ESP32-C6 and ST7735S Display: Wi-Fi Controlled TFT Display Module

This circuit features an ESP32-C6 microcontroller interfaced with a China ST7735S 160x128 TFT display. The ESP32-C6 controls the display via SPI communication, providing power, ground, and control signals to render graphics and text on the screen.

Open Project in Cirkit Designer

ESP32-S3 Wi-Fi Controlled ILI9341 TFT Display for Cryptocurrency Prices

This circuit integrates an ESP32-S3 microcontroller with an ILI9341 TFT display to create a WiFi-enabled cryptocurrency price viewer. The ESP32-S3 fetches real-time price data from the CoinGecko API and displays it on the TFT screen, allowing users to monitor the prices of Bitcoin, Ethereum, and Solana.

Open Project in Cirkit Designer

ESP32-Controlled TFT LCD Display Interface

This circuit features an ESP32 microcontroller connected to a TFT LCD Display ST7735S for visual output. The ESP32 controls the display via GPIO pins, with connections for data (SDA), clock (SCK), chip select (CS), and data/command (A0). Power management is handled by an LM2956 Buck Converter, and a P6KE6.8A diode provides protection against voltage spikes.

Open Project in Cirkit Designer

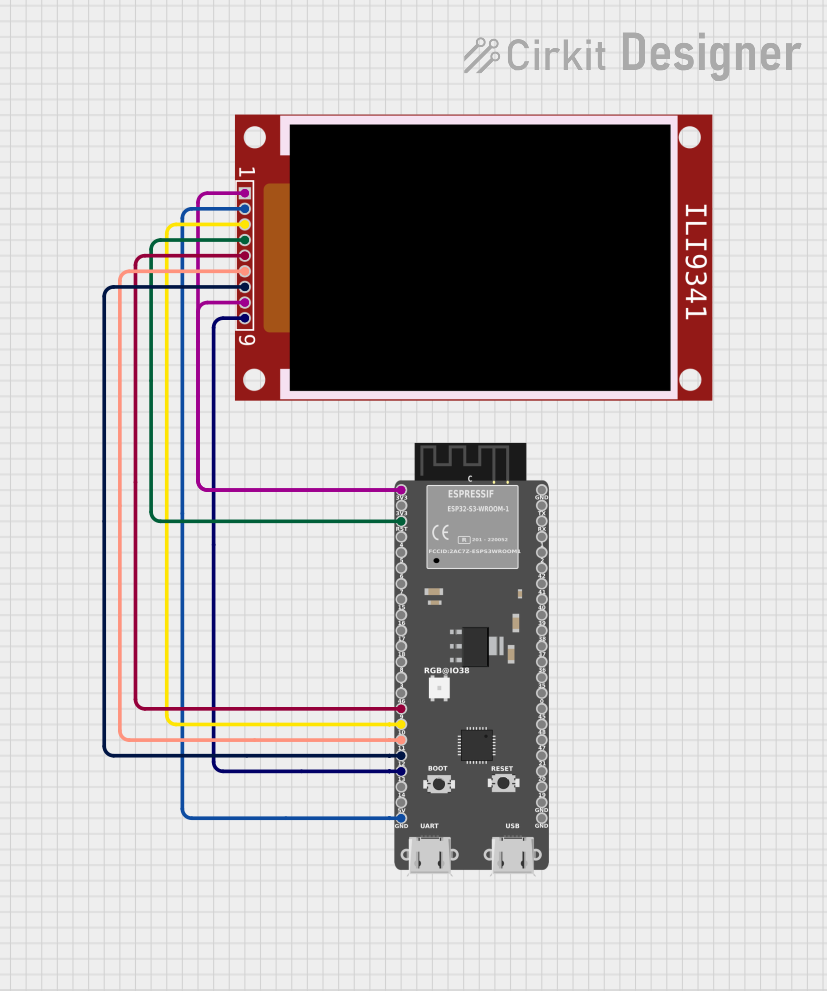

ESP32-S3 Wi-Fi Enabled ILI9341 Display for HTTP(S) Status Monitoring

This circuit integrates an ESP32-S3 microcontroller with an ILI9341 TFT display to create a Wi-Fi enabled device that fetches and displays HTTP(S) response data. The ESP32-S3 handles the network communication and controls the display, allowing for real-time visualization of data retrieved from a specified URL.

Open Project in Cirkit Designer

Common Applications and Use Cases

IoT dashboards and control panels
Smart home devices with graphical interfaces
Portable gaming consoles
Data visualization for sensors and embedded systems
Educational and prototyping projects

Technical Specifications

Key Technical Details

Parameter	Specification
Display Size	3.5 inches
Resolution	480 x 320 pixels
Display Type	TFT LCD with capacitive touch support
Controller IC	ILI9488
Microcontroller	ESP32 (dual-core, 240 MHz)
Wireless Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth v4.2
Operating Voltage	3.3V
Power Consumption	~200mA (varies with usage)
Interface	SPI
Touch Panel	Capacitive (optional)
Dimensions	85mm x 55mm x 12mm

Pin Configuration and Descriptions

Pin Name	Pin Number	Description
VCC	1	Power input (3.3V)
GND	2	Ground connection
CS	3	Chip Select for SPI communication
SCK	4	Serial Clock for SPI communication
MOSI	5	Master Out Slave In (data line for SPI communication)
MISO	6	Master In Slave Out (data line for SPI communication, optional)
DC	7	Data/Command control pin
RST	8	Reset pin for the display
T_IRQ	9	Touch interrupt pin (used for touch functionality, optional)
T_CS	10	Chip Select for touch controller (used for touch functionality, optional)

Usage Instructions

How to Use the Component in a Circuit

Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to ground.
SPI Communication: Connect the CS, SCK, MOSI, and DC pins to the corresponding SPI pins on your microcontroller (e.g., Arduino or ESP32).
Reset Pin: Connect the RST pin to a GPIO pin on your microcontroller for resetting the display.
Touch Functionality (Optional): If using the touch feature, connect the T_CS and T_IRQ pins to GPIO pins on your microcontroller.

Important Considerations and Best Practices

Voltage Levels: Ensure all connected pins operate at 3.3V logic levels. Using 5V logic may damage the display or ESP32.
Power Supply: Use a stable power source to avoid flickering or instability in the display.
SPI Speed: Configure the SPI clock speed appropriately (typically 40 MHz or lower) to ensure reliable communication.
Library Support: Use libraries like TFT_eSPI or Adafruit_GFX for easier integration and control of the display.

Example Code for Arduino UNO

Below is an example of how to initialize and display text on the ESP32 TFT 3.5 CYD using the TFT_eSPI library:

#include <TFT_eSPI.h> // Include the TFT_eSPI library

TFT_eSPI tft = TFT_eSPI(); // Create an instance of the TFT_eSPI class

void setup() {
  tft.init(); // Initialize the display
  tft.setRotation(1); // Set display orientation (1 = landscape)
  tft.fillScreen(TFT_BLACK); // Clear the screen with black color

  tft.setTextColor(TFT_WHITE, TFT_BLACK); // Set text color (white on black)
  tft.setTextSize(2); // Set text size

  tft.setCursor(10, 10); // Set cursor position
  tft.println("Hello, ESP32 TFT!"); // Print text to the display
}

void loop() {
  // Add your code here for dynamic updates or animations
}

Notes for Arduino Users

Install the TFT_eSPI library via the Arduino Library Manager.
Configure the User_Setup.h file in the TFT_eSPI library to match the pin connections of your ESP32 TFT 3.5 CYD module.

Troubleshooting and FAQs

Common Issues and Solutions

Display Not Turning On:
- Verify the power connections (VCC and GND).
- Ensure the SPI pins are correctly connected and configured in the code.
Flickering or Unstable Display:
- Check for a stable power supply.
- Reduce the SPI clock speed in the library configuration.
Touch Functionality Not Working:
- Ensure the T_CS and T_IRQ pins are connected.
- Verify that the touch controller is enabled in the library settings.
No Output on the Display:
- Confirm that the CS, DC, and RST pins are correctly connected.
- Double-check the pin definitions in your code.

FAQs

Q: Can I use this module with a 5V microcontroller like Arduino UNO?
A: The ESP32 TFT 3.5 CYD operates at 3.3V logic levels. If using a 5V microcontroller, you must use level shifters to avoid damaging the module.

Q: What is the maximum SPI clock speed supported?
A: The module typically supports SPI clock speeds up to 40 MHz. However, lower speeds may be required for stable operation.

Q: Does the module support capacitive touch?
A: Yes, the module includes optional capacitive touch functionality. Ensure the touch-related pins are connected and configured in your code.

Q: Can I use this module without the touch feature?
A: Yes, the touch functionality is optional. You can use the display for graphical output without connecting the touch-related pins.

Q: Is there a recommended library for this module?
A: The TFT_eSPI library is highly recommended for this module due to its performance and compatibility with the ILI9488 controller.
