How to Use Micro SD Card Module: Examples, Pinouts, and Specs

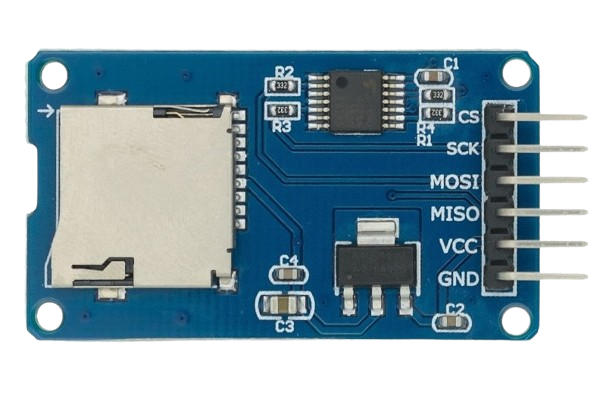

The Micro SD Card Module is a compact and versatile component designed to interface Micro SD cards with microcontrollers. It enables the storage and retrieval of data, making it an essential tool for projects requiring large amounts of data logging, file storage, or multimedia handling. The module is equipped with a built-in voltage regulator and level shifters, allowing it to work seamlessly with both 3.3V and 5V systems.

• Data logging (e.g., temperature, humidity, or sensor readings)
• File storage for multimedia (e.g., audio, video, or images)
• Bootloading or firmware updates
• Storing configuration files for embedded systems
• Projects requiring large, non-volatile memory

Below are the key technical details of the Micro SD Card Module:

The Micro SD Card Module typically has six pins. Below is the pinout and description:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Connect SPI Pins:
   • Connect the MISO, MOSI, SCK, and CS pins to the corresponding SPI pins on your microcontroller.
   • For Arduino UNO, the SPI pins are:
     • MISO: Pin 12
     • MOSI: Pin 11
     • SCK: Pin 13
     • CS: Any digital pin (commonly Pin 10)
3. Insert the Micro SD Card: Ensure the card is formatted as FAT16 or FAT32 before inserting it into the module.
4. Load the Required Library: For Arduino, use the SD library to interface with the module.

Below is an example code snippet to initialize the Micro SD Card Module and write data to a file:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the SD card module
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Initialize the SD card
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present");
    // Stop further execution if the card initialization fails
    while (1);
  }
  Serial.println("Card initialized successfully!");

  // Open a file for writing
  File dataFile = SD.open("data.txt", FILE_WRITE);

  // Check if the file opened successfully
  if (dataFile) {
    dataFile.println("Hello, Micro SD Card!");
    dataFile.close(); // Close the file to save changes
    Serial.println("Data written to file.");
  } else {
    Serial.println("Error opening file for writing.");
  }
}

void loop() {
  // Nothing to do here
}

• Voltage Compatibility: Ensure the module is powered within its operating voltage range (3.3V to 5V).
• SD Card Formatting: Always format the Micro SD card as FAT16 or FAT32 before use.
• SPI Speed: Use a suitable SPI clock speed to ensure reliable communication.
• File Handling: Always close files after reading or writing to prevent data corruption.
• Static Protection: Handle the module and SD card carefully to avoid damage from static electricity.

1. SD Card Initialization Fails

   • Cause: Incorrect wiring or incompatible SD card.
   • Solution: Double-check the connections and ensure the SD card is formatted as FAT16 or FAT32.

2. File Not Found or Cannot Be Opened

   • Cause: Incorrect file path or file name.
   • Solution: Verify the file name and ensure it matches exactly, including case sensitivity.

3. Data Corruption

   • Cause: Improper file handling or power loss during write operations.
   • Solution: Always close files after use and avoid sudden power interruptions.

4. Module Not Detected

   • Cause: Faulty module or incorrect SPI configuration.
   • Solution: Test the module with another microcontroller and verify the SPI settings.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, the module is compatible with both 3.3V and 5V systems due to its built-in voltage regulator and level shifters.

Q: What is the maximum capacity of the Micro SD card supported?
A: The module typically supports Micro SD cards up to 32GB formatted as FAT16 or FAT32.

Q: Can I use multiple Micro SD Card Modules on the same SPI bus?
A: Yes, you can use multiple modules by assigning a unique CS pin to each module.

Q: How do I check if the SD card is inserted?
A: You can attempt to initialize the SD card using the SD.begin() function. If it fails, the card may not be inserted or is incompatible.

By following this documentation, you can effectively integrate the Micro SD Card Module into your projects for reliable data storage and retrieval.
