How to Use BUCK: Examples, Pinouts, and Specs

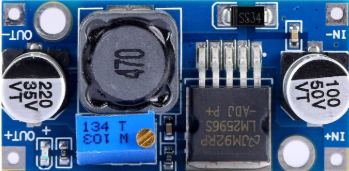

The BUCK DC/DC converter, manufactured by HUAREW, is a highly efficient DC-DC step-down voltage regulator. It is designed to convert a higher input voltage to a lower output voltage while maintaining high efficiency and stepping up the current. This component is widely used in power management systems, battery-powered devices, and embedded systems where efficient voltage regulation is critical.

• Power supply for microcontrollers and embedded systems
• Battery charging circuits
• LED drivers
• Industrial automation systems
• Consumer electronics requiring efficient voltage regulation

The following table outlines the key technical specifications of the BUCK DC/DC converter:

The BUCK DC/DC converter typically has the following pin configuration:

1. Connect the Input Voltage (VIN):
   Attach the input voltage source (e.g., a battery or power supply) to the VIN pin. Ensure the input voltage is within the specified range (4.5V to 40V).

2. Connect the Ground (GND):
   Connect the GND pin to the circuit ground.

3. Connect the Output Voltage (VOUT):
   Attach the load or device requiring the regulated voltage to the VOUT pin. Ensure the load does not exceed the maximum output current (3A).

4. Optional Pins:

   • If the EN pin is available, connect it to a logic HIGH signal to enable the converter or to a logic LOW signal to disable it.
   • Use the FB pin to adjust the output voltage by connecting an appropriate resistor divider network.

5. Add External Components:

   • Place an input capacitor (e.g., 10µF) between VIN and GND to stabilize the input voltage.
   • Place an output capacitor (e.g., 22µF) between VOUT and GND to reduce output voltage ripple.
   • Use an appropriate inductor (e.g., 47µH) to ensure efficient energy transfer.

• Heat Dissipation: Ensure proper heat dissipation by using a heatsink or adequate ventilation if the converter operates at high currents.
• Input Voltage: Always verify that the input voltage is within the specified range to avoid damaging the component.
• Output Voltage Adjustment: If the output voltage needs to be adjusted, calculate the resistor values for the feedback network carefully.

The following example demonstrates how to use the BUCK DC/DC converter to power an Arduino UNO with a 12V input source and a 5V output.

• Connect the 12V input source to the VIN pin of the BUCK converter.
• Connect the GND pin of the BUCK converter to the Arduino GND.
• Connect the VOUT pin of the BUCK converter to the 5V pin of the Arduino UNO.

// Example code to blink an LED using Arduino UNO powered by BUCK DC/DC converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. No Output Voltage:

   • Cause: The input voltage is not connected or is outside the specified range.
   • Solution: Verify the input voltage and ensure proper connections.

2. Excessive Heat:

   • Cause: The load current exceeds the maximum rating, or there is insufficient heat dissipation.
   • Solution: Reduce the load current or add a heatsink to the converter.

3. Output Voltage Ripple:

   • Cause: Insufficient output capacitance or poor-quality capacitors.
   • Solution: Use low-ESR capacitors with appropriate capacitance values.

4. Converter Not Turning On:

   • Cause: The EN pin is not connected or is held LOW.
   • Solution: Connect the EN pin to a logic HIGH signal or VIN.

Q1: Can the BUCK DC/DC converter handle reverse polarity on the input?
A1: No, the converter does not have built-in reverse polarity protection. Use a diode in series with the input to prevent damage.

Q2: How do I calculate the feedback resistor values for a specific output voltage?
A2: Use the formula:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R1}{R2}\right) ]
where ( V_{REF} ) is the reference voltage (typically 1.25V), and ( R1 ) and ( R2 ) are the resistors in the feedback network.

Q3: Can I use the BUCK DC/DC converter for audio applications?
A3: Yes, but ensure proper filtering to minimize noise and ripple that could affect audio quality.

Q4: What is the maximum efficiency I can expect?
A4: The converter can achieve up to 95% efficiency under optimal conditions, such as proper input/output voltage ratios and load currents.
