How to Use Rockblock 9603: Examples, Pinouts, and Specs

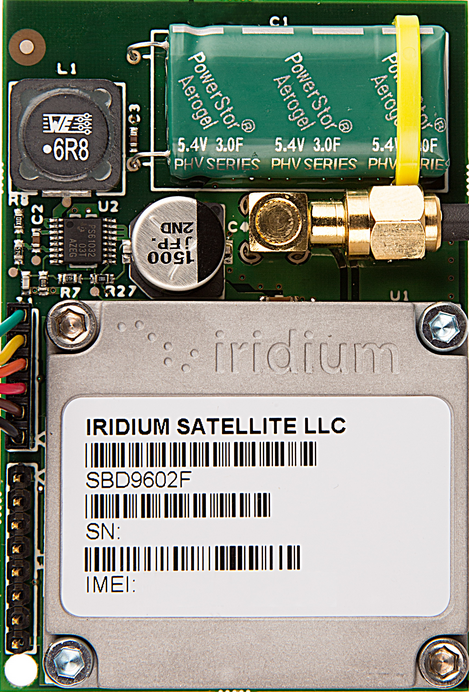

The Rockblock 9603 is a compact satellite communication module that enables global data transmission via the Iridium satellite network. It is designed for low-power applications, making it ideal for use in remote monitoring, Internet of Things (IoT) devices, and maritime communications. With its small form factor and robust design, the Rockblock 9603 is well-suited for applications requiring reliable communication in remote or harsh environments.

• Remote environmental monitoring (e.g., weather stations, wildlife tracking)
• IoT devices in remote or off-grid locations
• Maritime communication systems
• Emergency communication devices
• Asset tracking and fleet management

The Rockblock 9603 is a highly efficient and versatile module. Below are its key technical specifications:

The Rockblock 9603 has a simple pinout for easy integration into your circuit. Below is the pin configuration:

1. Power Supply: Ensure a stable 5V regulated power supply capable of providing at least 1.5 A during transmission.
2. UART Communication: Connect the TX and RX pins of the Rockblock 9603 to the RX and TX pins of your microcontroller, respectively. Use a logic level shifter if your microcontroller operates at 5V logic levels.
3. Antenna: Attach an external Iridium-compatible antenna to the U.FL connector. Ensure the antenna has a clear view of the sky for optimal performance.
4. Reset Pin: Optionally, connect the RST pin to a GPIO pin on your microcontroller for manual or software-controlled resets.

Below is an example of how to interface the Rockblock 9603 with an Arduino UNO:

• Connect the Rockblock 9603's VCC pin to the Arduino's 5V pin.
• Connect the GND pin to the Arduino's GND.
• Use a logic level shifter to connect the Rockblock's TX and RX pins to the Arduino's RX (pin 0) and TX (pin 1), respectively.
• Connect an external antenna to the Rockblock 9603.

#include <SoftwareSerial.h>

// Define the RX and TX pins for SoftwareSerial
SoftwareSerial rockblockSerial(10, 11); // RX = pin 10, TX = pin 11

void setup() {
  // Initialize serial communication with the Rockblock 9603
  rockblockSerial.begin(19200); // Rockblock default baud rate
  Serial.begin(9600); // For debugging via Serial Monitor

  Serial.println("Initializing Rockblock 9603...");
}

void loop() {
  // Send a test message to the Rockblock 9603
  if (Serial.available()) {
    String message = Serial.readString();
    rockblockSerial.println(message); // Send message to Rockblock
    Serial.println("Message sent to Rockblock: " + message);
  }

  // Check for incoming messages from the Rockblock 9603
  if (rockblockSerial.available()) {
    String response = rockblockSerial.readString();
    Serial.println("Response from Rockblock: " + response);
  }
}

• Antenna Placement: Ensure the antenna has a clear line of sight to the sky for reliable satellite communication.
• Power Supply: Use a power supply capable of handling the high current draw during transmission (up to 1.5 A).
• UART Logic Levels: The Rockblock 9603 operates at 3.3V logic levels. Use a level shifter if your microcontroller operates at 5V logic levels.

1. No Network Connection:

   • Ensure the antenna is properly connected and has a clear view of the sky.
   • Check the NET pin for network status. If it is low, the module is not connected to the network.

2. High Power Consumption:

   • Verify that the power supply can provide sufficient current (1.5 A during transmission).
   • Check for any short circuits or incorrect wiring.

3. No Response from Module:

   • Ensure the UART connections (TX and RX) are correct.
   • Verify that the baud rate is set to 19200 in your code.

4. Data Transmission Fails:

   • Confirm that the module is properly registered on the Iridium network.
   • Check for any errors in the transmitted data format.

Q: Can the Rockblock 9603 be used indoors?
A: The module requires a clear view of the sky for reliable satellite communication. Indoor use is not recommended unless an external antenna is placed outdoors.

Q: What is the maximum data size for transmission?
A: The Rockblock 9603 supports a maximum message size of 340 bytes for uplink and 270 bytes for downlink.

Q: Can I power the module directly from a battery?
A: Yes, as long as the battery provides a stable 5V regulated output and can handle the peak current draw of 1.5 A during transmission.

Q: How do I check the network status?
A: Monitor the NET pin. A high signal indicates that the module is connected to the Iridium network.

By following this documentation, you can effectively integrate the Rockblock 9603 into your projects and ensure reliable satellite communication.
