How to Use STM32H723ZGT6 : Examples, Pinouts, and Specs

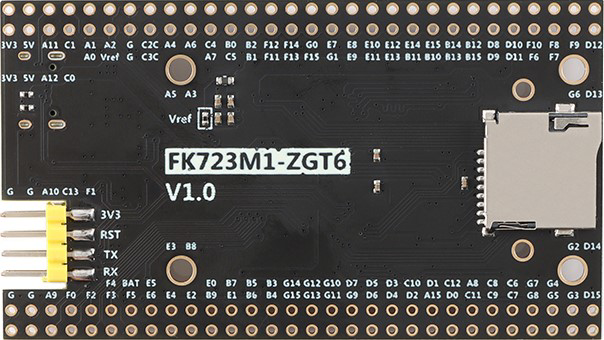

The STM32H723ZGT6 is a high-performance microcontroller developed by STMicroelectronics. It is based on the ARM Cortex-M7 core, which operates at a frequency of up to 550 MHz. This microcontroller is designed for advanced applications that demand high processing power, low power consumption, and extensive connectivity options. It is well-suited for industrial automation, IoT devices, motor control, medical equipment, and consumer electronics.

• Industrial control systems
• IoT edge devices
• Motor control and robotics
• Medical instrumentation
• Audio processing and multimedia applications
• High-performance data acquisition systems

The STM32H723ZGT6 comes in an LQFP144 package with 144 pins. Below is a summary of key pin functions:

For a complete pinout, refer to the STM32H723ZGT6 datasheet.

1. Power Supply: Ensure the microcontroller is powered with a stable voltage between 1.62 V and 3.6 V. Use decoupling capacitors (e.g., 0.1 µF) near the VDD pins to reduce noise.
2. Clock Configuration: The STM32H723ZGT6 supports internal and external clock sources. For high-performance applications, use an external crystal oscillator (e.g., 8 MHz) connected to the HSE pins.
3. Programming: Use an ST-LINK programmer/debugger to upload firmware via the SWD (Serial Wire Debug) interface.
4. GPIO Configuration: Configure GPIO pins as input, output, or alternate function using the STM32CubeMX tool or HAL library.
5. Peripherals: Enable and configure peripherals (e.g., USART, SPI, I2C) in the firmware using the STM32 HAL or LL libraries.

The STM32H723ZGT6 can be programmed using the Arduino IDE with the STM32 core installed. Below is an example of blinking an LED connected to pin PA5:

// Include the STM32 HAL library
#include <Arduino.h>

// Define the LED pin
#define LED_PIN PA5

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set PA5 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(500);                  // Wait for 500 ms
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(500);                  // Wait for 500 ms
}

• Power Management: Use low-power modes (e.g., Sleep, Stop, Standby) to reduce power consumption in battery-powered applications.
• Debugging: Ensure the SWD pins (SWCLK and SWDIO) are accessible for debugging and programming.
• Electromagnetic Interference (EMI): Use proper grounding and shielding techniques to minimize EMI in high-speed applications.

1. Microcontroller Not Responding:

   • Cause: Incorrect power supply or missing decoupling capacitors.
   • Solution: Verify the power supply voltage and add decoupling capacitors near the VDD pins.

2. Unable to Program the Microcontroller:

   • Cause: Incorrect SWD connection or locked flash memory.
   • Solution: Check the SWD connections and use the ST-LINK utility to unlock the flash memory if needed.

3. Peripheral Not Working:

   • Cause: Incorrect pin configuration or clock settings.
   • Solution: Double-check the peripheral initialization code and ensure the clock source is configured correctly.

4. High Power Consumption:

   • Cause: Unused peripherals or incorrect power mode.
   • Solution: Disable unused peripherals and use low-power modes in the firmware.

• Q: Can the STM32H723ZGT6 run FreeRTOS?

  • A: Yes, the STM32H723ZGT6 is compatible with FreeRTOS and other real-time operating systems.

• Q: What is the maximum ADC sampling rate?

  • A: The ADC supports a maximum sampling rate of 3.6 MSPS.

• Q: How do I enable Ethernet functionality?

  • A: Connect an external PHY to the Ethernet pins and configure the Ethernet peripheral in the firmware.

• Q: Can I use the STM32H723ZGT6 with Arduino libraries?

  • A: Yes, with the STM32 core installed in the Arduino IDE, you can use Arduino libraries and functions.

This concludes the documentation for the STM32H723ZGT6 microcontroller. For more details, refer to the official datasheet and reference manual provided by STMicroelectronics.
