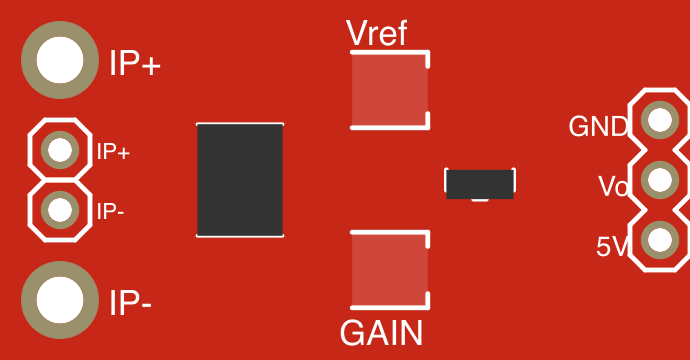

How to Use ACS712 Low Current Sensor Board v12: Examples, Pinouts, and Specs

The ACS712 Low Current Sensor Board v12 (Manufacturer Part ID: SEN-08883) by SparkFun Electronics is a current sensing module designed to measure both AC and DC currents. It leverages the Hall effect to provide an analog voltage output proportional to the current flowing through the conductor. This module is widely used in applications such as power monitoring, energy management, motor control, and overcurrent protection.

• Power consumption monitoring in appliances
• Energy metering in renewable energy systems
• Overcurrent detection in motor control circuits
• Battery management systems
• General-purpose current sensing in embedded systems

The following table outlines the key technical details of the ACS712 Low Current Sensor Board v12:

The ACS712 module has three pins for interfacing:

Additionally, the module has two screw terminals for connecting the current-carrying conductor:

1. Power the Module: Connect the VCC pin to a 5V DC power supply and the GND pin to the ground of your circuit.
2. Connect the Load: Pass the current-carrying conductor through the screw terminals (IP+ and IP-). Ensure the current does not exceed the module's rated range.
3. Read the Output: The OUT pin provides an analog voltage proportional to the current. For 0A, the output voltage is approximately 2.5V. The sensitivity is 185 mV/A, meaning the output voltage changes by 185 mV for every 1A of current.

• Calibration: For precise measurements, calibrate the sensor by measuring the output voltage at 0A and adjusting your calculations accordingly.
• Noise Filtering: Add a capacitor (e.g., 0.1 µF) between the OUT pin and GND to reduce noise in the output signal.
• Current Direction: Positive current flows from IP+ to IP-. Reverse current will result in a proportional decrease in the output voltage below 2.5V.
• Safety: Ensure the current through the conductor does not exceed the module's rated range to avoid damage.

Below is an example code snippet to read current using the ACS712 module with an Arduino UNO:

// Include necessary libraries (if any)

// Define the analog pin connected to the OUT pin of ACS712
const int sensorPin = A0;

// Define the sensitivity of the ACS712 module (185 mV/A for ±5A variant)
const float sensitivity = 0.185; // in volts per ampere

// Define the reference voltage of the Arduino (typically 5V)
const float vRef = 5.0;

// Define the zero-current voltage (2.5V for ACS712)
const float zeroCurrentVoltage = 2.5;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Read the analog value from the sensor
  int sensorValue = analogRead(sensorPin);

  // Convert the analog value to voltage
  float sensorVoltage = (sensorValue / 1023.0) * vRef;

  // Calculate the current in amperes
  float current = (sensorVoltage - zeroCurrentVoltage) / sensitivity;

  // Print the current value to the Serial Monitor
  Serial.print("Current: ");
  Serial.print(current);
  Serial.println(" A");

  delay(1000); // Wait for 1 second before the next reading
}

• Ensure the ACS712 module is securely connected to the Arduino.
• Use a multimeter to verify the current readings for calibration.

1. No Output Voltage or Incorrect Readings

   • Cause: Incorrect wiring or loose connections.
   • Solution: Double-check all connections, especially the VCC, GND, and OUT pins.

2. High Noise in Output Signal

   • Cause: Electrical noise or lack of filtering.
   • Solution: Add a capacitor (e.g., 0.1 µF) between the OUT pin and GND to filter noise.

3. Output Voltage Does Not Change

   • Cause: Current through the conductor is too low or zero.
   • Solution: Verify the current flow through the conductor and ensure it is within the module's range.

4. Overheating of the Module

   • Cause: Current exceeds the module's rated range.
   • Solution: Ensure the current through the conductor does not exceed ±5A.

Q1: Can the ACS712 measure both AC and DC currents?
Yes, the ACS712 can measure both AC and DC currents. The output voltage will vary proportionally with the instantaneous current.

Q2: How do I interpret the output voltage?
The output voltage is centered at 2.5V for 0A. A positive current increases the voltage above 2.5V, while a negative current decreases it below 2.5V.

Q3: Can I use the ACS712 with a 3.3V microcontroller?
Yes, but ensure the output voltage range of the ACS712 (0.5V to 4.5V) is compatible with the ADC input range of your microcontroller.

Q4: What is the maximum current the ACS712 can handle?
The ACS712 module is designed for a maximum current of ±5A. Exceeding this limit may damage the sensor.

Q5: How do I improve the accuracy of the sensor?
Calibrate the sensor by measuring the output voltage at 0A and adjusting your calculations accordingly. Use a stable power supply and minimize noise in the circuit.

This concludes the documentation for the ACS712 Low Current Sensor Board v12.
