How to Use Battery Holders: Examples, Pinouts, and Specs

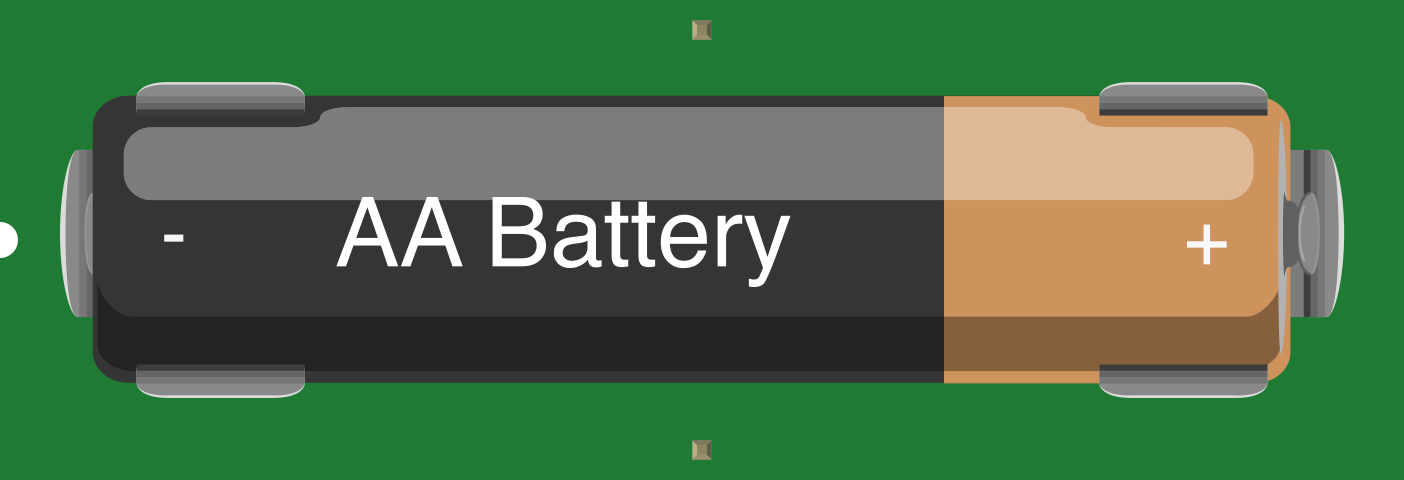

Battery holders are devices used to securely hold batteries in place within a circuit, ensuring proper electrical contact and easy replacement. They are designed to accommodate various battery sizes, such as AA, AAA, 9V, or coin cells, and are available in different configurations, including single-cell and multi-cell holders. Battery holders are essential for portable electronic devices, DIY projects, and prototyping, as they provide a reliable and reusable power source connection.

• Portable electronic devices (e.g., flashlights, remote controls)
• DIY electronics and prototyping
• Robotics and small motorized projects
• Educational kits and STEM projects
• Backup power systems

• Material: Plastic (typically ABS or polycarbonate) with metal contacts (nickel-plated or stainless steel)
• Battery Compatibility: Varies by model (e.g., AA, AAA, 9V, CR2032)
• Mounting Options: Panel mount, PCB mount, or free-standing
• Connection Type: Solder tabs, wire leads, or snap connectors
• Operating Temperature: -20°C to 60°C (typical)

1. Select the Appropriate Holder: Choose a holder that matches the size and type of battery required for your circuit.
2. Insert the Battery: Place the battery into the holder, ensuring correct polarity (positive and negative terminals aligned with the holder's markings).
3. Connect to the Circuit:
   • For holders with wire leads, solder or connect the wires to the circuit (red for positive, black for negative).
   • For PCB-mounted holders, solder the holder's pins directly onto the PCB.
   • For snap connectors (e.g., 9V holders), attach the connector to the battery and connect the wires to the circuit.
4. Secure the Holder: If necessary, use screws, adhesive, or clips to secure the holder in place.

• Polarity: Always check the polarity of the battery and holder before connecting to avoid damage to the circuit.
• Current Rating: Ensure the holder's contacts can handle the current required by your circuit.
• Mounting: Secure the holder to prevent movement or disconnection during operation.
• Battery Replacement: Use holders that allow easy access for replacing batteries in portable devices.
• Short Circuit Protection: Avoid shorting the terminals of the holder to prevent damage or overheating.

To power an Arduino UNO using a 9V battery holder:

1. Connect the positive wire (red) from the holder to the Arduino's VIN pin.
2. Connect the negative wire (black) from the holder to the Arduino's GND pin.

// Example code to blink an LED using an Arduino powered by a 9V battery holder

const int ledPin = 13; // Pin connected to the built-in LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. Battery Not Making Contact:

   • Cause: Loose or corroded contacts.
   • Solution: Clean the contacts with isopropyl alcohol and ensure the battery is seated properly.

2. No Power to the Circuit:

   • Cause: Incorrect polarity or disconnected wires.
   • Solution: Verify the battery is inserted with the correct polarity and check all connections.

3. Overheating:

   • Cause: Short circuit or excessive current draw.
   • Solution: Inspect the circuit for shorts and ensure the battery holder is rated for the current.

4. Battery Drains Quickly:

   • Cause: High standby current in the circuit or a partially discharged battery.
   • Solution: Use fresh batteries and check the circuit's power consumption.

• Can I use rechargeable batteries with a battery holder? Yes, as long as the holder is compatible with the size and voltage of the rechargeable batteries.

• How do I secure a battery holder in a project? Use screws, adhesive tape, or mounting brackets, depending on the holder's design and your project's requirements.

• What should I do if the holder's wires break? Strip the wire insulation, solder the broken wire, and insulate the connection with heat shrink tubing or electrical tape.

• Can I connect multiple battery holders in series or parallel? Yes, you can connect holders in series to increase voltage or in parallel to increase capacity, but ensure proper wiring and polarity.
