How to Use Power Jack: Examples, Pinouts, and Specs

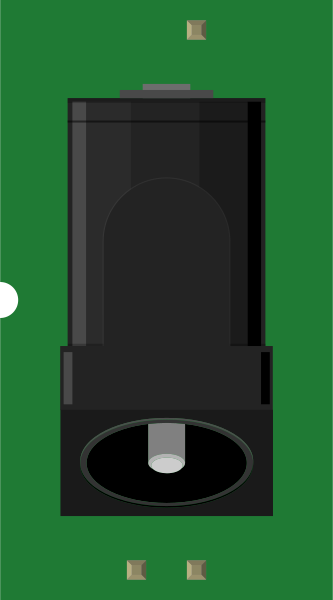

Image of Power Jack
Cirkit Designer LogoDesign with Power Jack in Cirkit Designer

Introduction

A Power Jack is a socket used to connect an external power supply to a device, allowing it to receive electrical power for operation. It is commonly found in electronic devices such as laptops, development boards, and other portable or stationary equipment that requires a reliable power connection. Power Jacks are designed to accommodate specific plug sizes and voltage/current ratings, ensuring compatibility with the intended power source.

Explore Projects Built with Power Jack

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Adjustable Voltage Regulator with Power Jack
Image of batteries : A project utilizing Power Jack in a practical application
This circuit takes a 7V input from a battery and uses a Step Up Boost Power Converter to increase the voltage to a higher, adjustable level. The boosted voltage is then supplied to a power jack for external use.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control System with Push Switches and Boost Converter
Image of Power Setup Updated 10/12: A project utilizing Power Jack in a practical application
This circuit consists of multiple LEDs, push switches, and power jacks, designed to control the illumination of the LEDs. Each LED is connected to a power jack through a push switch, allowing individual control of each LED. Additionally, the circuit includes a 7-inch WaveShare display, a boost converter, and fans, all powered through a terminal block.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Control Circuit with Push Switches and Relay
Image of Power Setup: A project utilizing Power Jack in a practical application
This circuit consists of multiple LEDs, push switches, power jacks, a battery pack, a boost converter, and a relay. The push switches control the power to the LEDs, which are powered by the battery pack and various power jacks. The boost converter and relay are used to manage and regulate the power supply to the LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Multi-Voltage Supply with Barrel Jack Connectors
Image of Battery Setup: A project utilizing Power Jack in a practical application
This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Power Jack

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of batteries : A project utilizing Power Jack in a practical application
Battery-Powered Adjustable Voltage Regulator with Power Jack
This circuit takes a 7V input from a battery and uses a Step Up Boost Power Converter to increase the voltage to a higher, adjustable level. The boosted voltage is then supplied to a power jack for external use.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Setup Updated 10/12: A project utilizing Power Jack in a practical application
Battery-Powered LED Control System with Push Switches and Boost Converter
This circuit consists of multiple LEDs, push switches, and power jacks, designed to control the illumination of the LEDs. Each LED is connected to a power jack through a push switch, allowing individual control of each LED. Additionally, the circuit includes a 7-inch WaveShare display, a boost converter, and fans, all powered through a terminal block.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Setup: A project utilizing Power Jack in a practical application
Battery-Powered LED Control Circuit with Push Switches and Relay
This circuit consists of multiple LEDs, push switches, power jacks, a battery pack, a boost converter, and a relay. The push switches control the power to the LEDs, which are powered by the battery pack and various power jacks. The boost converter and relay are used to manage and regulate the power supply to the LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Battery Setup: A project utilizing Power Jack in a practical application
Battery-Powered Multi-Voltage Supply with Barrel Jack Connectors
This circuit consists of multiple 9V batteries connected in series and parallel configurations to provide power to three separate 2.1mm barrel jacks. Each barrel jack receives a different combination of series and parallel battery connections to achieve the desired voltage and current levels.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering development boards like Arduino, Raspberry Pi, and similar devices.
  • Providing power to consumer electronics such as laptops, routers, and audio equipment.
  • Used in DIY electronics projects to connect external power supplies.
  • Industrial applications where a secure and detachable power connection is required.

Technical Specifications

Below are the general technical specifications for a standard Power Jack. Note that specific models may vary, so always refer to the datasheet of the exact component you are using.

Key Technical Details

  • Voltage Rating: Typically 12V to 24V (varies by model).
  • Current Rating: Commonly 1A to 5A.
  • Connector Type: Barrel connector (e.g., 5.5mm outer diameter, 2.1mm or 2.5mm inner diameter).
  • Mounting Style: Through-hole or surface-mount.
  • Polarity: Center pin positive (most common) or center pin negative (less common).
  • Material: Metal contacts with plastic housing for insulation.

Pin Configuration and Descriptions

The Power Jack typically has three pins:

Pin Name Description
Positive (VCC) Connects to the positive terminal of the power supply.
Negative (GND) Connects to the ground terminal of the power supply.
Switch Pin Optional pin used to detect the presence of a plug or to switch power sources.

Usage Instructions

How to Use the Power Jack in a Circuit

  1. Identify the Pinout: Refer to the datasheet or markings on the Power Jack to identify the positive (VCC), negative (GND), and switch pins.
  2. Connect to Power Source: Ensure the external power supply matches the voltage and current requirements of your circuit.
  3. Soldering: If using a through-hole Power Jack, solder the pins to the PCB. For surface-mount types, use appropriate soldering techniques.
  4. Polarity Check: Verify the polarity of the power supply and ensure it matches the polarity of the Power Jack.
  5. Optional Switch Pin: If your Power Jack has a switch pin, you can use it to detect when a plug is inserted or to toggle between power sources.

Important Considerations and Best Practices

  • Voltage and Current Ratings: Always ensure the Power Jack can handle the voltage and current of your power supply.
  • Polarity: Double-check the polarity of the power supply to avoid damaging your circuit.
  • Secure Mounting: Ensure the Power Jack is securely mounted to prevent loose connections.
  • Heat Dissipation: For high-current applications, ensure proper heat dissipation to avoid overheating.
  • Use with Arduino UNO: The Arduino UNO typically uses a 2.1mm center-positive Power Jack for external power. Ensure your power supply provides 7V to 12V for optimal operation.

Example: Connecting a Power Jack to an Arduino UNO

// Example code to use external power with Arduino UNO
// Ensure the power supply is connected to the Power Jack
// and provides a voltage between 7V and 12V.

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  Serial.println("Arduino powered via Power Jack.");
}

void loop() {
  // Your main code here
  Serial.println("Running...");
  delay(1000); // Delay for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Power to the Circuit

    • Cause: Incorrect polarity or loose connection.
    • Solution: Verify the polarity of the power supply and ensure the Power Jack is securely connected.
  2. Overheating

    • Cause: Exceeding the current rating of the Power Jack.
    • Solution: Use a Power Jack with a higher current rating or reduce the load on the circuit.
  3. Intermittent Power

    • Cause: Loose solder joints or damaged Power Jack.
    • Solution: Inspect and re-solder the connections or replace the Power Jack.
  4. Plug Does Not Fit

    • Cause: Mismatch between the plug and Power Jack dimensions.
    • Solution: Use a plug that matches the Power Jack's specifications (e.g., 5.5mm outer diameter, 2.1mm inner diameter).

FAQs

  • Q: Can I use a Power Jack with a higher voltage rating than required?
    A: Yes, as long as the voltage rating of the Power Jack exceeds the voltage of your power supply, it is safe to use.

  • Q: How do I know if my Power Jack is center-positive or center-negative?
    A: Check the datasheet or look for polarity markings on the Power Jack. Most are center-positive by default.

  • Q: Can I use a Power Jack for AC power?
    A: No, Power Jacks are typically designed for DC power. Using them with AC power may damage the component or the connected device.

  • Q: What happens if I exceed the current rating of the Power Jack?
    A: Exceeding the current rating can cause overheating, damage to the Power Jack, or failure of the connection.

By following this documentation, you can effectively integrate a Power Jack into your electronic projects and ensure reliable operation.
