How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

Introduction

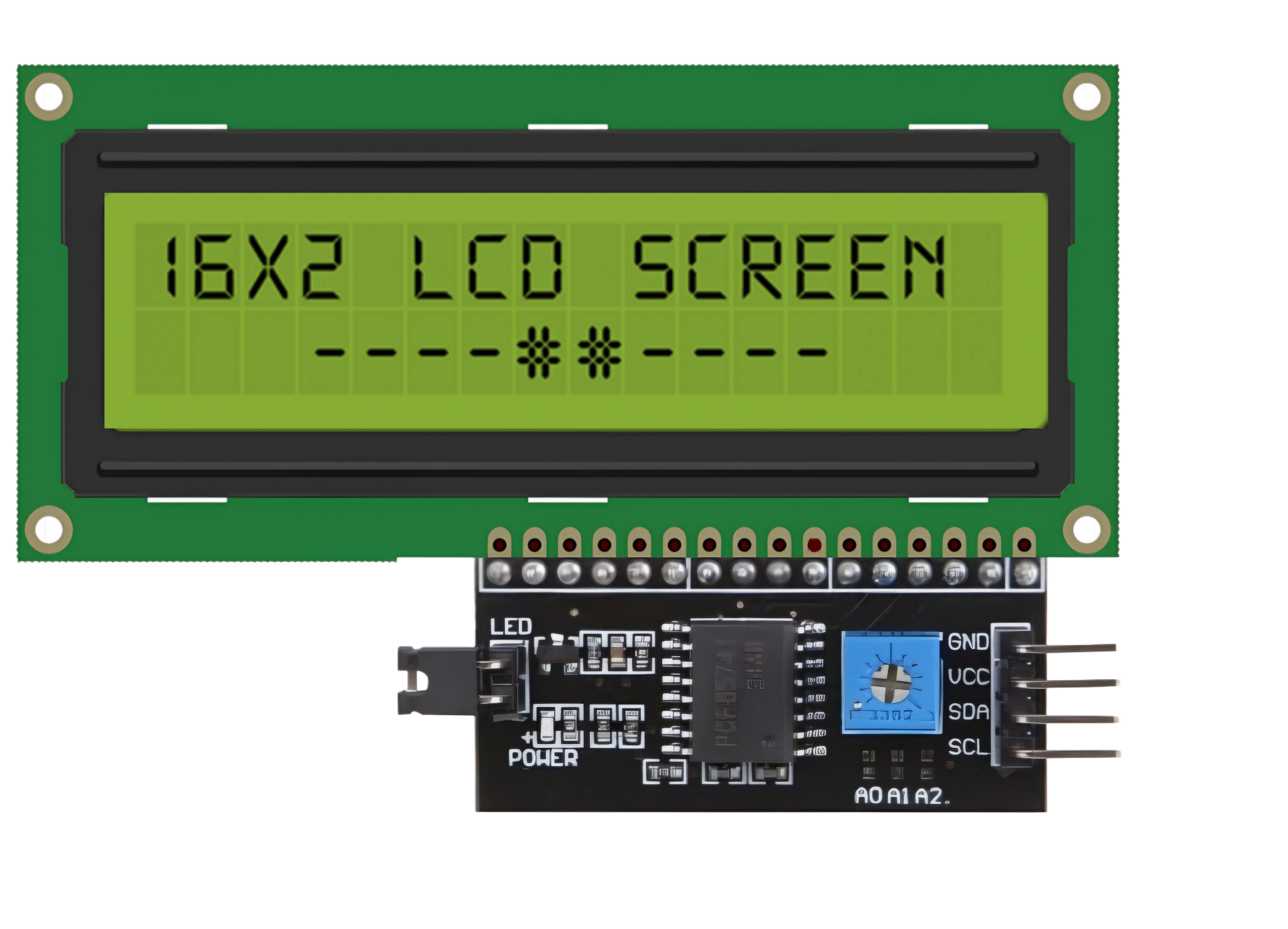

The LCD 16x2 with I2C interface is a versatile and widely used display module capable of showing 16 characters per line across 2 lines. It is equipped with an I2C (Inter-Integrated Circuit) interface, which simplifies communication with microcontrollers by reducing the number of required pins. This makes it an ideal choice for projects where pin availability is limited or where simplicity is desired.

Explore Projects Built with LCD 16x2 attached i2c

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

I2C LCD Display Module with Power Supply Interface

This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.

Open Project in Cirkit Designer

Arduino Leonardo Controlled LCD Display with I2C Interface

This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.

Open Project in Cirkit Designer

A-Star 32U4 Mini and I2C LCD Screen Battery-Powered Display

This circuit features an A-Star 32U4 Mini microcontroller connected to a 16x2 I2C LCD screen. The microcontroller provides power and ground to the LCD, and communicates with it via the I2C protocol using the A4 (SDA) and A5 (SCL) pins.

Open Project in Cirkit Designer

Arduino Mega 2560 I2C LCD Display Interface

This circuit consists of an Arduino Mega 2560 microcontroller connected to a 16x2 I2C LCD screen. The LCD screen is powered by the Arduino's 5V and GND pins, and communicates with the Arduino via the I2C protocol using the SCL and SDA pins.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Displaying sensor data in real-time
• User interfaces for embedded systems
• Menu-driven applications
• Educational and prototyping projects
• IoT devices requiring visual feedback

Technical Specifications

Key Technical Details

Pin Configuration and Descriptions

The I2C interface reduces the number of pins required to just four. Below is the pin configuration:

Usage Instructions

How to Use the Component in a Circuit

1. Wiring the LCD 16x2 with I2C to a Microcontroller:

   • Connect the VCC pin of the LCD to the 5V pin of the microcontroller.
   • Connect the GND pin of the LCD to the ground (GND) of the microcontroller.
   • Connect the SDA pin of the LCD to the I2C data pin of the microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin of the LCD to the I2C clock pin of the microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
     • Go to Sketch > Include Library > Manage Libraries.
     • Search for LiquidCrystal_I2C and install the library by Frank de Brabander.

3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

   // Include the LiquidCrystal_I2C library
   #include <Wire.h>
   #include <LiquidCrystal_I2C.h>

   // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
   LiquidCrystal_I2C lcd(0x27, 16, 2);

   void setup() {
     lcd.init(); // Initialize the LCD
     lcd.backlight(); // Turn on the backlight
     lcd.setCursor(0, 0); // Set cursor to the first column, first row
     lcd.print("Hello, World!"); // Print text on the LCD
   }

   void loop() {
     // No actions required in the loop for this example
   }


Important Considerations and Best Practices

• I2C Address: The default I2C address is typically 0x27 or 0x3F. If the LCD does not respond, use an I2C scanner sketch to determine the correct address.
• Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: Some modules have a potentiometer for adjusting the contrast. If characters are not visible, adjust the potentiometer.
• Backlight Control: The backlight can be turned on or off programmatically using the lcd.backlight() and lcd.noBacklight() functions.

Troubleshooting and FAQs

Common Issues and Solutions

1. No Display or Blank Screen:

   • Verify the wiring connections, especially VCC and GND.
   • Check the contrast adjustment potentiometer on the module.
   • Ensure the correct I2C address is being used in the code.

2. Flickering or Unstable Display:

   • Ensure the power supply is stable and sufficient (5V DC).
   • Check for loose connections in the circuit.

3. Incorrect or Garbled Characters:

   • Verify the I2C address and ensure it matches the module's address.
   • Ensure the correct library is installed and used in the code.

4. Backlight Not Working:

   • Check the backlight control functions in the code (lcd.backlight()).
   • Inspect the module for any physical damage to the backlight LED.

FAQs

Q1: How do I find the I2C address of my LCD module?
A1: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and it will print the detected I2C address in the Serial Monitor.

Q2: Can I use this LCD with a 3.3V microcontroller?
A2: Most I2C LCD modules are designed for 5V operation. If using a 3.3V microcontroller, a logic level shifter may be required for the SDA and SCL lines.

Q3: Can I connect multiple I2C devices to the same microcontroller?
A3: Yes, I2C supports multiple devices on the same bus. Ensure each device has a unique address.

Q4: How do I display text on the second line of the LCD?
A4: Use the lcd.setCursor(0, 1) function to set the cursor to the first column of the second row before printing text.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 with I2C interface in your projects.
