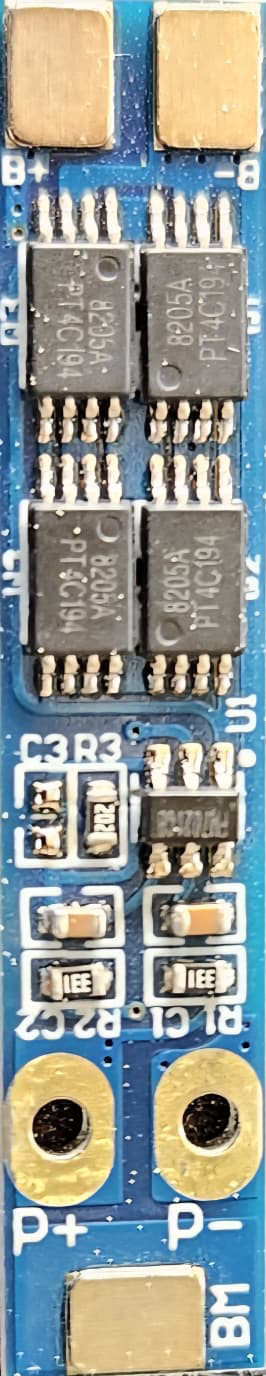

Image of 2S BMS
Cirkit Designer LogoDesign with 2S BMS in Cirkit Designer

Introduction

The 2S Battery Management System (BMS) is a compact and essential electronic module designed to manage and protect two series-connected lithium-ion battery cells. It ensures the safe operation of the battery pack by monitoring individual cell voltages, balancing the charge between cells, and providing protection against over-voltage, under-voltage, and over-current conditions. This component is widely used in battery-powered devices, such as portable electronics, electric tools, and small-scale energy storage systems.

Explore Projects Built with 2S BMS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
Image of servo power supply: A project utilizing 2S BMS in a practical application
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Cirkit Designer LogoOpen Project in Cirkit Designer
18650 Li-ion Battery Pack with BMS for 5V Power Supply
Image of battary: A project utilizing 2S BMS in a practical application
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing 2S BMS in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Li-ion Battery Management and Monitoring System with Voltage Regulation and Relay Control
Image of Portable Inverter: A project utilizing 2S BMS in a practical application
This is a power management system with a series-connected battery pack managed by a BMS, providing regulated power to a microcontroller and a fan. It includes voltage and current sensing, a relay for load control, and a step-up converter for an external power source.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 2S BMS

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of servo power supply: A project utilizing 2S BMS in a practical application
Battery-Powered Servo Control System with 2S 30A BMS and TP5100 Charger
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of battary: A project utilizing 2S BMS in a practical application
18650 Li-ion Battery Pack with BMS for 5V Power Supply
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing 2S BMS in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Portable Inverter: A project utilizing 2S BMS in a practical application
Li-ion Battery Management and Monitoring System with Voltage Regulation and Relay Control
This is a power management system with a series-connected battery pack managed by a BMS, providing regulated power to a microcontroller and a fan. It includes voltage and current sensing, a relay for load control, and a step-up converter for an external power source.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Lithium-ion battery packs for portable devices
  • Electric bicycles and scooters
  • DIY power banks and energy storage systems
  • Robotics and RC vehicles
  • Solar-powered systems

Technical Specifications

The following table outlines the key technical specifications of the 2S BMS:

Parameter Value
Battery Configuration 2S (2 cells in series)
Input Voltage Range 7.4V to 8.4V
Over-Voltage Protection 4.25V ± 0.05V per cell
Under-Voltage Protection 2.5V ± 0.05V per cell
Over-Current Protection 3A to 5A (varies by model)
Balancing Current 30mA to 60mA
Operating Temperature -40°C to 85°C
Dimensions Typically 20mm x 30mm x 3mm

Pin Configuration and Descriptions

The 2S BMS typically has the following pin configuration:

Pin Name Description
B- Battery negative terminal (connect to the negative terminal of the first cell)
B1 Connection point between the two cells in series
B+ Battery positive terminal (connect to the positive terminal of the second cell)
P- Power output negative terminal (connect to the load or charger negative)
P+ Power output positive terminal (connect to the load or charger positive)

Usage Instructions

How to Use the 2S BMS in a Circuit

  1. Connect the Battery Pack:

    • Connect the negative terminal of the first cell to the B- pin.
    • Connect the junction between the two cells to the B1 pin.
    • Connect the positive terminal of the second cell to the B+ pin.
  2. Connect the Load or Charger:

    • Connect the negative terminal of the load or charger to the P- pin.
    • Connect the positive terminal of the load or charger to the P+ pin.
  3. Verify Connections:

    • Double-check all connections to ensure proper polarity and secure contacts.
    • Ensure the battery pack voltage is within the supported range of the BMS.
  4. Power On:

    • Once all connections are verified, the BMS will automatically manage the battery pack, providing protection and balancing.

Important Considerations

  • Cell Matching: Use cells with similar capacities and internal resistances to ensure proper balancing and performance.
  • Heat Dissipation: Avoid enclosing the BMS in a sealed space without ventilation, as it may generate heat during operation.
  • Current Rating: Ensure the load current does not exceed the BMS's over-current protection rating.
  • Charging Voltage: Use a charger with a maximum output voltage of 8.4V for a 2S configuration.

Example: Using 2S BMS with Arduino UNO

The 2S BMS can be used to power an Arduino UNO. Below is an example of how to connect the BMS to the Arduino and monitor the battery voltage:

Circuit Diagram

  • Connect the P+ and P- terminals of the BMS to the Arduino's VIN and GND pins, respectively.
  • Use a voltage divider circuit to measure the battery voltage with an analog pin on the Arduino.

Arduino Code

// Define analog pin for voltage measurement
const int voltagePin = A0;

// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive
const float R2 = 1000.0;  // Resistor connected to ground

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(voltagePin); // Read analog value
  float voltage = (rawValue / 1023.0) * 5.0; // Convert to voltage (Arduino 5V ADC)

  // Adjust for voltage divider
  voltage = voltage * (R1 + R2) / R2;

  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait 1 second before next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. BMS Not Powering On:

    • Cause: Incorrect wiring or insufficient battery voltage.
    • Solution: Verify all connections and ensure the battery pack voltage is within the supported range.
  2. Over-Current Protection Triggered:

    • Cause: Load current exceeds the BMS's rated limit.
    • Solution: Reduce the load current or use a BMS with a higher current rating.
  3. Uneven Cell Voltages:

    • Cause: Cells have mismatched capacities or internal resistances.
    • Solution: Replace cells with matched specifications or allow the BMS to balance the cells over time.
  4. Excessive Heat:

    • Cause: High current draw or poor ventilation.
    • Solution: Ensure proper ventilation and avoid exceeding the BMS's current rating.

FAQs

  • Can I use the 2S BMS with other battery chemistries?

    • No, the 2S BMS is specifically designed for lithium-ion or lithium-polymer cells. Using it with other chemistries may result in improper operation or damage.
  • How long does cell balancing take?

    • The time required for balancing depends on the initial voltage difference between cells and the BMS's balancing current (typically 30mA to 60mA).
  • Can I connect multiple 2S BMS modules in parallel?

    • No, connecting multiple BMS modules in parallel is not recommended, as it may cause conflicts in voltage monitoring and protection circuits.

This concludes the documentation for the 2S BMS.
