How to Use BUCK: Examples, Pinouts, and Specs

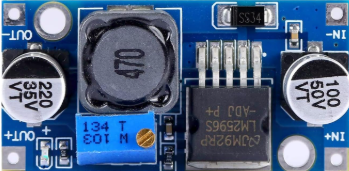

The BUCK DC/DC converter, manufactured by HUAREW, is a highly efficient DC-DC step-down voltage regulator. It is designed to convert a higher input voltage to a lower output voltage while maintaining high efficiency and stepping up the current. This component is widely used in power management systems, battery-powered devices, and embedded systems where efficient voltage regulation is critical.

• Power supply for microcontrollers and embedded systems
• Battery-powered devices (e.g., portable electronics)
• LED drivers
• Industrial automation systems
• Renewable energy systems (e.g., solar power regulators)

The following table outlines the key technical specifications of the BUCK DC/DC converter:

The BUCK DC/DC converter typically has the following pin configuration:

1. Connect the Input Voltage (VIN):
   Attach the input voltage source (e.g., a battery or DC power supply) to the VIN pin. Ensure the input voltage is within the specified range (4.5V to 40V).

2. Connect the Ground (GND):
   Connect the GND pin to the system ground.

3. Set the Output Voltage (VOUT):
   Use a resistor divider network connected to the FB pin to set the desired output voltage. Refer to the formula provided in the datasheet to calculate the resistor values.

4. Enable the Converter (EN):
   To enable the converter, connect the EN pin to a high logic level. To disable it, connect the EN pin to ground.

5. Connect the Load:
   Attach the load to the VOUT pin. Ensure the load does not exceed the maximum output current rating (3A).

6. Add External Components:
   Add input and output capacitors as recommended in the datasheet to ensure stable operation and minimize voltage ripple.

• Thermal Management: Ensure proper heat dissipation by using a heatsink or adequate PCB layout design, especially when operating at high currents.
• Input Voltage Range: Always verify that the input voltage is within the specified range to avoid damaging the component.
• Output Voltage Adjustment: Use precision resistors for the feedback network to achieve accurate output voltage regulation.
• Decoupling Capacitors: Place decoupling capacitors close to the VIN and VOUT pins to reduce noise and improve stability.

The BUCK DC/DC converter can be used to power an Arduino UNO by stepping down a higher voltage (e.g., 12V) to 5V. Below is an example circuit and Arduino code:

1. Connect a 12V DC power supply to the VIN pin of the BUCK converter.
2. Set the output voltage to 5V using the feedback resistor network.
3. Connect the VOUT pin of the BUCK converter to the 5V pin of the Arduino UNO.
4. Connect the GND pin of the BUCK converter to the GND pin of the Arduino UNO.

// Example code to blink an LED using Arduino UNO powered by BUCK DC/DC converter

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:

   • Cause: The EN pin is not connected or is at a low logic level.
   • Solution: Ensure the EN pin is connected to a high logic level to enable the converter.

2. Output Voltage is Incorrect:

   • Cause: Incorrect feedback resistor values.
   • Solution: Verify the resistor values in the feedback network and recalculate if necessary.

3. Excessive Heat Generation:

   • Cause: High current load or insufficient heat dissipation.
   • Solution: Use a heatsink or improve PCB thermal design. Reduce the load current if possible.

4. Voltage Ripple or Noise:

   • Cause: Insufficient decoupling capacitors.
   • Solution: Add or replace input/output capacitors with low ESR types.

Q1: Can the BUCK DC/DC converter handle AC input?
A1: No, the BUCK DC/DC converter is designed for DC input only. Use a rectifier circuit to convert AC to DC before connecting to the VIN pin.

Q2: How do I calculate the feedback resistor values?
A2: Use the formula provided in the datasheet:
[ V_{OUT} = V_{REF} \times \left(1 + \frac{R_1}{R_2}\right) ]
where ( V_{REF} ) is the reference voltage (typically 1.25V), and ( R_1 ) and ( R_2 ) are the feedback resistors.

Q3: Can I use the BUCK DC/DC converter for powering motors?
A3: Yes, but ensure the motor's current requirements do not exceed the maximum output current rating (3A).

Q4: What is the efficiency of the BUCK DC/DC converter?
A4: The efficiency can reach up to 95%, depending on the input voltage, output voltage, and load conditions.
