How to Use Molex Picoblade Series Header: Examples, Pinouts, and Specs

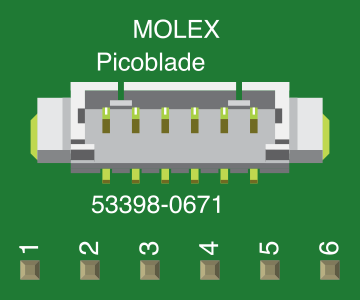

Image of Molex Picoblade Series Header
Cirkit Designer LogoDesign with Molex Picoblade Series Header in Cirkit Designer

Introduction

The Molex Picoblade Series Header (Part ID: 0533980671) is a compact, high-density connector designed for wire-to-board applications. With its low-profile design and reliable electrical performance, it is ideal for use in space-constrained electronic devices. This connector is widely used in consumer electronics, industrial equipment, medical devices, and automotive applications where compact and dependable connections are required.

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Peltier-Controlled Thermal Management System with SPST Switch
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
5-Pin Connector Synchronization Circuit
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Molex Picoblade Series Header

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini car refrigerator circuit: A project utilizing Molex Picoblade Series Header in a practical application
Peltier-Controlled Thermal Management System with SPST Switch
This circuit consists of multiple Peltier modules and fans connected in parallel to a digital power supply, with a rocker switch (SPST) controlling the power flow to one of the Peltier modules and multiple fans. The 2.1mm Barrel Jack with Terminal Block serves as the power input connector, and the rocker switch allows for selective enabling or disabling of the connected devices. The circuit is designed to provide cooling or heating through the Peltier modules while the fans assist in heat dissipation or air circulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Christmas-vending-machine-box: A project utilizing Molex Picoblade Series Header in a practical application
Smart Lighting System with Adafruit DotStar and MCP23017 I2C GPIO Expander
This circuit integrates multiple Adafruit DotStar LED strips powered by 12V power supplies, with ground connections managed through WAGO splicing connectors. The setup is designed to provide a stable power and ground distribution for the LED strips, ensuring synchronized and reliable operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Molex Picoblade Series Header in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of UMB_Cable: A project utilizing Molex Picoblade Series Header in a practical application
5-Pin Connector Synchronization Circuit
This circuit consists of four 5-pin connectors, where two of the connectors are fully interconnected pin-to-pin. The purpose of this setup could be to create a parallel connection between the two 5-pin connectors, possibly for signal distribution or redundancy.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Consumer electronics (e.g., cameras, wearables, and handheld devices)
  • Industrial control systems
  • Medical devices
  • Automotive electronics
  • Robotics and IoT devices

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer Molex
Series Picoblade
Part Number 0533980671
Connector Type Wire-to-Board
Number of Positions 6
Pitch 1.25 mm
Mounting Type Surface Mount (SMT)
Current Rating 1 A per contact
Voltage Rating 125 V AC/DC
Operating Temperature -25°C to +85°C
Contact Material Phosphor Bronze
Contact Plating Tin
Housing Material Nylon 66 (UL 94V-0 rated for flammability)

Pin Configuration and Descriptions

The Molex Picoblade Series Header (6-position) has the following pin configuration:

Pin Number Description Notes
1 Signal/Power Line 1 Can carry signal or power
2 Signal/Power Line 2 Can carry signal or power
3 Signal/Power Line 3 Can carry signal or power
4 Signal/Power Line 4 Can carry signal or power
5 Signal/Power Line 5 Can carry signal or power
6 Ground Common ground for the circuit

Usage Instructions

How to Use the Molex Picoblade Series Header in a Circuit

  1. PCB Design: Ensure your PCB layout includes a footprint compatible with the 1.25 mm pitch of the Picoblade header. Use Molex's recommended footprint dimensions for optimal fit.
  2. Soldering: The header is designed for surface-mount technology (SMT). Use a reflow soldering process for secure attachment to the PCB.
  3. Mating Connector: Use a compatible Molex Picoblade receptacle or cable assembly for proper mating. Ensure the mating connector matches the number of positions (6 in this case).
  4. Wiring: Crimp the wires to the mating connector terminals using the appropriate Molex crimping tool to ensure a reliable connection.
  5. Testing: After assembly, test the connections for continuity and ensure there are no short circuits.

Important Considerations and Best Practices

  • Current and Voltage Ratings: Do not exceed the specified current (1 A per contact) and voltage (125 V AC/DC) ratings to avoid overheating or damage.
  • Operating Environment: Ensure the component operates within the specified temperature range (-25°C to +85°C).
  • Connector Insertion/Removal: Avoid excessive force when mating or un-mating connectors to prevent damage to the contacts.
  • Crimping Tools: Use Molex-recommended crimping tools for proper wire termination and to maintain electrical integrity.

Example: Connecting to an Arduino UNO

The Molex Picoblade Series Header can be used to connect sensors or other peripherals to an Arduino UNO. Below is an example of wiring a sensor to the Arduino using the Picoblade connector.

Arduino Code Example

// Example: Reading data from a sensor connected via Molex Picoblade Header
// Pin 1: Sensor VCC (connected to Arduino 5V)
// Pin 2: Sensor GND (connected to Arduino GND)
// Pin 3: Sensor Signal (connected to Arduino A0)

const int sensorPin = A0; // Analog pin connected to the sensor signal
int sensorValue = 0;      // Variable to store the sensor reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the Serial Monitor
  delay(500); // Wait for 500 milliseconds before the next reading
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Loose Connections:

    • Issue: The connector feels loose or does not make proper contact.
    • Solution: Ensure the mating connector is fully inserted and locked. Check for bent or damaged pins.
  2. Overheating:

    • Issue: The connector or wires become hot during operation.
    • Solution: Verify that the current and voltage ratings are not being exceeded. Use thicker wires if necessary.
  3. Signal Interference:

    • Issue: Noise or interference in the signal lines.
    • Solution: Use shielded cables for signal lines and ensure proper grounding.
  4. Soldering Issues:

    • Issue: Poor solder joints or misalignment on the PCB.
    • Solution: Inspect the solder joints under a microscope and reflow if necessary. Use the recommended PCB footprint.

FAQs

Q1: Can the Molex Picoblade Series Header be used in high-vibration environments?
A1: Yes, the Picoblade connector is designed to provide reliable connections even in environments with moderate vibration. However, ensure proper mating and secure the wires to prevent stress on the connector.

Q2: What tools are recommended for crimping the wires?
A2: Molex recommends using their official crimping tools, such as the Molex 63819-0900, for precise and reliable wire termination.

Q3: Is the Picoblade header compatible with other Molex series connectors?
A3: No, the Picoblade header is specifically designed for use with the Picoblade series connectors and is not compatible with other Molex series.

Q4: Can this connector handle power delivery applications?
A4: Yes, it can handle low-power delivery applications, provided the current does not exceed 1 A per contact.

By following this documentation, users can effectively integrate the Molex Picoblade Series Header into their designs and troubleshoot common issues with ease.
