How to Use Seeed Studio XIAO ESP32C6: Examples, Pinouts, and Specs

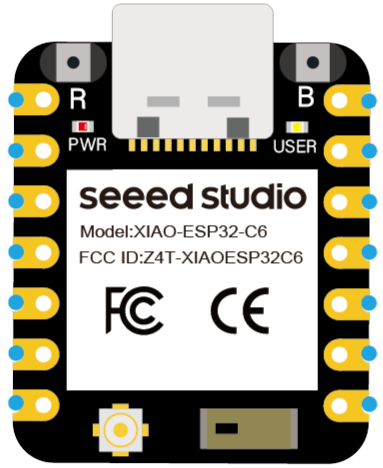

The Seeed Studio XIAO ESP32C6 is a compact and powerful microcontroller board based on the ESP32-C6 chip. It is designed for IoT (Internet of Things) applications, offering built-in Wi-Fi 6 and Bluetooth 5.0 Low Energy (BLE) capabilities. With its small form factor and robust wireless connectivity, the XIAO ESP32C6 is ideal for projects requiring efficient communication, low power consumption, and high performance.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable technology
• Remote monitoring and control systems
• Prototyping for Wi-Fi and Bluetooth-enabled projects

Below are the key technical details of the Seeed Studio XIAO ESP32C6:

The XIAO ESP32C6 features a total of 11 GPIO pins, which are multifunctional and can be configured for various purposes. Below is the pinout description:

1. Powering the Board:

   • Connect the XIAO ESP32C6 to your computer or power source using a USB-C cable. The board operates at 3.3V internally but accepts 5V input via USB-C.

2. Programming the Board:

   • The XIAO ESP32C6 is compatible with the Arduino IDE, PlatformIO, and ESP-IDF. Install the necessary board support package (BSP) for ESP32-C6 in your development environment.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the board.

4. Wireless Communication:

   • Utilize the built-in Wi-Fi 6 and Bluetooth 5.0 LE for wireless communication. Libraries such as WiFi.h and BLEDevice.h can be used for programming wireless features.

• Voltage Levels: Ensure that all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Deep Sleep Mode: Use the deep sleep mode for ultra-low power consumption in battery-powered applications.
• Pin Multiplexing: Some pins have multiple functions (e.g., GPIO, ADC, I2C). Configure them appropriately in your code to avoid conflicts.
• Heat Management: Although the board is efficient, ensure proper ventilation if used in high-temperature environments.

Below is an example of how to connect the XIAO ESP32C6 to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

const int ledPin = 2; // GPIO2 is connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
  Serial.begin(115200);    // Initialize serial communication

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Board Not Detected by Computer:

   • Ensure the USB-C cable is a data cable (not just a charging cable).
   • Check if the correct drivers for the XIAO ESP32C6 are installed on your computer.

2. Wi-Fi Connection Fails:

   • Verify the SSID and password are correct.
   • Ensure the Wi-Fi network is within range and supports 2.4 GHz (required by ESP32-C6).

3. Code Upload Fails:

   • Confirm that the correct board and port are selected in the Arduino IDE.
   • Press the reset button on the board before uploading the code.

• Reset the Board: If the board becomes unresponsive, press the reset button to restart it.
• Check Power Supply: Ensure the board is receiving sufficient power (5V via USB-C).
• Debugging: Use the Serial Monitor in the Arduino IDE to debug your code and monitor outputs.
• Update Firmware: Ensure the ESP32-C6 firmware and libraries are up to date for optimal performance.

By following this documentation, you can effectively utilize the Seeed Studio XIAO ESP32C6 for your IoT and wireless communication projects.
