Introduction

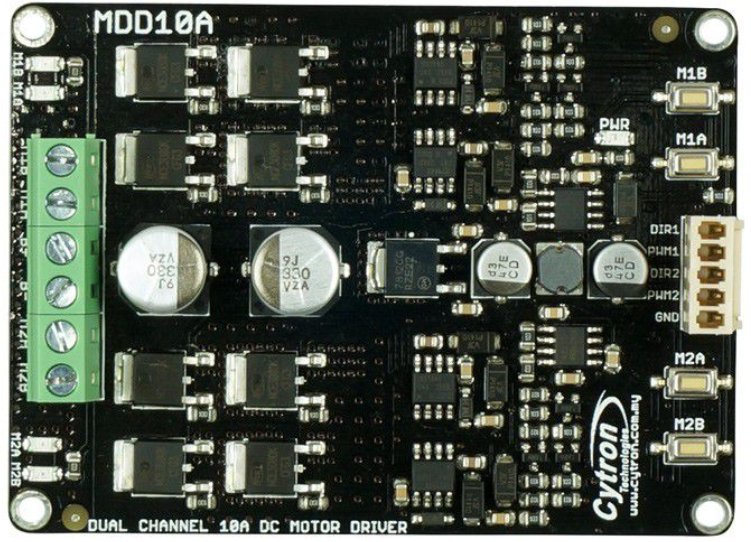

The Cytron MD10A Motor Driver is a robust and versatile motor driver designed to control DC motors with a maximum continuous current of 10A. It supports both direction and speed control using Pulse Width Modulation (PWM) signals. The MD10A is ideal for applications requiring high current motor control, such as robotics, conveyor systems, and automated machinery.

Explore Projects Built with Motor Driver 10A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Remote-Controlled Dual Motor System with Cytron URC10
Image of URC10 SUMO RC: A project utilizing Motor Driver 10A in a practical application
This circuit is a remote-controlled dual DC motor driver system powered by a 3S LiPo battery. It uses a Cytron URC10 motor driver to control two GM25 DC motors based on signals received from an R6FG receiver, with a rocker switch for power control and a 7-segment panel voltmeter for monitoring the battery voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
DC Motor Control System with BTS7960 Motor Driver and Arcade Buttons
Image of Hanif: A project utilizing Motor Driver 10A in a practical application
This circuit controls a DC motor using a BTS7960 motor driver, powered by a 12V power supply and regulated by a DC-DC step-down converter. The motor's operation is controlled via two arcade buttons and a rocker switch, allowing for user input to manage the motor's direction and power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Wi-Fi Controlled DC Motor Driver with Battery Management System
Image of RC Ball: A project utilizing Motor Driver 10A in a practical application
This circuit is a motor control system powered by a 3s 20A BMS and 18650 Li-ion batteries, which drives two DC Mini Metal Gear Motors using an L298N motor driver. The Arduino UNO R4 WiFi microcontroller is used to control the motor driver, and a buck converter provides regulated power to a Type-C port.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Battery-Powered Dual Motor Controller
Image of 01: A project utilizing Motor Driver 10A in a practical application
This circuit is designed to control two DC motors using an Arduino Nano and a TB6612FNG motor driver, powered by a 850mAh Lithium-Ion battery. The Arduino Nano interfaces with the motor driver to control motor direction and speed, while an additional component labeled '01' is connected to various analog pins on the Arduino, possibly for sensor input or additional control signals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Motor Driver 10A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of URC10 SUMO RC: A project utilizing Motor Driver 10A in a practical application
Battery-Powered Remote-Controlled Dual Motor System with Cytron URC10
This circuit is a remote-controlled dual DC motor driver system powered by a 3S LiPo battery. It uses a Cytron URC10 motor driver to control two GM25 DC motors based on signals received from an R6FG receiver, with a rocker switch for power control and a 7-segment panel voltmeter for monitoring the battery voltage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Hanif: A project utilizing Motor Driver 10A in a practical application
DC Motor Control System with BTS7960 Motor Driver and Arcade Buttons
This circuit controls a DC motor using a BTS7960 motor driver, powered by a 12V power supply and regulated by a DC-DC step-down converter. The motor's operation is controlled via two arcade buttons and a rocker switch, allowing for user input to manage the motor's direction and power.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RC Ball: A project utilizing Motor Driver 10A in a practical application
Arduino UNO Wi-Fi Controlled DC Motor Driver with Battery Management System
This circuit is a motor control system powered by a 3s 20A BMS and 18650 Li-ion batteries, which drives two DC Mini Metal Gear Motors using an L298N motor driver. The Arduino UNO R4 WiFi microcontroller is used to control the motor driver, and a buck converter provides regulated power to a Type-C port.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 01: A project utilizing Motor Driver 10A in a practical application
Arduino Nano Battery-Powered Dual Motor Controller
This circuit is designed to control two DC motors using an Arduino Nano and a TB6612FNG motor driver, powered by a 850mAh Lithium-Ion battery. The Arduino Nano interfaces with the motor driver to control motor direction and speed, while an additional component labeled '01' is connected to various analog pins on the Arduino, possibly for sensor input or additional control signals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Robotics and automation
  • Conveyor belt systems
  • Electric vehicles and carts
  • Industrial motor control
  • DIY projects involving high-current DC motors

Technical Specifications

The following table outlines the key technical details of the MD10A motor driver:

Parameter Specification
Manufacturer Cytron
Part ID MD10A
Motor Voltage Range 5V to 30V DC
Continuous Current 10A
Peak Current 30A (for short durations)
Control Signal Voltage 3.3V or 5V logic (compatible with Arduino, Raspberry Pi, etc.)
PWM Frequency Range Up to 20 kHz
Dimensions 84mm x 62mm x 25mm
Weight 70g
Operating Temperature -20°C to 85°C

Pin Configuration and Descriptions

The MD10A motor driver has the following pin configuration:

Pin Name Type Description
VM Power Input Motor power supply (5V to 30V DC). Connect to the positive terminal of the motor power source.
GND Power Ground Ground connection for the motor power supply.
VCC Logic Input Logic power supply (3.3V or 5V).
DIR Logic Input Direction control input. High for one direction, Low for the opposite direction.
PWM Logic Input PWM signal input for speed control.
MOTOR+ Motor Output Connect to the positive terminal of the motor.
MOTOR- Motor Output Connect to the negative terminal of the motor.

Usage Instructions

How to Use the MD10A in a Circuit

  1. Power Connections:

    • Connect the motor power supply (5V to 30V DC) to the VM pin.
    • Connect the ground of the power supply to the GND pin.
    • Provide a logic voltage (3.3V or 5V) to the VCC pin.
  2. Motor Connections:

    • Connect the motor terminals to the MOTOR+ and MOTOR- pins.
  3. Control Signals:

    • Use the DIR pin to control the motor's direction. Set it HIGH for one direction and LOW for the other.
    • Use the PWM pin to control the motor's speed. Provide a PWM signal with a duty cycle corresponding to the desired speed.
  4. Logic Compatibility:

    • The MD10A is compatible with 3.3V and 5V logic levels, making it suitable for microcontrollers like Arduino and Raspberry Pi.

Important Considerations and Best Practices

  • Ensure the motor's current rating does not exceed the MD10A's continuous current limit of 10A.
  • Use appropriate heat dissipation methods (e.g., heatsinks or fans) if operating near the maximum current limit.
  • Avoid reversing the polarity of the power supply or motor connections to prevent damage.
  • Use a fuse or circuit breaker to protect the motor driver and connected components.

Example: Connecting MD10A to an Arduino UNO

Below is an example Arduino code to control the MD10A motor driver:

// Define pin connections
const int dirPin = 7;  // Direction control pin
const int pwmPin = 6;  // PWM control pin

void setup() {
  // Set pin modes
  pinMode(dirPin, OUTPUT);
  pinMode(pwmPin, OUTPUT);
}

void loop() {
  // Rotate motor in one direction at 50% speed
  digitalWrite(dirPin, HIGH);  // Set direction
  analogWrite(pwmPin, 128);    // Set speed (128 = 50% duty cycle)
  delay(3000);                 // Run for 3 seconds

  // Stop the motor
  analogWrite(pwmPin, 0);      // Set speed to 0
  delay(1000);                 // Wait for 1 second

  // Rotate motor in the opposite direction at full speed
  digitalWrite(dirPin, LOW);   // Reverse direction
  analogWrite(pwmPin, 255);    // Set speed (255 = 100% duty cycle)
  delay(3000);                 // Run for 3 seconds

  // Stop the motor
  analogWrite(pwmPin, 0);      // Set speed to 0
  delay(1000);                 // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Motor Does Not Spin:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check all connections and ensure the power supply voltage and current meet the motor's requirements.
  2. Motor Spins in the Wrong Direction:

    • Cause: Incorrect DIR pin logic or reversed motor connections.
    • Solution: Verify the DIR pin logic and ensure the motor terminals are connected correctly.
  3. Motor Driver Overheats:

    • Cause: Operating near or above the maximum current limit without proper cooling.
    • Solution: Add a heatsink or fan to improve heat dissipation.
  4. PWM Signal Not Detected:

    • Cause: Incorrect PWM frequency or incompatible logic voltage.
    • Solution: Ensure the PWM signal frequency is within the supported range (up to 20 kHz) and matches the logic voltage level.

FAQs

  • Q: Can I use the MD10A with a 24V motor?

    • A: Yes, the MD10A supports motor voltages up to 30V DC, so it is compatible with 24V motors.
  • Q: Is the MD10A compatible with Raspberry Pi?

    • A: Yes, the MD10A supports 3.3V logic, making it compatible with Raspberry Pi GPIO pins.
  • Q: What happens if the motor draws more than 10A?

    • A: The MD10A can handle peak currents up to 30A for short durations, but prolonged overcurrent may cause overheating or damage. Use a motor within the 10A continuous current limit.
  • Q: Can I control two motors with one MD10A?

    • A: No, the MD10A is designed to control a single motor. Use separate motor drivers for multiple motors.

This concludes the documentation for the Cytron MD10A Motor Driver.
