How to Use tec pad: Examples, Pinouts, and Specs

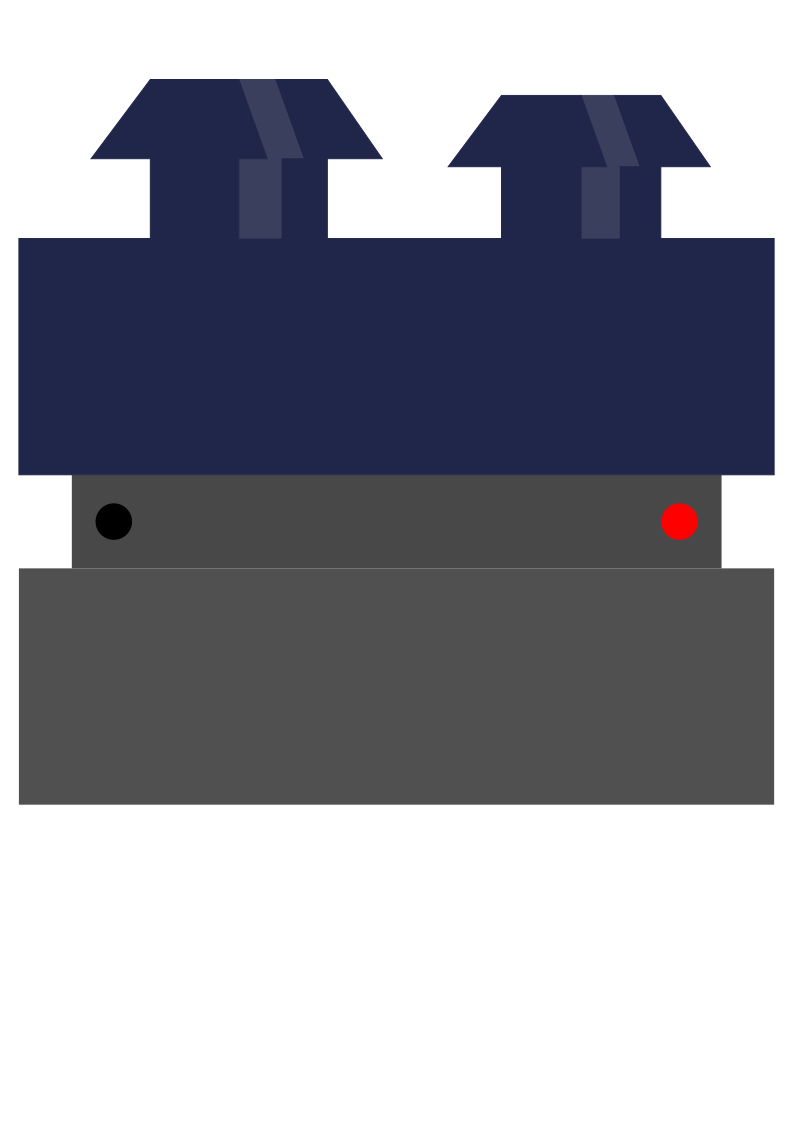

A Thermoelectric Cooler (TEC) pad, also known as a Peltier device, is a semiconductor-based electronic component that utilizes the Peltier effect to transfer heat from one side of the device to the other. When a DC current is applied, one side of the TEC pad becomes cold while the opposite side becomes hot, allowing for precise temperature control in a variety of applications. TEC pads are commonly used in applications such as:

• Electronic cooling systems
• Temperature control for optical components
• Portable refrigerators and coolers
• Thermal cycling for DNA amplification (PCR machines)
• Heated car seats (by reversing the current)

TEC pads typically have two wires or leads for electrical connection. The polarity of these leads determines the direction of heat transfer when current is applied.

1. Power Supply: Ensure that the power supply matches the voltage and current requirements of the TEC pad.
2. Polarity: Connect the positive lead to the positive terminal of the power supply and the negative lead to the negative terminal.
3. Heat Sinking: Attach heat sinks to both sides of the TEC pad to efficiently dissipate heat from the hot side and to absorb heat on the cold side.
4. Thermal Compound: Apply thermal compound between the TEC pad and heat sinks to improve thermal conductivity.
5. Insulation: Insulate the TEC pad assembly to minimize heat exchange with the environment.

• Current Control: Use a current-regulated power supply to prevent thermal runaway.
• Temperature Monitoring: Attach temperature sensors to monitor and control the temperature differential.
• Cycling: Avoid frequent on-off cycling to extend the lifespan of the TEC pad.
• Mechanical Stress: Prevent mechanical stress on the TEC pad as it can lead to internal damage.

• Inadequate Cooling/Heating: Check if the power supply is adequate, if the heat sinks are properly attached, and if the thermal compound is applied correctly.
• TEC Pad Not Functioning: Ensure that the TEC pad is not damaged and that the polarity of the connections is correct.
• Overheating: Verify that the current does not exceed the maximum rating and that the heat sinks are sufficient.

• If the TEC pad is not cooling or heating, reverse the polarity of the power supply to check if the direction of heat transfer changes.
• Use a fan to assist with heat dissipation on the hot side of the TEC pad.
• Ensure that the TEC pad is not subjected to moisture or condensation, which can cause short circuits.

Q: Can I reverse the heating and cooling sides of the TEC pad? A: Yes, by reversing the polarity of the current, the hot and cold sides will switch.

Q: How can I control the temperature of the TEC pad? A: Use a temperature controller with a feedback loop from a temperature sensor to regulate the current through the TEC pad.

Q: Is it possible to stack multiple TEC pads for greater temperature differences? A: Yes, but each TEC pad will need its own heat sink, and the efficiency will decrease with each additional stage.

Below is an example code snippet for controlling a TEC pad with an Arduino UNO. This example assumes the use of a digital temperature sensor and a MOSFET to control the current to the TEC pad.

#include <OneWire.h>
#include <DallasTemperature.h>

// Data wire for the temperature sensor is plugged into pin 2 on the Arduino
#define ONE_WIRE_BUS 2

// Setup a oneWire instance to communicate with any OneWire devices
OneWire oneWire(ONE_WIRE_BUS);

// Pass our oneWire reference to Dallas Temperature sensor
DallasTemperature sensors(&oneWire);

int tecPin = 3; // TEC pad control pin (connected through a MOSFET)

void setup(void)
{
  // Start serial communication for debugging
  Serial.begin(9600);
  // Start up the library
  sensors.begin();
  // Set the TEC control pin as output
  pinMode(tecPin, OUTPUT);
}

void loop(void)
{
  // Call sensors.requestTemperatures() to issue a global temperature
  // request to all devices on the bus
  sensors.requestTemperatures();
  Serial.print("Temperature is: ");
  Serial.print(sensors.getTempCByIndex(0)); // Why "byIndex"?
  // You can have more than one DS18B20 on the same bus.
  // 0 refers to the first IC on the wire

  float temperature = sensors.getTempCByIndex(0);

  // Simple control - turn on TEC pad if temperature is above 25 degrees Celsius
  if(temperature > 25){
    digitalWrite(tecPin, HIGH);
  } else {
    digitalWrite(tecPin, LOW);
  }

  delay(1000); // Wait 1 second before next measurement
}

This code is a basic example and does not include PID control for precise temperature regulation. For more advanced applications, consider implementing a PID controller library.
