How to Use Arduino Nano: Examples, Pinouts, and Specs

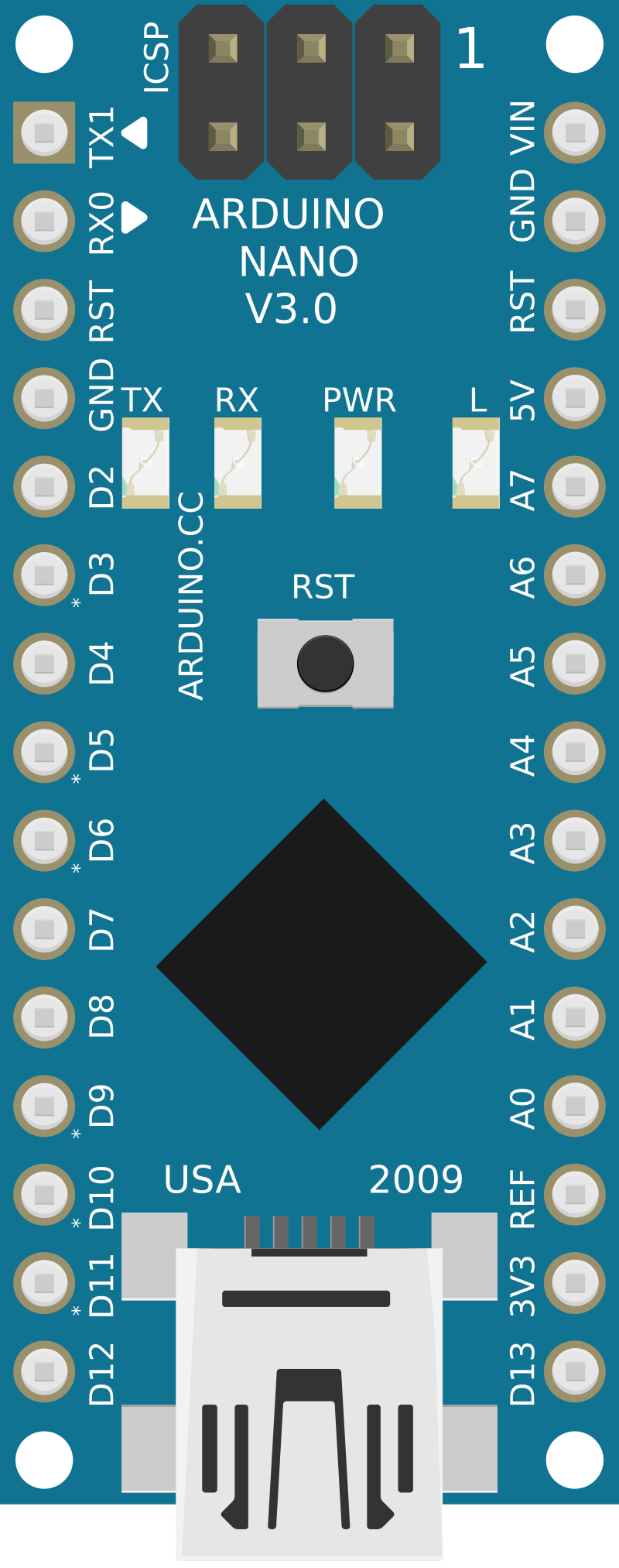

Image of Arduino Nano
Cirkit Designer LogoDesign with Arduino Nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board based on the ATmega328P, designed for easy integration into a wide range of electronic projects. It features a small form factor, making it ideal for applications where space is limited. The Nano offers digital and analog input/output pins, USB connectivity for programming and communication, and full compatibility with the Arduino IDE, making it a versatile and user-friendly choice for both beginners and experienced developers.

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing Arduino Nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano Basic Setup for Embedded Projects
Image of yt: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino Nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of OLED Display: A project utilizing Arduino Nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Compass: A project utilizing Arduino Nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yt: A project utilizing Arduino Nano in a practical application
Arduino Nano Basic Setup for Embedded Projects
This circuit consists of an Arduino Nano microcontroller with no external components connected. The provided code is a basic template with empty setup and loop functions, indicating that the circuit is likely intended for initial testing or development purposes.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Robot + Glove: A project utilizing Arduino Nano in a practical application
Arduino-Based Bluetooth-Controlled Servo System with Flex Sensors and MPU-6050
This circuit consists of an Arduino UNO and an Arduino Nano, which communicate via Bluetooth modules. The Arduino Nano reads data from two flex sensors and an MPU-6050 accelerometer, sending the data to the Arduino UNO. The Arduino UNO controls three micro servos through a PCA9685 PWM driver, moving them back and forth.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and small-scale embedded systems
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable electronics
  • Sensor data acquisition and processing
  • Educational projects and DIY electronics

Technical Specifications

The Arduino Nano is equipped with the following key features and specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 of which provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB port for programming and communication
Dimensions 18 mm x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is a detailed description of the pin configuration:

Power Pins

Pin Name Description
1 VIN Input voltage to the board when using an external power source (7-12V).
2 5V Regulated 5V output from the onboard voltage regulator.
3 3.3V Regulated 3.3V output (maximum current: 50 mA).
4 GND Ground pins (multiple GND pins available).
5 RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Name Description
D0-D13 Digital I/O General-purpose digital input/output pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Name Description
A0-A7 Analog Input Used for reading analog signals (10-bit resolution).

Communication Pins

Pin Name Description
D0, D1 RX, TX UART communication pins for serial communication.
D10-D13 SPI SPI communication pins (SS, MOSI, MISO, SCK).
A4, A5 I2C I2C communication pins (SDA, SCL).

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Connect the Nano to your computer via the Mini-B USB cable for programming and power.
    • Alternatively, supply power through the VIN pin (7-12V) or the 5V pin (regulated 5V).
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Select "Arduino Nano" as the board type in the IDE.
    • Choose the appropriate processor (ATmega328P or ATmega328P (Old Bootloader)) from the Tools menu.
    • Write your code in the IDE and upload it to the Nano using the USB connection.
  3. Connecting Components:

    • Use the digital pins for controlling LEDs, relays, or other digital devices.
    • Use the analog pins to read sensor data (e.g., temperature, light, or potentiometers).
    • For communication, connect peripherals using UART, SPI, or I2C protocols.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin D13:

// This example blinks an LED connected to pin D13 on the Arduino Nano.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for any I/O pin to prevent damage.
  • Use external pull-up or pull-down resistors for stable digital input signals.
  • When using analog sensors, ensure the input voltage does not exceed 5V.
  • For long-term projects, consider using a heat sink or cooling mechanism if the board operates in high-temperature environments.

Troubleshooting and FAQs

Common Issues and Solutions

  1. Problem: The Arduino Nano is not recognized by the computer.

    • Solution: Ensure the correct USB driver is installed. For older boards, install the CH340 driver if required.
  2. Problem: Code upload fails with an error.

    • Solution: Verify that the correct board and processor are selected in the Arduino IDE. Check the COM port settings.
  3. Problem: The board resets unexpectedly during operation.

    • Solution: Check the power supply for stability. Ensure the input voltage is within the recommended range.
  4. Problem: Analog readings are unstable or noisy.

    • Solution: Use a capacitor between the analog input pin and GND to filter noise.

FAQs

  • Q: Can the Arduino Nano run on 3.3V?

    • A: Yes, but the operating voltage for the ATmega328P is 5V. Running at 3.3V may cause instability.
  • Q: How do I reset the Arduino Nano?

    • A: Press the onboard reset button or pull the RESET pin LOW momentarily.
  • Q: Can I use the Arduino Nano for battery-powered projects?

    • A: Yes, you can power the Nano using a battery through the VIN or 5V pin. Ensure the voltage is within the recommended range.

This concludes the documentation for the Arduino Nano.
