How to Use 3 Core polycab wire - 2.5sqmm: Examples, Pinouts, and Specs
Design with 3 Core polycab wire - 2.5sqmm in Cirkit DesignerIntroduction

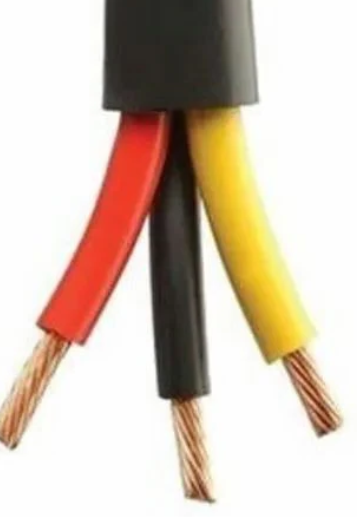

The 3 Core Polycab Wire - 2.5 sqmm is a versatile electrical wire designed for power distribution and electrical installations. Manufactured by Polycab, this wire features three conductors, each with a cross-sectional area of 2.5 square millimeters. It is commonly used in residential, commercial, and industrial applications for efficient and reliable power transmission.
Explore Projects Built with 3 Core polycab wire - 2.5sqmm
Arduino-Based Wireless Power Transmission System with Copper Coils
This circuit consists of multiple copper coils connected to transmitters and a receiver, likely forming a wireless power transfer or communication system. The transmitters are connected to individual coils, and the receiver is connected to another coil, facilitating the transmission and reception of signals or power wirelessly.
Open Project in Cirkit DesignerDual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Open Project in Cirkit DesignerElectric Guitar Pickup Selector with Potentiometer Control
This circuit is a guitar wiring setup featuring a humbucker and two single coil pickups connected to a 5-way selector switch, allowing for different pickup combinations. The output from the selector switch is routed through three potentiometers for tone and volume control before being sent to a 6.5mm mono jack for audio output.
Open Project in Cirkit DesignerToggle Switch Controlled Lamp Circuit with Banana Sockets
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Open Project in Cirkit DesignerExplore Projects Built with 3 Core polycab wire - 2.5sqmm
Arduino-Based Wireless Power Transmission System with Copper Coils
This circuit consists of multiple copper coils connected to transmitters and a receiver, likely forming a wireless power transfer or communication system. The transmitters are connected to individual coils, and the receiver is connected to another coil, facilitating the transmission and reception of signals or power wirelessly.
Open Project in Cirkit DesignerDual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Open Project in Cirkit DesignerElectric Guitar Pickup Selector with Potentiometer Control
This circuit is a guitar wiring setup featuring a humbucker and two single coil pickups connected to a 5-way selector switch, allowing for different pickup combinations. The output from the selector switch is routed through three potentiometers for tone and volume control before being sent to a 6.5mm mono jack for audio output.
Open Project in Cirkit DesignerToggle Switch Controlled Lamp Circuit with Banana Sockets
This circuit consists of two toggle switches and a red lamp connected to panel mount banana sockets. The switches control the connection between the red and black banana sockets, allowing the lamp to be turned on or off depending on the switch positions.
Open Project in Cirkit DesignerTechnical Specifications
Key Technical Details
| Parameter | Specification |
|---|---|
| Manufacturer | Polycab |
| Part ID | AC wires |
| Number of Conductors | 3 |
| Conductor Area | 2.5 sqmm |
| Voltage Rating | 450/750V |
| Current Rating | 22A |
| Insulation Material | PVC |
| Sheath Material | PVC |
| Operating Temperature | -15°C to +70°C |
| Color | Varies (typically Red, Yellow, Blue) |
Pin Configuration and Descriptions
The 3 Core Polycab Wire does not have pins but consists of three conductors. Each conductor is typically color-coded for easy identification:
| Conductor Color | Description |
|---|---|
| Red | Live (Phase) |
| Yellow | Neutral |
| Blue | Earth (Ground) |
Usage Instructions
How to Use the Component in a Circuit
- Identify the Conductors: Ensure you correctly identify the live, neutral, and earth conductors by their color codes.
- Strip the Insulation: Carefully strip the insulation from the ends of the conductors using a wire stripper.
- Connect to Terminals: Connect the stripped ends to the appropriate terminals in your electrical installation. Ensure the connections are secure and tight.
- Insulate Connections: Use electrical tape or heat shrink tubing to insulate the connections and prevent short circuits.
- Test the Circuit: After making all connections, test the circuit to ensure proper functionality and safety.
Important Considerations and Best Practices
- Safety First: Always turn off the power supply before working with electrical wires to avoid electric shock.
- Proper Tools: Use appropriate tools such as wire strippers, screwdrivers, and pliers for handling and connecting the wires.
- Secure Connections: Ensure all connections are secure and free from loose strands that could cause short circuits.
- Compliance: Follow local electrical codes and standards for safe and compliant installations.
- Avoid Overloading: Do not exceed the current rating of 22A to prevent overheating and potential fire hazards.
Troubleshooting and FAQs
Common Issues Users Might Face
- Loose Connections: Loose connections can cause intermittent power loss or arcing.
- Short Circuits: Improper insulation or exposed conductors can lead to short circuits.
- Overheating: Exceeding the current rating can cause the wire to overheat.
Solutions and Tips for Troubleshooting
- Check Connections: Ensure all connections are tight and secure. Re-tighten any loose connections.
- Inspect Insulation: Verify that all conductors are properly insulated and there are no exposed wires.
- Monitor Load: Ensure the connected load does not exceed the wire's current rating of 22A.
- Use a Multimeter: Use a multimeter to check for continuity and proper voltage levels in the circuit.
FAQs
Q: Can I use this wire for outdoor installations? A: Yes, but ensure it is properly protected from environmental factors such as moisture and UV exposure.
Q: What is the maximum length I can use without significant voltage drop? A: The maximum length depends on the load and installation conditions. For precise calculations, refer to voltage drop charts or consult an electrician.
Q: Can I use this wire with an Arduino UNO? A: This wire is typically used for power distribution and is not suitable for low-current applications like Arduino projects. Use appropriate gauge wires for Arduino connections.
By following this documentation, users can effectively and safely utilize the 3 Core Polycab Wire - 2.5 sqmm in their electrical installations.
