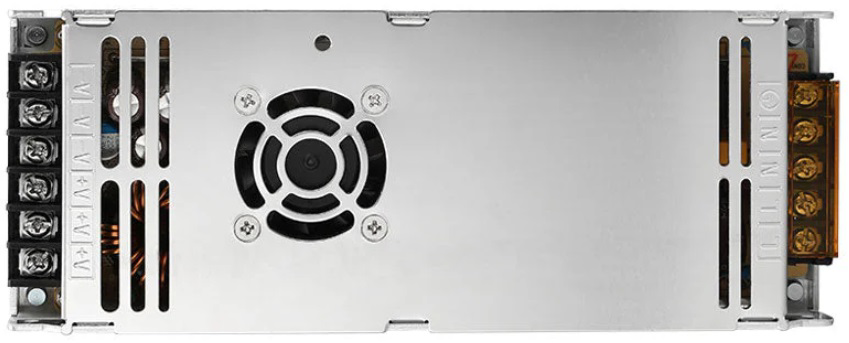

Image of SMPS 5V 60A
Cirkit Designer LogoDesign with SMPS 5V 60A in Cirkit Designer

Introduction

The SMPS 5V 60A is a high-efficiency Switch Mode Power Supply designed to convert electrical power into a stable 5V DC output with a maximum current capacity of 60A. This component is ideal for applications requiring a reliable and robust power source, such as powering LED strips, industrial control systems, high-current microcontroller projects, and other electronic devices.

Explore Projects Built with SMPS 5V 60A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
Image of Power supply: A project utilizing SMPS 5V 60A in a practical application
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing SMPS 5V 60A in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
Image of Cellion-Tesla: A project utilizing SMPS 5V 60A in a practical application
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing SMPS 5V 60A in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with SMPS 5V 60A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Power supply: A project utilizing SMPS 5V 60A in a practical application
12V UPS System with Dual 18650 Li-ion Battery Backup and Voltage Regulation
This circuit is designed to provide an uninterruptible power supply (UPS) system with a 12V DC output. It includes a 12V 5A power supply connected to an AC source through a toggle switch, which charges a pair of 18650 Li-ion batteries via a voltage regulator (XL4016). The UPS module ensures a continuous power supply to the load by switching between the power supply and the battery bank.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfdriver: A project utilizing SMPS 5V 60A in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Cellion-Tesla: A project utilizing SMPS 5V 60A in a practical application
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing SMPS 5V 60A in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering high-current LED lighting systems
  • Supplying power to industrial automation equipment
  • Driving motors and actuators in robotics
  • Providing power to microcontroller-based systems (e.g., Arduino, Raspberry Pi) with high current demands
  • Charging large battery banks or powering DC loads in laboratory setups

Technical Specifications

The following table outlines the key technical details of the SMPS 5V 60A:

Parameter Value
Input Voltage Range 100-240V AC (50/60Hz)
Output Voltage 5V DC
Maximum Output Current 60A
Maximum Output Power 300W
Efficiency ≥85%
Ripple and Noise ≤120mV
Operating Temperature -10°C to +50°C
Cooling Method Forced air cooling (fan)
Dimensions Varies by manufacturer
Weight Approx. 1.5-2.5 kg

Pin Configuration and Descriptions

The SMPS 5V 60A typically has the following input and output terminals:

Input Terminals

Pin Name Description
L Live AC input (100-240V AC)
N Neutral AC input
GND Earth/ground connection

Output Terminals

Pin Name Description
V+ Positive DC output (5V)
V- Negative DC output (Ground)

Note: Some SMPS units may have multiple V+ and V- terminals to distribute the high current load across multiple connections.

Usage Instructions

How to Use the SMPS 5V 60A in a Circuit

  1. Input Connection:

    • Connect the AC input terminals (L and N) to a 100-240V AC power source.
    • Ensure the ground (GND) terminal is properly connected to the earth for safety.
  2. Output Connection:

    • Connect the V+ terminal(s) to the positive input of your load.
    • Connect the V- terminal(s) to the ground of your load.
    • If your load requires high current, distribute the connections across multiple V+ and V- terminals to avoid overheating.
  3. Power On:

    • After verifying all connections, switch on the AC power supply.
    • The SMPS will provide a stable 5V DC output.
  4. Adjustments (if applicable):

    • Some SMPS units have a small potentiometer to fine-tune the output voltage. Use a screwdriver to adjust it if necessary.

Important Considerations and Best Practices

  • Load Distribution: Ensure the total current drawn by the load does not exceed 60A.
  • Cooling: The SMPS has a built-in fan for cooling. Ensure proper ventilation around the unit to prevent overheating.
  • Safety: Always disconnect the power before making any changes to the wiring.
  • Fuse Protection: Use an appropriate fuse on the input side to protect against overcurrent or short circuits.
  • Voltage Adjustment: If the SMPS has an adjustable output, do not exceed the rated voltage to avoid damaging your load.

Example: Connecting to an Arduino UNO

The SMPS 5V 60A can be used to power an Arduino UNO and other peripherals. Below is an example of how to connect it:

  1. Connect the V+ terminal of the SMPS to the 5V pin of the Arduino UNO.
  2. Connect the V- terminal of the SMPS to the GND pin of the Arduino UNO.
  3. Ensure the total current drawn by the Arduino and peripherals does not exceed 60A.

Sample Arduino Code

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the SMPS is properly connected to the Arduino's 5V and GND pins

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Warning: When powering an Arduino UNO with the SMPS, ensure the output voltage is precisely 5V to avoid damaging the board.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check if the AC input is properly connected and powered.
    • Verify that the fuse (if present) is not blown.
    • Ensure the SMPS is not in overcurrent or thermal shutdown mode.
  2. Overheating:

    • Ensure the SMPS has adequate ventilation.
    • Check if the load current exceeds 60A and reduce the load if necessary.
  3. Voltage Fluctuations:

    • Verify that the input voltage is within the specified range (100-240V AC).
    • Check for loose connections on the output terminals.
  4. Fan Not Working:

    • Some SMPS units have temperature-controlled fans that only activate under high loads or temperatures. If the fan does not turn on under heavy load, it may be faulty.

FAQs

Q: Can I use this SMPS to charge a 5V battery?
A: Yes, but ensure the battery charging current does not exceed 60A. Use a charge controller if necessary.

Q: Is the SMPS suitable for outdoor use?
A: Most SMPS units are not weatherproof. Use them in a dry, indoor environment or enclose them in a weatherproof case.

Q: Can I connect multiple SMPS units in parallel for higher current?
A: It is not recommended unless the SMPS units are specifically designed for parallel operation, as this can cause instability.

Q: How do I know if the SMPS is overloaded?
A: Many SMPS units have an LED indicator or will shut down automatically when overloaded. Reduce the load and restart the unit.

By following this documentation, you can safely and effectively use the SMPS 5V 60A in your projects.
