How to Use Gsm sim800l module: Examples, Pinouts, and Specs

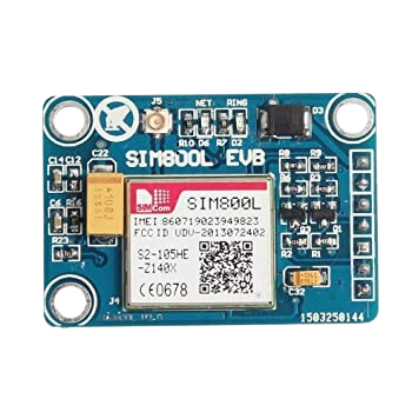

The GSM SIM800L module is a compact GSM/GPRS module that allows for communication over cellular networks. It supports SMS, voice calls, and data transmission, making it ideal for IoT applications and remote monitoring. This module is widely used in projects requiring wireless communication, such as home automation, GPS tracking, and remote data logging. Its small size and low power consumption make it suitable for portable and battery-powered devices.

• Sending and receiving SMS messages
• Making and receiving voice calls
• Internet of Things (IoT) applications
• GPS tracking systems (when paired with a GPS module)
• Remote monitoring and control
• Data transmission over GPRS for cloud-based applications

The SIM800L module is designed to operate efficiently in a variety of environments. Below are its key technical details:

• Operating Voltage: 3.7V to 4.2V (recommended: 4.0V)
• Operating Current: 20mA (idle), up to 2A (during transmission)
• Frequency Bands: Quad-band 850/900/1800/1900 MHz
• Communication Protocols: GSM, GPRS (Class 12)
• Data Rate: Up to 85.6 kbps (GPRS)
• SIM Card Support: Micro SIM
• Antenna: External antenna required (via IPX connector or spring antenna)
• Dimensions: 25mm x 23mm x 3mm
• Operating Temperature: -40°C to +85°C

The SIM800L module has several pins for power, communication, and control. Below is the pinout description:

1. Power Supply:

   • Use a stable power supply capable of delivering 4.0V and at least 2A.
   • A LiPo battery or a DC-DC buck converter is recommended.
   • Connect the VCC pin to the power source and GND to ground.

2. Antenna Connection:

   • Attach an external antenna to the IPX connector or use a spring antenna.
   • Ensure the antenna is securely connected for reliable signal reception.

3. Microcontroller Interface:

   • Connect the RXD pin of the SIM800L to the TX pin of the microcontroller.
   • Connect the TXD pin of the SIM800L to the RX pin of the microcontroller.
   • Use a logic level shifter if your microcontroller operates at 5V logic levels, as the SIM800L uses 3.3V logic.

4. SIM Card Insertion:

   • Insert a micro SIM card into the SIM card slot. Ensure the card is activated and has sufficient balance for calls, SMS, or data.

5. Powering On:

   • Once all connections are made, power on the module.
   • The NET pin will blink to indicate network status:
     • Fast blinking: Searching for a network.
     • Slow blinking: Connected to a network.

• Use decoupling capacitors (e.g., 1000µF and 10µF) near the power input to stabilize the voltage.
• Avoid powering the module directly from the 5V pin of an Arduino, as it cannot supply sufficient current.
• Ensure proper grounding to avoid noise and communication issues.
• Place the antenna away from other components to minimize interference.

Below is an example of how to send an SMS using the SIM800L module with an Arduino UNO:

• SIM800L VCC → External 4.0V power supply
• SIM800L GND → Arduino GND
• SIM800L RXD → Arduino TX (Pin 1)
• SIM800L TXD → Arduino RX (Pin 0)
• SIM800L RST → Not connected (optional)

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial sim800l(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  // Initialize serial communication
  Serial.begin(9600); // For debugging
  sim800l.begin(9600); // For SIM800L communication

  Serial.println("Initializing SIM800L...");
  delay(1000);

  // Send AT command to check communication
  sim800l.println("AT");
  delay(1000);
  while (sim800l.available()) {
    Serial.write(sim800l.read()); // Print response from SIM800L
  }

  // Send SMS command
  sim800l.println("AT+CMGF=1"); // Set SMS mode to text
  delay(1000);
  sim800l.println("AT+CMGS=\"+1234567890\""); // Replace with recipient's phone number
  delay(1000);
  sim800l.println("Hello, this is a test SMS from SIM800L!"); // SMS content
  delay(1000);
  sim800l.write(26); // Send Ctrl+Z to send the SMS
  delay(5000);

  Serial.println("SMS sent!");
}

void loop() {
  // Nothing to do here
}

1. Module Not Powering On:

   • Ensure the power supply provides 4.0V and at least 2A.
   • Check all connections, especially VCC and GND.

2. No Network Connection:

   • Verify the SIM card is inserted correctly and is activated.
   • Check the antenna connection.
   • Ensure the module is in an area with good cellular coverage.

3. Communication Issues with Microcontroller:

   • Use a logic level shifter if the microcontroller operates at 5V logic.
   • Double-check RX and TX connections.

4. AT Commands Not Responding:

   • Ensure the baud rate matches (default is 9600).
   • Reset the module by pulling the RST pin low.

• Q: Can I use the SIM800L with a 5V power supply?
  A: No, the SIM800L requires 3.7V to 4.2V. Use a step-down converter or a LiPo battery.

• Q: How do I check the signal strength?
  A: Send the AT command AT+CSQ. The module will return a signal strength value.

• Q: Can the SIM800L connect to the internet?
  A: Yes, it supports GPRS for data transmission. You can use AT commands to configure and send data.

• Q: Why does the module restart during operation?
  A: This is usually due to insufficient power. Ensure your power supply can deliver at least 2A.
