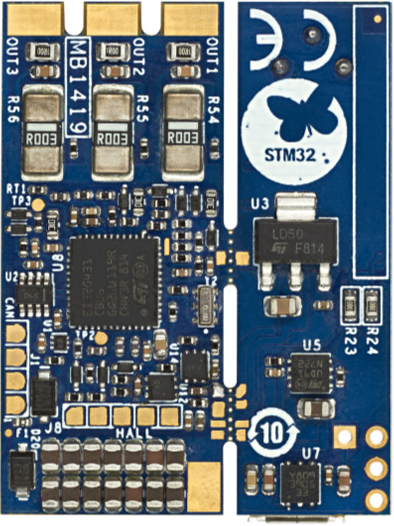

Image of  B-G431B-ESC1 Front side
Cirkit Designer LogoDesign with B-G431B-ESC1 Front side in Cirkit Designer

Introduction

The B-G431B-ESC1 is an advanced electronic speed controller (ESC) developed by STM32. It is specifically designed for controlling brushless motors with high precision and efficiency. This ESC leverages advanced control algorithms and the STM32G4 microcontroller to deliver smooth motor operation, making it ideal for applications requiring precise motor management, such as drones, robotics, and industrial automation.

Explore Projects Built with B-G431B-ESC1 Front side

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered ESP32-Based Remote Control and Communication System
Image of Autonomous Cargo-Ship Project: A project utilizing  B-G431B-ESC1 Front side in a practical application
This circuit is designed to control a brushless motor via an Electronic Speed Controller (ESC), which receives power from a 12v battery managed by a Charge Controller connected to a solar panel. The ESC is interfaced with an ESP32 Devkit V1 microcontroller for signal control, and the circuit includes a SIM800L GSM module and a LoRa Ra-02 SX1278 module for communication purposes. Additional components include an HC-SR04 Ultrasonic Sensor for distance measurement, an MG996R servo, and a 1 Channel 5V Relay Module for switching applications, all powered by a step-down module that regulates voltage from the charge controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered FPV Drone with Telemetry and Dual Motor Control
Image of Krul': A project utilizing  B-G431B-ESC1 Front side in a practical application
This circuit appears to be a power distribution and control system for a vehicle with two motorized wheels, possibly a drone or a robot. It includes a lipo battery connected to a Power Distribution Board (PDB) that distributes power to two Electronic Speed Controllers (ESCs) which in turn control the speed and direction of the motors. The system also integrates a flight controller (H743-SLIM V3) for managing various peripherals including GPS, FPV camera system, and a telemetry link (ExpressLRS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Quadcopter BLDC Motor Control System with Radio Receiver
Image of rc car: A project utilizing  B-G431B-ESC1 Front side in a practical application
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi-Controlled Drone with Brushless Motors and Camera Module
Image of ROV: A project utilizing  B-G431B-ESC1 Front side in a practical application
This circuit is designed for a multi-motor application, likely a drone or a similar vehicle, featuring eight brushless motors controlled by two 4-in-1 electronic speed controllers (ESCs). The ESCs are powered by a 3s2p 18650 battery pack and interfaced with a Pixhawk flight controller for motor management. Additionally, the system includes a Raspberry Pi 4B for advanced processing and control, which is connected to a NoIR camera module and a cooling fan, and a power module to supply and monitor the power to the Pixhawk.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with B-G431B-ESC1 Front side

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Autonomous Cargo-Ship Project: A project utilizing  B-G431B-ESC1 Front side in a practical application
Solar-Powered ESP32-Based Remote Control and Communication System
This circuit is designed to control a brushless motor via an Electronic Speed Controller (ESC), which receives power from a 12v battery managed by a Charge Controller connected to a solar panel. The ESC is interfaced with an ESP32 Devkit V1 microcontroller for signal control, and the circuit includes a SIM800L GSM module and a LoRa Ra-02 SX1278 module for communication purposes. Additional components include an HC-SR04 Ultrasonic Sensor for distance measurement, an MG996R servo, and a 1 Channel 5V Relay Module for switching applications, all powered by a step-down module that regulates voltage from the charge controller.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Krul': A project utilizing  B-G431B-ESC1 Front side in a practical application
Battery-Powered FPV Drone with Telemetry and Dual Motor Control
This circuit appears to be a power distribution and control system for a vehicle with two motorized wheels, possibly a drone or a robot. It includes a lipo battery connected to a Power Distribution Board (PDB) that distributes power to two Electronic Speed Controllers (ESCs) which in turn control the speed and direction of the motors. The system also integrates a flight controller (H743-SLIM V3) for managing various peripherals including GPS, FPV camera system, and a telemetry link (ExpressLRS).
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rc car: A project utilizing  B-G431B-ESC1 Front side in a practical application
Quadcopter BLDC Motor Control System with Radio Receiver
This circuit is designed to control four Brushless DC (BLDC) motors using corresponding Electronic Speed Controllers (ESCs). Each ESC receives power from a shared LiPo battery and control signals from an FS-CT6B receiver, which likely receives input from a remote transmitter for wireless control. The ESCs regulate the power supplied to the motors based on the received signals, enabling precise speed and direction control of the motors, typically used in applications such as drones or remote-controlled vehicles.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ROV: A project utilizing  B-G431B-ESC1 Front side in a practical application
Raspberry Pi-Controlled Drone with Brushless Motors and Camera Module
This circuit is designed for a multi-motor application, likely a drone or a similar vehicle, featuring eight brushless motors controlled by two 4-in-1 electronic speed controllers (ESCs). The ESCs are powered by a 3s2p 18650 battery pack and interfaced with a Pixhawk flight controller for motor management. Additionally, the system includes a Raspberry Pi 4B for advanced processing and control, which is connected to a NoIR camera module and a cooling fan, and a power module to supply and monitor the power to the Pixhawk.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Drones: Provides smooth and efficient motor control for stable flight.
  • Robotics: Enables precise motor management for robotic arms and mobile robots.
  • Industrial Automation: Used in conveyor belts, pumps, and other motor-driven systems.
  • RC Vehicles: Ensures smooth acceleration and deceleration for remote-controlled cars, boats, and planes.

Technical Specifications

Key Technical Details:

Parameter Value
Microcontroller STM32G431CBU6 (32-bit Arm® Cortex®-M4 with FPU and DSP instructions)
Input Voltage Range 3S to 6S LiPo (9V to 25.2V)
Maximum Current 40A continuous, 80A peak
PWM Frequency Up to 96 kHz
Communication Interfaces UART, CAN, PWM
Motor Type Supported Brushless DC (BLDC) and Permanent Magnet Synchronous Motors (PMSM)
Dimensions 50 mm x 50 mm
Weight 32 grams
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions:

Pin Name Pin Type Description
VIN Power Input Main power input for the ESC (connect to battery positive terminal).
GND Power Ground Ground connection (connect to battery negative terminal).
MOTOR_A Motor Output Phase A connection to the brushless motor.
MOTOR_B Motor Output Phase B connection to the brushless motor.
MOTOR_C Motor Output Phase C connection to the brushless motor.
UART_TX Communication UART transmit pin for communication with external devices (e.g., flight controller).
UART_RX Communication UART receive pin for communication with external devices.
PWM_IN Signal Input PWM input for motor speed control.
CAN_H Communication CAN bus high line for communication.
CAN_L Communication CAN bus low line for communication.
3.3V_OUT Power Output 3.3V output for powering external devices (e.g., sensors).

Usage Instructions

How to Use the B-G431B-ESC1 in a Circuit:

  1. Power Connection:

    • Connect the VIN pin to the positive terminal of a 3S-6S LiPo battery.
    • Connect the GND pin to the negative terminal of the battery.
  2. Motor Connection:

    • Connect the three motor wires to the MOTOR_A, MOTOR_B, and MOTOR_C pins. The order of connection determines the motor's rotation direction. Swap any two wires to reverse the direction.
  3. Control Signal:

    • Use the PWM_IN pin to provide a PWM signal for speed control. Alternatively, use the UART_RX and UART_TX pins for advanced control via UART communication.
  4. Optional Communication:

    • For CAN communication, connect the CAN_H and CAN_L pins to the CAN bus.
  5. External Power:

    • Use the 3.3V_OUT pin to power external devices, such as sensors or microcontrollers, if needed.

Important Considerations:

  • Ensure the input voltage is within the specified range (9V to 25.2V) to avoid damaging the ESC.
  • Use appropriate heat dissipation methods (e.g., heatsinks or active cooling) if operating near the maximum current rating.
  • Calibrate the ESC with your motor and controller before first use to ensure optimal performance.
  • Avoid short circuits between the motor output pins (MOTOR_A, MOTOR_B, MOTOR_C) as this can damage the ESC.

Example: Using the B-G431B-ESC1 with Arduino UNO

Below is an example of controlling the ESC using a PWM signal from an Arduino UNO:

// Include necessary libraries
#include <Servo.h> // Library to generate PWM signals

Servo esc; // Create a Servo object to control the ESC

void setup() {
  esc.attach(9); // Attach ESC signal wire to pin 9 on Arduino
  esc.writeMicroseconds(1000); // Send minimum throttle signal (1000 µs)
  delay(2000); // Wait for ESC to initialize
}

void loop() {
  esc.writeMicroseconds(1500); // Send mid-throttle signal (1500 µs)
  delay(5000); // Run motor at mid-speed for 5 seconds

  esc.writeMicroseconds(2000); // Send maximum throttle signal (2000 µs)
  delay(5000); // Run motor at full speed for 5 seconds

  esc.writeMicroseconds(1000); // Send minimum throttle signal (1000 µs)
  delay(5000); // Stop motor for 5 seconds
}

Troubleshooting and FAQs

Common Issues:

  1. Motor Does Not Spin:

    • Cause: Incorrect wiring or no PWM signal.
    • Solution: Verify motor connections and ensure a valid PWM signal is provided.
  2. ESC Overheats:

    • Cause: Operating near or above the maximum current rating without proper cooling.
    • Solution: Add a heatsink or active cooling to the ESC.
  3. Motor Spins in the Wrong Direction:

    • Cause: Incorrect phase wiring.
    • Solution: Swap any two motor wires (MOTOR_A, MOTOR_B, MOTOR_C).
  4. No Communication via UART:

    • Cause: Incorrect baud rate or wiring.
    • Solution: Verify UART settings (e.g., baud rate) and check connections.

FAQs:

  • Q: Can I use the B-G431B-ESC1 with a brushed motor?
    A: No, this ESC is designed specifically for brushless motors.

  • Q: What is the default PWM frequency?
    A: The default PWM frequency is 48 kHz, but it can be configured up to 96 kHz.

  • Q: Can I use this ESC with a 2S LiPo battery?
    A: No, the minimum input voltage is 9V, which corresponds to a 3S LiPo battery.

  • Q: How do I update the firmware?
    A: Firmware updates can be performed via the UART interface using STM32 tools.


This concludes the documentation for the B-G431B-ESC1 Front Side. For further assistance, refer to the official STM32 user manual or contact technical support.
