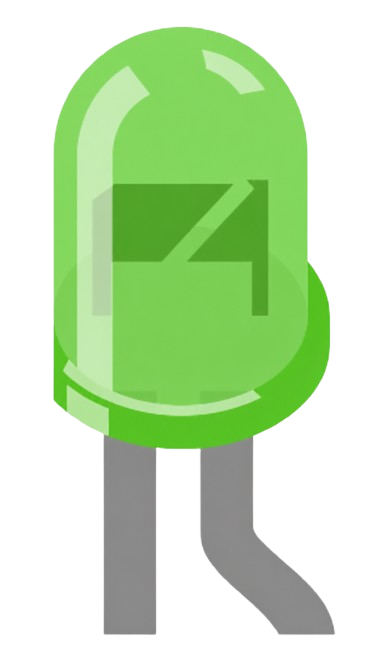

Image of Green LED
Cirkit Designer LogoDesign with Green LED in Cirkit Designer

Introduction

A Green LED (Light-Emitting Diode) is a semiconductor device that emits green light when an electric current flows through it. It is widely used in electronic circuits as an indicator, status light, or part of a display system. Green LEDs are energy-efficient, long-lasting, and available in various sizes and brightness levels, making them suitable for a wide range of applications.

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Green LED Light
Image of Solar Panel : A project utilizing Green LED in a practical application
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Array with Rocker Switch Control
Image of yk: A project utilizing Green LED in a practical application
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor with LED Indicator
Image of ir home automation: A project utilizing Green LED in a practical application
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO LED Blinker with Resistor
Image of blink_led_uno: A project utilizing Green LED in a practical application
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Green LED

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Solar Panel : A project utilizing Green LED in a practical application
Solar-Powered Green LED Light
This circuit consists of a solar panel connected to a green LED. The solar panel provides power to the LED, causing it to light up when sufficient sunlight is available.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of yk: A project utilizing Green LED in a practical application
Battery-Powered LED Array with Rocker Switch Control
This circuit consists of four green LEDs connected in parallel, powered by a 9V battery. A rocker switch is used to control the power to the LEDs, allowing them to be turned on or off simultaneously.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir home automation: A project utilizing Green LED in a practical application
Battery-Powered IR Sensor with LED Indicator
This circuit uses an IR sensor to control a green LED. When the IR sensor detects an object, it outputs a signal that turns on the LED, powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of blink_led_uno: A project utilizing Green LED in a practical application
Arduino UNO LED Blinker with Resistor
This circuit uses an Arduino UNO to control a green LED. The LED is connected to digital pin 13 through a 200-ohm resistor, and the Arduino code makes the LED blink on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Power and status indicators in electronic devices
  • Traffic lights and signage
  • Backlighting for displays
  • Decorative lighting
  • Educational and DIY electronics projects

Technical Specifications

Below are the typical specifications for a standard Green LED. Note that actual values may vary depending on the specific model or manufacturer.

Parameter Value
Forward Voltage (Vf) 2.0V to 3.2V
Forward Current (If) 10mA to 20mA
Maximum Reverse Voltage 5V
Wavelength 520nm to 570nm (green light)
Viewing Angle 20° to 60°
Power Dissipation 100mW (typical)

Pin Configuration

Green LEDs typically have two pins:

Pin Name Description
Anode (+) The longer pin, connected to the positive voltage
Cathode (-) The shorter pin, connected to ground (GND)

Usage Instructions

How to Use a Green LED in a Circuit

  1. Determine the Resistor Value: To prevent damage, always use a current-limiting resistor in series with the LED. Calculate the resistor value using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

    • (V_{supply}) is the supply voltage
    • (V_f) is the forward voltage of the LED
    • (I_f) is the desired forward current (e.g., 20mA)
  2. Connect the LED:

    • Connect the anode (+) to the positive voltage through the resistor.
    • Connect the cathode (-) to ground.
  3. Test the Circuit: Power the circuit and observe the LED emitting green light.

Example: Connecting a Green LED to an Arduino UNO

Below is an example of how to connect and control a Green LED using an Arduino UNO.

Circuit Diagram

  • Connect the anode (+) of the LED to Arduino digital pin 9 through a 220Ω resistor.
  • Connect the cathode (-) of the LED to the Arduino GND pin.

Arduino Code

// This code blinks a Green LED connected to pin 9 of the Arduino UNO.
// Ensure a 220Ω resistor is used to limit current through the LED.

const int ledPin = 9; // Pin connected to the Green LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 9 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Best Practices

  • Always use a current-limiting resistor to avoid damaging the LED.
  • Ensure the LED is connected in the correct polarity (anode to positive, cathode to ground).
  • Avoid exceeding the maximum forward current and voltage ratings.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity or no current-limiting resistor.
    • Solution: Verify the anode and cathode connections. Ensure a resistor is in series.
  2. LED is Dim:

    • Cause: Resistor value too high or insufficient supply voltage.
    • Solution: Recalculate the resistor value and check the supply voltage.
  3. LED Burns Out:

    • Cause: Excessive current due to missing or low-value resistor.
    • Solution: Always use a resistor with an appropriate value to limit current.
  4. Flickering LED:

    • Cause: Unstable power supply or loose connections.
    • Solution: Check the power source and ensure all connections are secure.

FAQs

Q: Can I connect a Green LED directly to a 5V power supply?
A: No, you must use a current-limiting resistor to prevent excessive current from damaging the LED.

Q: How do I choose the correct resistor value for my LED?
A: Use the formula (R = \frac{V_{supply} - V_f}{I_f}), where (V_f) is the forward voltage and (I_f) is the desired forward current.

Q: Can I use a Green LED with a 3.3V microcontroller?
A: Yes, as long as you calculate and use an appropriate resistor to limit the current.

Q: Why is my LED glowing faintly even when it’s off?
A: This could be due to leakage current or a floating pin. Ensure the control pin is set to LOW or connected to ground.
