How to Use 4 Pack 18650 Battery Holder: Examples, Pinouts, and Specs

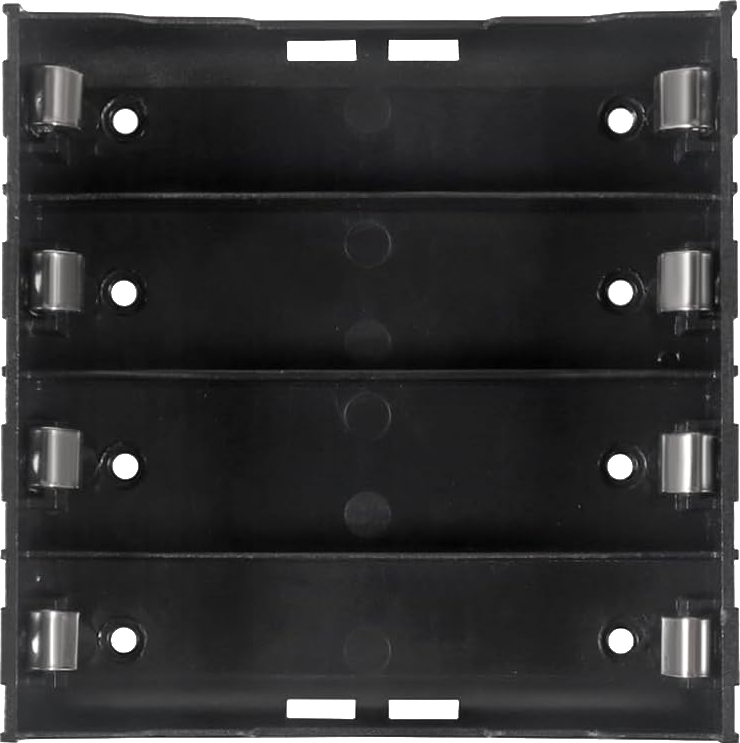

The 4 Pack 18650 Battery Holder (Manufacturer: Generic, Part ID: 4 Slot 18650) is a compact and durable holder designed to securely house up to four 18650 lithium-ion batteries. It provides a convenient and reliable way to connect batteries in series or parallel configurations, making it ideal for powering a wide range of electronic circuits and devices.

• Power supply for DIY electronics projects
• Battery packs for robotics and IoT devices
• Portable power banks
• Renewable energy storage systems
• Prototyping and testing circuits requiring 18650 batteries

The following table outlines the key technical details of the 4 Pack 18650 Battery Holder:

The holder has two primary terminals for electrical connections: Positive (+) and Negative (-). The configuration depends on how the batteries are arranged (series or parallel). Below is a table describing the terminals:

Note: Ensure proper polarity when connecting the batteries to avoid damage to the holder or connected circuits.

1. Insert Batteries:

   • Place up to four 18650 batteries into the holder, ensuring correct polarity. The positive terminal of each battery should align with the "+" marking on the holder, and the negative terminal should align with the "-" marking.

2. Choose Configuration:

   • For series configuration, connect the positive and negative terminals of the holder to your circuit. This will combine the voltages of all batteries (e.g., 4 x 3.7V = 14.8V nominal).
   • For parallel configuration, modify the wiring to connect all positive terminals together and all negative terminals together. This will maintain the voltage of a single battery (3.7V nominal) while increasing the current capacity.

3. Connect to Circuit:

   • Use wires or connectors to attach the holder's terminals to your circuit. Ensure secure and insulated connections to prevent short circuits.

4. Test the Output:

   • Use a multimeter to verify the output voltage and polarity before powering your circuit.

• Battery Matching: Use batteries of the same type, capacity, and charge level to ensure balanced performance and avoid overloading individual cells.
• Heat Management: Avoid prolonged use at high currents, as this may cause the holder or batteries to overheat.
• Polarity Check: Double-check the polarity of the batteries and connections to prevent damage to the holder or connected devices.
• Insulation: Ensure all exposed terminals and wires are insulated to prevent accidental short circuits.
• Battery Protection: Use batteries with built-in protection circuits or add an external battery management system (BMS) for safety.

The 4 Pack 18650 Battery Holder can be used to power an Arduino UNO. Below is an example of how to connect it:

1. Insert four 18650 batteries in series (14.8V nominal output).
2. Use a DC-DC step-down converter to reduce the voltage to 5V.
3. Connect the output of the step-down converter to the Arduino UNO's 5V and GND pins.

// Example code to blink an LED using power from the 18650 battery holder
// Ensure the step-down converter provides a stable 5V output to the Arduino UNO

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Batteries are inserted incorrectly or are discharged.
   • Solution: Check the polarity of the batteries and ensure they are fully charged.

2. Overheating:

   • Cause: Excessive current draw or poor-quality batteries.
   • Solution: Use batteries with appropriate current ratings and avoid exceeding the holder's current capacity.

3. Loose Connections:

   • Cause: Poor contact between the batteries and holder terminals.
   • Solution: Ensure the batteries are securely seated and the terminals are clean.

4. Short Circuit:

   • Cause: Exposed wires or incorrect connections.
   • Solution: Insulate all connections and verify the wiring before powering the circuit.

Q: Can I use fewer than four batteries in the holder?
A: Yes, but the output voltage will be lower, depending on the number of batteries and their configuration. Ensure proper placement to maintain electrical continuity.

Q: Is the holder waterproof?
A: No, the holder is not waterproof. Avoid exposing it to moisture or liquids.

Q: Can I use this holder with rechargeable and non-rechargeable batteries?
A: The holder is designed for 18650 lithium-ion batteries, which are rechargeable. Non-rechargeable batteries are not recommended.

Q: How do I wire the holder for parallel configuration?
A: Connect all positive terminals together and all negative terminals together. This requires additional wiring and is not the default configuration of the holder.

By following this documentation, you can safely and effectively use the 4 Pack 18650 Battery Holder in your projects.
