How to Use HLK-5M05: Examples, Pinouts, and Specs

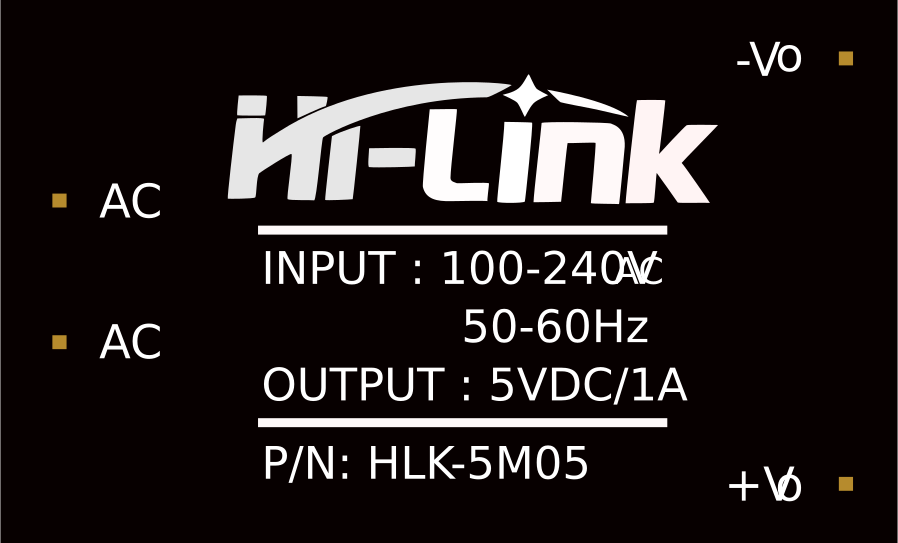

Image of HLK-5M05Design with HLK-5M05 in Cirkit Designer

Introduction

The HLK-5M05 is a compact and efficient AC-DC power module designed to convert a wide input voltage range of 85-265V AC into a stable 5V DC output. With a maximum power output of 5W, this module is ideal for powering low-power electronic devices and embedded systems. Its small form factor and high reliability make it a popular choice for applications requiring a compact and efficient power supply solution.

Explore Projects Built with HLK-5M05

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino Nano-Based Wireless Joystick and Motion Controller: A project utilizing HLK-5M05 in a practical application
Arduino Nano-Based Wireless Joystick and Motion Controller

This circuit features an Arduino Nano microcontroller interfaced with an HC-05 Bluetooth module, an MPU-6050 accelerometer/gyroscope, and a KY-023 Dual Axis Joystick Module. The Arduino Nano is powered by a 9V battery through a rocker switch and communicates with the HC-05 for Bluetooth connectivity, reads joystick positions from the KY-023 module via analog inputs, and communicates with the MPU-6050 over I2C to capture motion data. The circuit is likely designed for wireless control and motion sensing applications, such as a remote-controlled robot or a game controller.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

The HLK-5M05 is designed to meet the needs of a wide range of applications. Below are its key technical specifications:

Parameter Value
Input Voltage Range 85-265V AC
Output Voltage 5V DC
Output Power 5W
Output Current 1A (maximum)
Efficiency ≥ 70%
Operating Temperature -25°C to +60°C
Storage Temperature -40°C to +80°C
Dimensions 37mm x 18mm x 15mm
Isolation Voltage 3000V AC
Protection Features Overload, overvoltage, short-circuit protection

Pin Configuration and Descriptions

The HLK-5M05 module has six pins, as described in the table below:

Pin Number Pin Name Description
1 AC(L) Live input for AC voltage (85-265V AC)
2 AC(N) Neutral input for AC voltage
3 GND Ground connection for the DC output
4 +5V Positive 5V DC output
5 NC Not connected (leave unconnected in the circuit)
6 NC Not connected (leave unconnected in the circuit)

Usage Instructions

How to Use the HLK-5M05 in a Circuit

  1. Input Connections: Connect the AC(L) and AC(N) pins to the live and neutral lines of the AC power source, respectively. Ensure proper insulation and safety precautions when handling high-voltage AC connections.
  2. Output Connections: Connect the +5V pin to the positive terminal of your load and the GND pin to the ground terminal of your load.
  3. Mounting: Secure the module on a PCB or enclosure using appropriate mounting techniques. Ensure adequate spacing and insulation to prevent short circuits.
  4. Filtering: For improved performance and reduced noise, it is recommended to add input and output capacitors:
    • Input: Use a 0.1µF ceramic capacitor and a 10µF electrolytic capacitor.
    • Output: Use a 0.1µF ceramic capacitor and a 470µF electrolytic capacitor.

Important Considerations and Best Practices

Example: Using HLK-5M05 with an Arduino UNO

The HLK-5M05 can be used to power an Arduino UNO by providing a stable 5V DC output. Below is an example circuit and code:

Circuit Connections

  1. Connect the AC(L) and AC(N) pins to the AC power source.
  2. Connect the +5V pin of the HLK-5M05 to the 5V pin of the Arduino UNO.
  3. Connect the GND pin of the HLK-5M05 to the GND pin of the Arduino UNO.

Example Code

// Example code to blink an LED using Arduino UNO powered by HLK-5M05

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage

    • Cause: Incorrect input connections or no AC power supply.
    • Solution: Verify that the AC(L) and AC(N) pins are connected to a live AC power source.
  2. Output Voltage Fluctuations

    • Cause: Insufficient filtering or unstable input voltage.
    • Solution: Add recommended input and output capacitors for filtering.
  3. Module Overheating

    • Cause: Overloading or insufficient ventilation.
    • Solution: Ensure the load does not exceed 1A and provide adequate ventilation.
  4. Short Circuit Protection Triggered

    • Cause: Output terminals are shorted.
    • Solution: Disconnect the module, resolve the short circuit, and reconnect.

FAQs

  1. Can the HLK-5M05 be used with a 12V DC input?

    • No, the HLK-5M05 is designed for AC input only (85-265V AC). It cannot operate with a DC input.
  2. Is the module safe for use in consumer electronics?

    • Yes, the HLK-5M05 is designed with safety features such as overload, overvoltage, and short-circuit protection, making it suitable for consumer electronics.
  3. Can I use the HLK-5M05 to power multiple devices?

    • Yes, as long as the total current draw does not exceed 1A, you can use the module to power multiple devices.
  4. What precautions should I take when using the module?

    • Ensure proper insulation, avoid touching live connections, and do not exceed the module's rated specifications.
