How to Use SparkFun IMU Breakout ICM-20948: Examples, Pinouts, and Specs

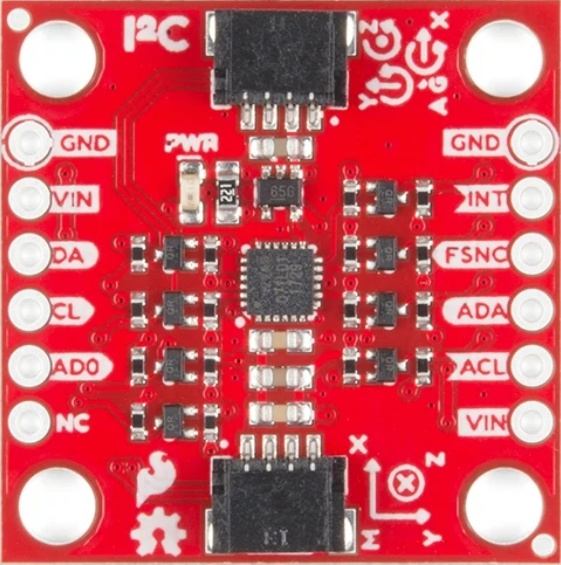

The SparkFun IMU Breakout ICM-20948 is a compact and versatile inertial measurement unit (IMU) that integrates a 9-axis motion sensor. It combines a 3-axis gyroscope, a 3-axis accelerometer, and a 3-axis magnetometer into a single package, enabling precise motion tracking and orientation detection. This component is ideal for applications requiring motion sensing, such as robotics, drones, wearable devices, and gaming controllers.

• Robotics for motion tracking and navigation
• Drones for stabilization and orientation control
• Wearable devices for activity monitoring
• Gaming controllers for motion-based input
• Industrial equipment for vibration analysis and monitoring

The following table outlines the key technical specifications of the SparkFun IMU Breakout ICM-20948:

The SparkFun IMU Breakout ICM-20948 features the following pinout:

1. Power Supply: Connect the 3.3V pin to a 3.3V power source and the GND pin to ground.
2. Communication Interface: Choose between I²C or SPI communication:
   • For I²C, connect the SDA and SCL pins to the corresponding I²C lines on your microcontroller.
   • For SPI, connect the CS, SDA (MOSI), SCL (SCK), and optionally the INT pin for interrupt handling.
3. Pull-Up Resistors: If using I²C, ensure pull-up resistors (typically 4.7kΩ) are present on the SDA and SCL lines.
4. Interrupts: Optionally, connect the INT pin to a GPIO pin on your microcontroller to handle interrupts for motion detection or data-ready signals.

• Voltage Levels: Ensure the logic levels of your microcontroller match the 1.8V logic level of the ICM-20948. Use a level shifter if necessary.
• Magnetometer Calibration: Perform a magnetometer calibration to account for environmental magnetic interference.
• Data Rates: Configure the data output rates appropriately to balance performance and power consumption.
• Mounting: Secure the breakout board firmly to minimize vibrations and improve measurement accuracy.

Below is an example of how to interface the SparkFun IMU Breakout ICM-20948 with an Arduino UNO using I²C:

#include <Wire.h>
#include <SparkFun_ICM-20948_ArduinoLibrary.h> // Include the SparkFun library

ICM_20948_I2C myICM; // Create an ICM-20948 object

void setup() {
  Serial.begin(115200); // Initialize serial communication
  Wire.begin();         // Initialize I²C communication

  // Initialize the IMU
  if (myICM.begin(Wire, 0x69) != ICM_20948_Stat_Ok) {
    Serial.println("IMU initialization failed!");
    while (1); // Halt if initialization fails
  }
  Serial.println("IMU initialized successfully!");
}

void loop() {
  // Check if new data is available
  if (myICM.dataReady()) {
    myICM.getAGMT(); // Read accelerometer, gyroscope, and magnetometer data

    // Print accelerometer data
    Serial.print("Accel X: ");
    Serial.print(myICM.accX());
    Serial.print(" Y: ");
    Serial.print(myICM.accY());
    Serial.print(" Z: ");
    Serial.println(myICM.accZ());

    // Print gyroscope data
    Serial.print("Gyro X: ");
    Serial.print(myICM.gyrX());
    Serial.print(" Y: ");
    Serial.print(myICM.gyrY());
    Serial.print(" Z: ");
    Serial.println(myICM.gyrZ());

    // Print magnetometer data
    Serial.print("Mag X: ");
    Serial.print(myICM.magX());
    Serial.print(" Y: ");
    Serial.print(myICM.magY());
    Serial.print(" Z: ");
    Serial.println(myICM.magZ());

    delay(100); // Delay for readability
  }
}

1. IMU Not Detected:

   • Ensure the I²C address (default 0x69) matches the configuration in your code.
   • Verify the SDA and SCL connections and check for proper pull-up resistors.
   • Confirm the power supply voltage is 3.3V.

2. Incorrect or No Data:

   • Check for loose or incorrect wiring.
   • Ensure the IMU is properly mounted to avoid excessive vibrations.
   • Perform a magnetometer calibration if magnetic readings are inaccurate.

3. Interrupts Not Triggering:

   • Verify the INT pin is connected to a GPIO pin on your microcontroller.
   • Check the interrupt configuration in your code.

• Use a logic level shifter if your microcontroller operates at 5V logic levels.
• For SPI communication, ensure the CS pin is correctly configured and pulled low during communication.
• Refer to the SparkFun ICM-20948 datasheet for advanced configuration options and register settings.

By following this documentation, you can effectively integrate the SparkFun IMU Breakout ICM-20948 into your projects for precise motion sensing and orientation tracking.
