How to Use 9V Battery: Examples, Pinouts, and Specs

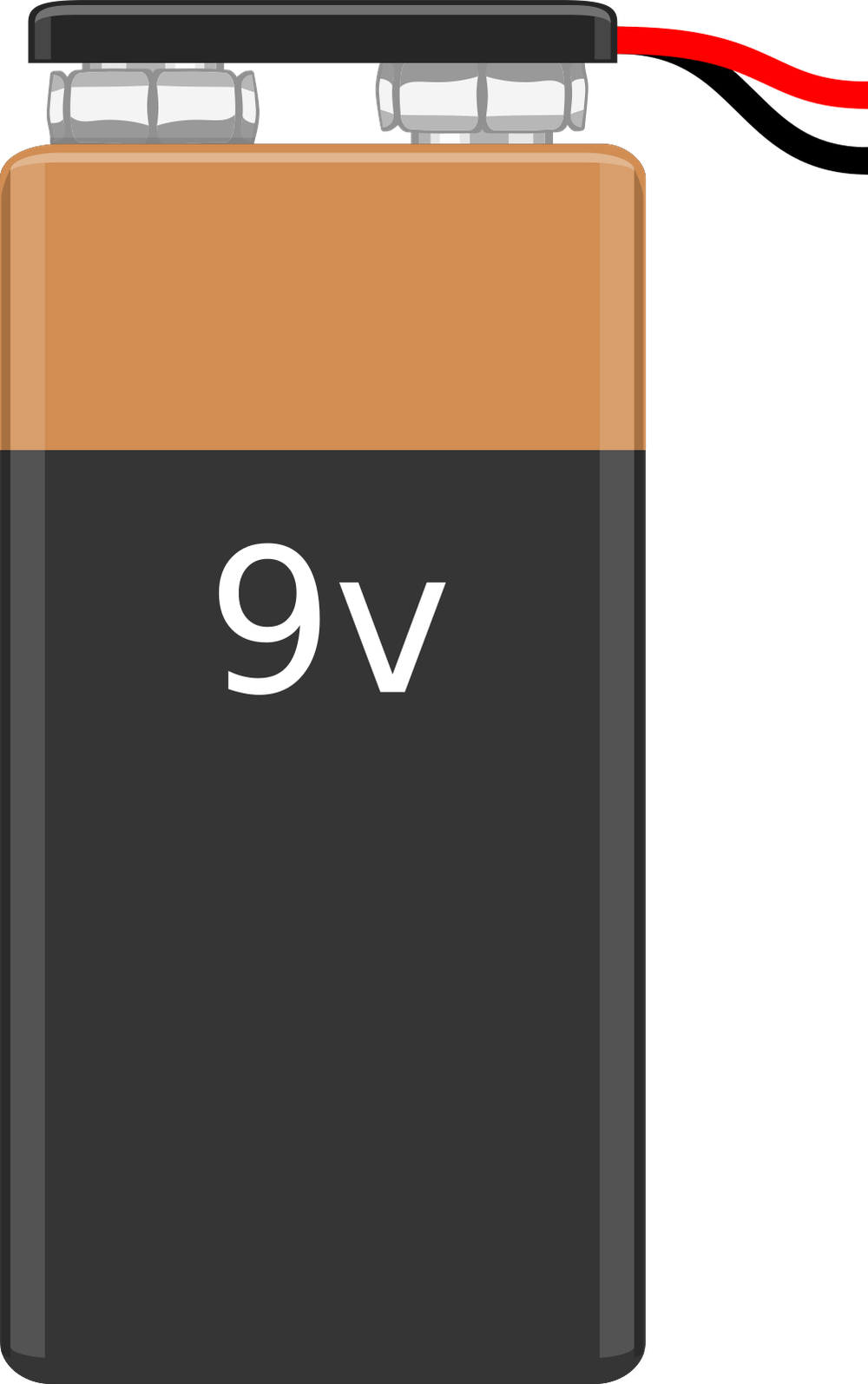

The Duracell 9V Battery (Part ID: 9V) is a compact and reliable power source that provides a nominal voltage of 9 volts. It is widely used in portable electronic devices, small appliances, and various electronic circuits. Known for its long-lasting performance and durability, this battery is a staple in applications requiring a stable and portable power supply.

• Smoke detectors and fire alarms
• Portable radios and audio devices
• Remote controls and wireless transmitters
• DIY electronics and prototyping projects
• Backup power for small circuits

The following table outlines the key technical details of the Duracell 9V Battery:

The 9V battery features two terminals:

1. Connect the Terminals: Use a 9V battery snap connector to securely attach the battery to your circuit. Ensure the positive terminal is connected to the positive rail of your circuit and the negative terminal to the ground.
2. Check Polarity: Always verify the polarity before connecting the battery to avoid damage to your components.
3. Powering Devices: The 9V battery can directly power low-current devices or be used with a voltage regulator for circuits requiring lower voltages (e.g., 5V or 3.3V).

• Avoid Short Circuits: Ensure the terminals do not come into direct contact with each other, as this can cause overheating or damage.
• Monitor Battery Life: Replace the battery when the voltage drops below 7V to maintain optimal performance in your devices.
• Storage: Store the battery in a cool, dry place to maximize shelf life.
• Disposal: Dispose of used batteries responsibly, following local recycling guidelines.

The 9V battery can be used to power an Arduino UNO via its DC barrel jack or VIN pin. Below is an example of connecting the battery and running a simple LED blink program:

1. Connect the positive terminal of the 9V battery to the Arduino's VIN pin (or DC barrel jack).
2. Connect the negative terminal to the Arduino's GND pin.
3. Attach an LED to pin 13 with a 220-ohm resistor in series.

// Simple LED Blink Program
// This program blinks an LED connected to pin 13 of the Arduino UNO.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can I recharge a Duracell 9V battery?

   • No, standard Duracell 9V batteries are not rechargeable. Use only designated rechargeable 9V batteries with a compatible charger.

2. What is the maximum current output of the 9V battery?

   • The maximum current depends on the load and battery chemistry. For alkaline 9V batteries, it is typically around 500-600 mA for short durations.

3. Can I use the 9V battery for high-power devices?

   • The 9V battery is best suited for low-power devices. For high-power applications, consider alternative power sources like lithium-ion batteries.

4. How do I safely dispose of a used 9V battery?

   • Follow local recycling guidelines for battery disposal. Many electronics stores and recycling centers accept used batteries.

By following this documentation, you can effectively use the Duracell 9V Battery in your projects and ensure optimal performance and safety.
