How to Use DS1302V0: Examples, Pinouts, and Specs

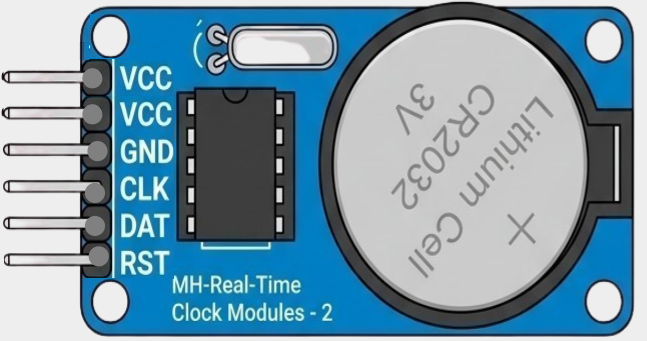

The DS1302V0 is a real-time clock (RTC) chip designed to keep track of the current time and date, including seconds, minutes, hours, day, date, month, and year. It features a serial interface for communication with microcontrollers and includes a battery backup to ensure timekeeping continues during power outages. This makes it an essential component for applications requiring accurate timekeeping, even in the absence of a primary power source.

• Digital clocks and timers
• Data loggers
• Home automation systems
• Embedded systems requiring time-stamped data
• Alarm systems and scheduling devices

• Operating Voltage: 2.0V to 5.5V
• Current Consumption:
  • 300 nA (typical) at 2.0V in battery backup mode
• Communication Protocol: Serial (3-wire interface)
• Timekeeping Accuracy: ±2 minutes per month at 25°C
• Battery Backup: Supports external battery for uninterrupted operation
• Operating Temperature Range: -40°C to +85°C
• Clock Format: 24-hour or 12-hour with AM/PM indication
• Memory: 31 bytes of user-accessible RAM

The DS1302V0 has an 8-pin configuration. Below is the pinout and description:

1. Power Supply: Connect the primary power supply to the VCC1 pin and the backup battery to the VCC2 pin. Ensure the voltage levels are within the specified range.
2. Crystal Oscillator: Connect a 32.768 kHz crystal between the X1 and X2 pins. Avoid using capacitors or resistors in parallel with the crystal, as the DS1302V0 has an internal oscillator circuit.
3. Microcontroller Interface: Connect the RST, I/O, and SCLK pins to the corresponding GPIO pins of your microcontroller. Use pull-up resistors if necessary.
4. Communication: Use the 3-wire serial interface (RST, I/O, SCLK) to communicate with the chip. The RST pin must be held high during communication.

• Use a decoupling capacitor (e.g., 0.1 µF) near the VCC1 pin to stabilize the power supply.
• Ensure the backup battery voltage is sufficient to maintain timekeeping during power outages.
• Avoid excessive noise on the SCLK line, as it may cause communication errors.
• When using the chip with a microcontroller, ensure the logic levels are compatible.

Below is an example of how to interface the DS1302V0 with an Arduino UNO to read and set the time.

#include <DS1302.h> // Include the DS1302 library

// Define the DS1302 pins connected to the Arduino
#define RST_PIN 4   // Reset pin connected to Arduino pin 4
#define IO_PIN 5    // I/O pin connected to Arduino pin 5
#define SCLK_PIN 6  // Serial clock pin connected to Arduino pin 6

// Create an instance of the DS1302 class
DS1302 rtc(RST_PIN, IO_PIN, SCLK_PIN);

void setup() {
  Serial.begin(9600); // Initialize serial communication
  rtc.halt(false);    // Start the RTC
  rtc.writeProtect(false); // Disable write protection

  // Set the date and time (Year, Month, Day, Hour, Minute, Second)
  rtc.setDateTime(2023, 10, 15, 14, 30, 0); // Example: 15th Oct 2023, 14:30:00
}

void loop() {
  // Read the current date and time
  DS1302::DateTime now = rtc.getDateTime();

  // Print the date and time to the serial monitor
  Serial.print("Date: ");
  Serial.print(now.year);
  Serial.print("-");
  Serial.print(now.month);
  Serial.print("-");
  Serial.println(now.day);

  Serial.print("Time: ");
  Serial.print(now.hour);
  Serial.print(":");
  Serial.print(now.minute);
  Serial.print(":");
  Serial.println(now.second);

  delay(1000); // Wait for 1 second before updating
}

1. RTC Not Keeping Time

   • Ensure the backup battery is properly connected and has sufficient charge.
   • Verify the crystal oscillator is correctly connected to the X1 and X2 pins.

2. Communication Errors

   • Check the connections between the microcontroller and the DS1302V0.
   • Ensure the RST pin is held high during communication.
   • Verify the microcontroller's logic levels are compatible with the DS1302V0.

3. Incorrect Time or Date

   • Double-check the code used to set the time and date.
   • Ensure the RTC is not in write-protected mode.

Q: Can the DS1302V0 operate without a backup battery?
A: Yes, but it will lose track of time during power outages. A backup battery is recommended for uninterrupted operation.

Q: What type of crystal should I use with the DS1302V0?
A: Use a 32.768 kHz crystal with a load capacitance of 6 pF to 12.5 pF.

Q: How long does the backup battery last?
A: The battery life depends on its capacity and the current consumption of the DS1302V0 in backup mode (typically 300 nA).

By following this documentation, you can effectively integrate the DS1302V0 into your projects for reliable timekeeping.
