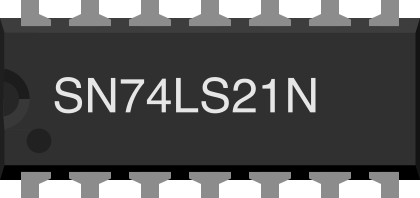

How to Use SN74LS21N: Examples, Pinouts, and Specs

The SN74LS21N is a dual 4-input NAND gate integrated circuit (IC) manufactured by Texas Instruments. It belongs to the 74LS series of TTL (Transistor-Transistor Logic) devices, which are known for their high-speed operation and low power consumption. Each of the two NAND gates in the IC accepts four inputs and produces a single output that is low (logic 0) only when all inputs are high (logic 1). This makes it a versatile component for implementing complex logic functions in digital circuits.

• Digital logic design and combinational circuits
• Signal processing and control systems
• Data communication systems
• Microcontroller-based projects
• Industrial automation and embedded systems

The SN74LS21N is housed in a 14-pin DIP package. The pinout and descriptions are as follows:

1. Power Supply: Connect the Vcc pin (Pin 13) to a regulated +5V power supply and the GND pin (Pin 6) to ground.
2. Inputs: Provide logic signals (0V for LOW, 5V for HIGH) to the input pins (1A, 1B, 1C, 1D for Gate 1; 2A, 2B, 2C, 2D for Gate 2).
3. Outputs: The output pins (1Y for Gate 1, 2Y for Gate 2) will produce a LOW signal only when all corresponding inputs are HIGH. Otherwise, the output will be HIGH.
4. Pull-Down Resistors: If any input pin is left unconnected, use a pull-down resistor to ensure proper logic levels and avoid floating inputs.
5. Bypass Capacitor: Place a 0.1µF ceramic capacitor between Vcc and GND to filter noise and stabilize the power supply.

Below is an example of connecting the SN74LS21N to an Arduino UNO to read the output of one of its NAND gates.

• Connect Pin 13 (Vcc) to the Arduino's 5V pin.
• Connect Pin 6 (GND) to the Arduino's GND pin.
• Connect inputs 1A, 1B, 1C, and 1D (Pins 1, 2, 3, 4) to Arduino digital pins 2, 3, 4, and 5, respectively.
• Connect the output 1Y (Pin 5) to Arduino digital pin 6.

// Define input pins for the NAND gate
const int inputA = 2;
const int inputB = 3;
const int inputC = 4;
const int inputD = 5;

// Define output pin for the NAND gate
const int outputY = 6;

void setup() {
  // Set input pins as outputs to drive the NAND gate
  pinMode(inputA, OUTPUT);
  pinMode(inputB, OUTPUT);
  pinMode(inputC, OUTPUT);
  pinMode(inputD, OUTPUT);

  // Set the output pin as input to read the NAND gate output
  pinMode(outputY, INPUT);

  // Initialize serial communication for debugging
  Serial.begin(9600);
}

void loop() {
  // Set inputs to HIGH (logic 1)
  digitalWrite(inputA, HIGH);
  digitalWrite(inputB, HIGH);
  digitalWrite(inputC, HIGH);
  digitalWrite(inputD, HIGH);

  // Read the output of the NAND gate
  int nandOutput = digitalRead(outputY);

  // Print the output to the Serial Monitor
  Serial.print("NAND Gate Output: ");
  Serial.println(nandOutput);

  // Add a delay for readability
  delay(1000);
}

• Ensure the supply voltage does not exceed the recommended range (4.75V to 5.25V).
• Avoid leaving input pins floating; use pull-up or pull-down resistors as needed.
• Use decoupling capacitors near the IC to reduce noise and improve stability.
• Verify the logic levels of your inputs and outputs to ensure compatibility with other components in your circuit.

1. No Output Signal:

   • Check the power supply connections (Vcc and GND).
   • Verify that all input pins are connected to valid logic levels.
   • Ensure the output pin is not shorted to ground or Vcc.

2. Incorrect Logic Output:

   • Confirm that the input signals meet the required voltage thresholds for HIGH and LOW levels.
   • Check for loose or faulty connections in the circuit.

3. Overheating:

   • Ensure the IC is not exposed to voltages beyond its maximum ratings.
   • Verify that the current drawn by the circuit does not exceed the IC's power dissipation limits.

Q1: Can the SN74LS21N operate at 3.3V?
A1: No, the SN74LS21N is designed for a supply voltage range of 4.75V to 5.25V. Operating it at 3.3V may result in unreliable performance.

Q2: What happens if one input is left unconnected?
A2: Floating inputs can cause unpredictable behavior. Always connect unused inputs to a defined logic level (HIGH or LOW) using pull-up or pull-down resistors.

Q3: Can I use the SN74LS21N for high-frequency applications?
A3: Yes, the SN74LS21N has a typical propagation delay of 9ns, making it suitable for high-speed digital circuits.

Q4: Is the SN74LS21N compatible with CMOS logic levels?
A4: The SN74LS21N is a TTL device and may not be directly compatible with CMOS logic levels. Use level shifters if interfacing with CMOS devices.
