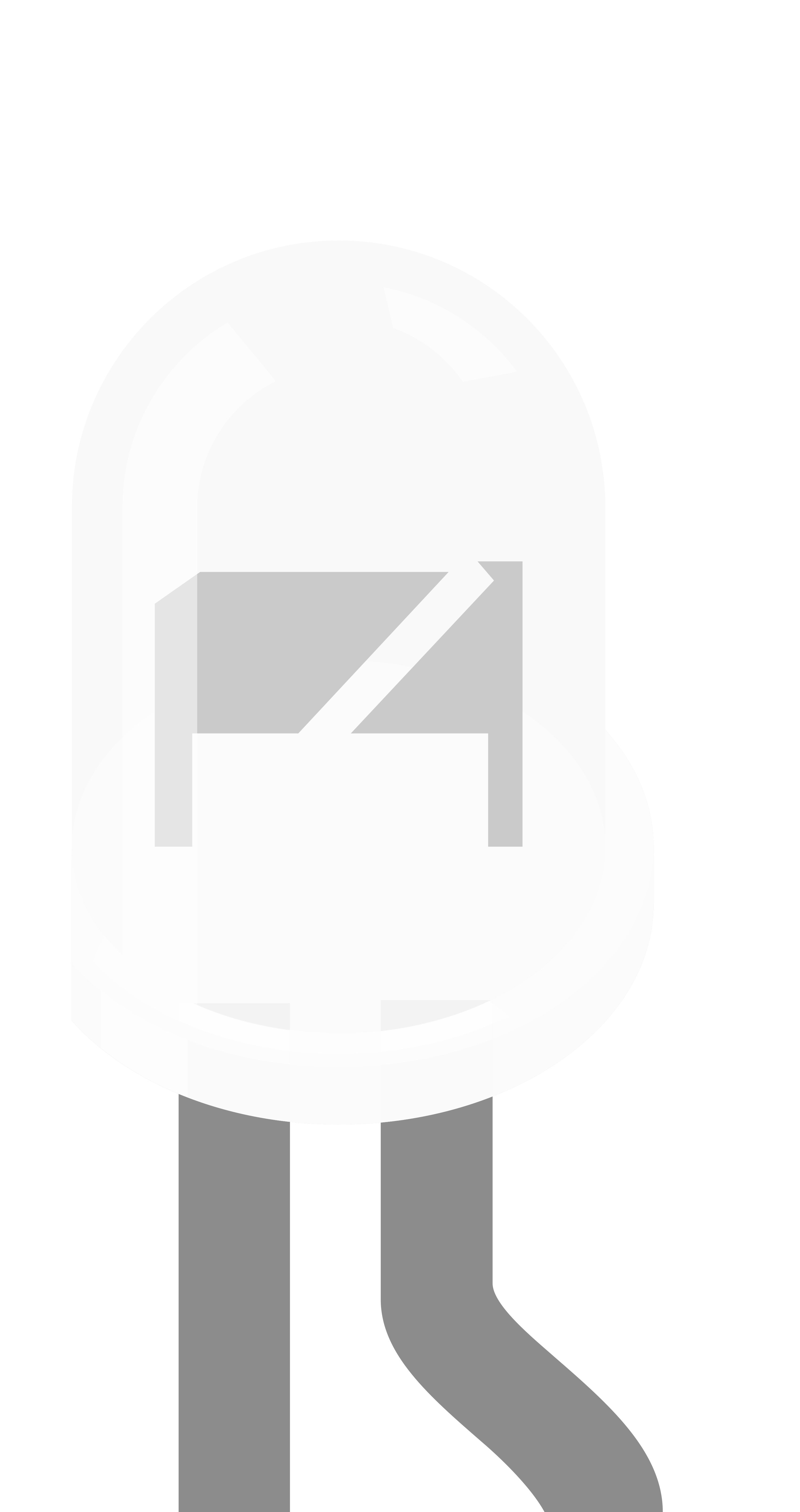

Image of LED: Two Pin (white)
Cirkit Designer LogoDesign with LED: Two Pin (white) in Cirkit Designer

Introduction

A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current flows through it. The two-pin white LED is a versatile component that produces bright white light, making it ideal for a wide range of applications. It is commonly used for power or status indication, backlighting, decorative lighting, and in electronic circuits requiring visual feedback.

White LEDs are particularly valued for their high brightness and energy efficiency. They are easy to use and integrate into circuits, making them a staple in both hobbyist and professional electronics projects.

Explore Projects Built with LED: Two Pin (white)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
LED Array with Inductive Power Transfer
Image of Wind Mill: A project utilizing LED: Two Pin (white) in a practical application
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Blinking LED Circuit
Image of led: A project utilizing LED: Two Pin (white) in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The Arduino's digital pin D13 is connected to the LED's anode, and the LED's cathode is connected to the Arduino's ground (GND). The embedded code on the Arduino is programmed to blink the LED on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Blinking LED Circuit
Image of led : A project utilizing LED: Two Pin (white) in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The Arduino's digital pin D13 is connected to the LED's anode, and the LED's cathode is connected to the Arduino's ground (GND). The embedded code on the Arduino is programmed to blink the LED on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled Red LED Blinker
Image of first arduino test: A project utilizing LED: Two Pin (white) in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The LED's cathode is connected to the Arduino's GND pin, and its anode is connected to digital pin D13. The provided code for the Arduino is empty, indicating that the LED's behavior (such as blinking) is not defined and would need to be implemented in the loop function of the Arduino code.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LED: Two Pin (white)

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Wind Mill: A project utilizing LED: Two Pin (white) in a practical application
LED Array with Inductive Power Transfer
The circuit consists of multiple red two-pin LEDs connected in parallel, with all cathodes tied together and all anodes tied together. A copper coil is also connected in parallel with the LEDs. There is no control circuitry or power regulation components indicated, and no embedded code provided, suggesting this is a simple illumination circuit possibly intended for inductive power transfer given the presence of the copper coil.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of led: A project utilizing LED: Two Pin (white) in a practical application
Arduino UNO Controlled Blinking LED Circuit
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The Arduino's digital pin D13 is connected to the LED's anode, and the LED's cathode is connected to the Arduino's ground (GND). The embedded code on the Arduino is programmed to blink the LED on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of led : A project utilizing LED: Two Pin (white) in a practical application
Arduino UNO Blinking LED Circuit
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The Arduino's digital pin D13 is connected to the LED's anode, and the LED's cathode is connected to the Arduino's ground (GND). The embedded code on the Arduino is programmed to blink the LED on and off at one-second intervals.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of first arduino test: A project utilizing LED: Two Pin (white) in a practical application
Arduino UNO Controlled Red LED Blinker
This circuit consists of an Arduino UNO microcontroller connected to a red two-pin LED. The LED's cathode is connected to the Arduino's GND pin, and its anode is connected to digital pin D13. The provided code for the Arduino is empty, indicating that the LED's behavior (such as blinking) is not defined and would need to be implemented in the loop function of the Arduino code.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details for a standard two-pin white LED:

Parameter Value
Forward Voltage (Vf) 2.8V to 3.6V
Forward Current (If) 20mA (typical)
Maximum Current (Imax) 30mA
Reverse Voltage (Vr) 5V (maximum)
Luminous Intensity 4,000 to 10,000 mcd (typical)
Viewing Angle 20° to 30°
Operating Temperature -40°C to +85°C
Package Type 5mm or 3mm (commonly used)

Pin Configuration

The two-pin white LED has a simple pinout:

Pin Name Description
Anode (+) Positive terminal; connect to the power supply or resistor.
Cathode (-) Negative terminal; connect to ground.

Note: The longer leg of the LED is the anode (+), and the shorter leg is the cathode (-). If the legs are trimmed, the flat edge on the LED casing indicates the cathode.

Usage Instructions

How to Use the LED in a Circuit

  1. Determine the Resistor Value: LEDs require a current-limiting resistor to prevent damage. Use Ohm's Law to calculate the resistor value: [ R = \frac{V_{supply} - V_f}{I_f} ]

    • (V_{supply}): Supply voltage
    • (V_f): Forward voltage of the LED
    • (I_f): Desired forward current (typically 20mA)

    For example, if (V_{supply} = 5V) and (V_f = 3.2V), the resistor value is: [ R = \frac{5V - 3.2V}{0.02A} = 90\Omega ] Use the nearest standard resistor value (e.g., 100Ω).

  2. Connect the LED:

    • Connect the anode (+) to the positive terminal of the power supply through the resistor.
    • Connect the cathode (-) to the ground.
  3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED should emit bright white light.

Important Considerations and Best Practices

  • Polarity Matters: Ensure the anode and cathode are connected correctly. Reversing the polarity may damage the LED.
  • Use a Resistor: Never connect an LED directly to a power source without a resistor, as this can cause excessive current flow and destroy the LED.
  • Avoid Overheating: Operate the LED within its specified current and voltage limits to prevent overheating.
  • Test Before Soldering: If soldering the LED into a circuit, test it first to ensure proper functionality.

Example: Connecting a White LED to an Arduino UNO

Below is an example of how to connect and control a white LED using an Arduino UNO:

Circuit Setup

  • Connect the anode (+) of the LED to a 220Ω resistor.
  • Connect the other end of the resistor to Arduino pin 9.
  • Connect the cathode (-) of the LED to the Arduino GND pin.

Arduino Code

// Example code to blink a white LED connected to pin 9 of Arduino UNO

const int ledPin = 9; // Define the pin connected to the LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Note: Adjust the resistor value based on your power supply voltage and LED specifications.

Troubleshooting and FAQs

Common Issues

  1. LED Does Not Light Up:

    • Cause: Incorrect polarity.

    • Solution: Ensure the anode is connected to the positive voltage and the cathode to ground.

    • Cause: No current-limiting resistor or incorrect resistor value.

    • Solution: Verify the resistor value and connections.

  2. LED Flickers or is Dim:

    • Cause: Insufficient current or loose connections.
    • Solution: Check the resistor value and ensure all connections are secure.
  3. LED Burns Out Quickly:

    • Cause: Excessive current due to missing or low-value resistor.
    • Solution: Always use a resistor with the correct value to limit current.
  4. LED Works Intermittently:

    • Cause: Faulty LED or poor soldering.
    • Solution: Replace the LED or re-solder the connections.

FAQs

Q: Can I connect multiple LEDs in series or parallel?
A: Yes, you can connect LEDs in series or parallel, but ensure each LED receives the correct voltage and current. For series connections, sum the forward voltages of all LEDs. For parallel connections, use individual resistors for each LED.

Q: What happens if I exceed the maximum current rating?
A: Exceeding the maximum current rating can permanently damage the LED. Always use a current-limiting resistor to prevent this.

Q: Can I use a white LED with a 3.3V power supply?
A: Yes, but ensure the forward voltage of the LED is less than or equal to the supply voltage. Use an appropriate resistor to limit the current.

By following these guidelines, you can effectively use a two-pin white LED in your electronic projects.
