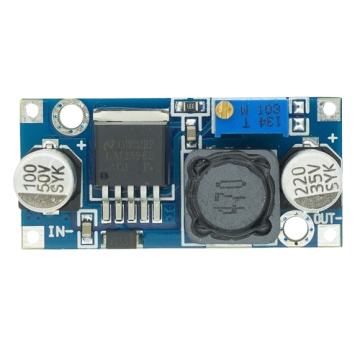

Image of step down
Cirkit Designer LogoDesign with step down in Cirkit Designer

Introduction

A step down converter, also known as a buck converter, is a type of DC-DC converter that reduces voltage from a higher level to a lower level while increasing current. It is widely used in electronic circuits to efficiently power devices that require a lower voltage than the input supply. The step down converter operates by switching a transistor on and off at high frequencies, storing energy in an inductor, and then releasing it at a controlled lower voltage.

Explore Projects Built with step down

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing step down in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing step down in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Robotic System with Stepper Motors and IR Sensors
Image of FYP: A project utilizing step down in a practical application
This circuit is a control system powered by a 12V to 5V step-down converter, featuring an Arduino Mega 2560 microcontroller that interfaces with various sensors (IR sensors, limit switch), actuators (servos, stepper motors), and a 20x4 LCD display. The system is designed to monitor inputs from sensors and control outputs to motors and display information, suitable for applications like automation or robotics.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with Transformer and Bridge Rectifier
Image of BRIDGE RECTIFIER: A project utilizing step down in a practical application
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with step down

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing step down in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing step down in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of FYP: A project utilizing step down in a practical application
Arduino Mega 2560-Based Robotic System with Stepper Motors and IR Sensors
This circuit is a control system powered by a 12V to 5V step-down converter, featuring an Arduino Mega 2560 microcontroller that interfaces with various sensors (IR sensors, limit switch), actuators (servos, stepper motors), and a 20x4 LCD display. The system is designed to monitor inputs from sensors and control outputs to motors and display information, suitable for applications like automation or robotics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BRIDGE RECTIFIER: A project utilizing step down in a practical application
AC to DC Power Supply with Transformer and Bridge Rectifier
This circuit is a basic AC to DC power supply that steps down 220V AC to a lower voltage using a transformer, rectifies it to DC using a bridge rectifier made of diodes, and smooths the output with an electrolytic capacitor. A rocker switch is used to turn the power supply on and off.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers and sensors from higher voltage sources
  • Battery-powered devices to regulate voltage levels
  • Voltage regulation in renewable energy systems (e.g., solar panels)
  • Automotive electronics to step down 12V to 5V or 3.3V
  • LED drivers and portable chargers

Technical Specifications

Below are the general technical specifications for a typical step down converter. Specific values may vary depending on the model.

Key Technical Details

  • Input Voltage Range: 4.5V to 40V (varies by model)
  • Output Voltage Range: 1.25V to 37V (adjustable in most models)
  • Output Current: Up to 3A (depending on the design)
  • Efficiency: Up to 90% or higher
  • Switching Frequency: 150 kHz to 1 MHz
  • Operating Temperature: -40°C to +85°C

Pin Configuration and Descriptions

The following table describes the typical pinout for a step down converter module (e.g., LM2596-based module):

Pin Name Description
VIN Input voltage pin. Connect the higher voltage source here.
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides the stepped-down voltage to the load.
ADJ (optional) Adjustment pin. Used to set the output voltage (in adjustable models).

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage:
    • Connect the positive terminal of the input voltage source to the VIN pin.
    • Connect the negative terminal of the input voltage source to the GND pin.
  2. Set the Output Voltage (if adjustable):
    • Use a multimeter to measure the output voltage at the VOUT pin.
    • Adjust the potentiometer (if available) on the module to set the desired output voltage.
  3. Connect the Load:
    • Connect the positive terminal of the load to the VOUT pin.
    • Connect the negative terminal of the load to the GND pin.
  4. Power On:
    • Turn on the input voltage source and verify the output voltage with a multimeter before connecting sensitive devices.

Important Considerations and Best Practices

  • Ensure the input voltage is within the specified range of the step down converter.
  • Do not exceed the maximum current rating of the module to avoid overheating or damage.
  • Use appropriate heat sinks or cooling mechanisms if the converter operates at high currents.
  • Place decoupling capacitors near the input and output pins to reduce noise and improve stability.
  • For adjustable models, double-check the output voltage before connecting sensitive components.

Example: Using a Step Down Converter with Arduino UNO

To power an Arduino UNO (which requires 5V) from a 12V source, follow these steps:

  1. Connect the 12V source to the VIN and GND pins of the step down converter.
  2. Adjust the output voltage to 5V using the potentiometer.
  3. Connect the VOUT pin of the converter to the Arduino's 5V pin and GND to GND.

Here is an example Arduino code to blink an LED while powered by the step down converter:

// Blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered by the step down converter set to 5V

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage to ensure it is within the specified range.
    • Verify all connections, especially VIN and GND.
    • Inspect the module for physical damage or loose components.
  2. Output Voltage is Incorrect:

    • For adjustable models, recheck the potentiometer setting.
    • Ensure the load does not exceed the current rating of the converter.
  3. Overheating:

    • Reduce the load current if it exceeds the module's capacity.
    • Add a heat sink or improve ventilation around the module.
  4. Noise or Instability in Output Voltage:

    • Add decoupling capacitors (e.g., 10µF and 0.1µF) near the input and output pins.
    • Ensure proper grounding and minimize wire lengths.

FAQs

Q: Can I use a step down converter to power a Raspberry Pi?
A: Yes, but ensure the output voltage is set to 5V and the converter can supply at least 2.5A for stable operation.

Q: What happens if the input voltage drops below the specified range?
A: The converter may stop functioning or output an unstable voltage. Always ensure the input voltage remains within the specified range.

Q: Can I use a step down converter with an AC input?
A: No, step down converters are designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using the converter.

Q: How do I calculate the efficiency of the step down converter?
A: Efficiency (%) = (Output Power / Input Power) × 100. Measure the input and output voltages and currents to calculate power.
